| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |

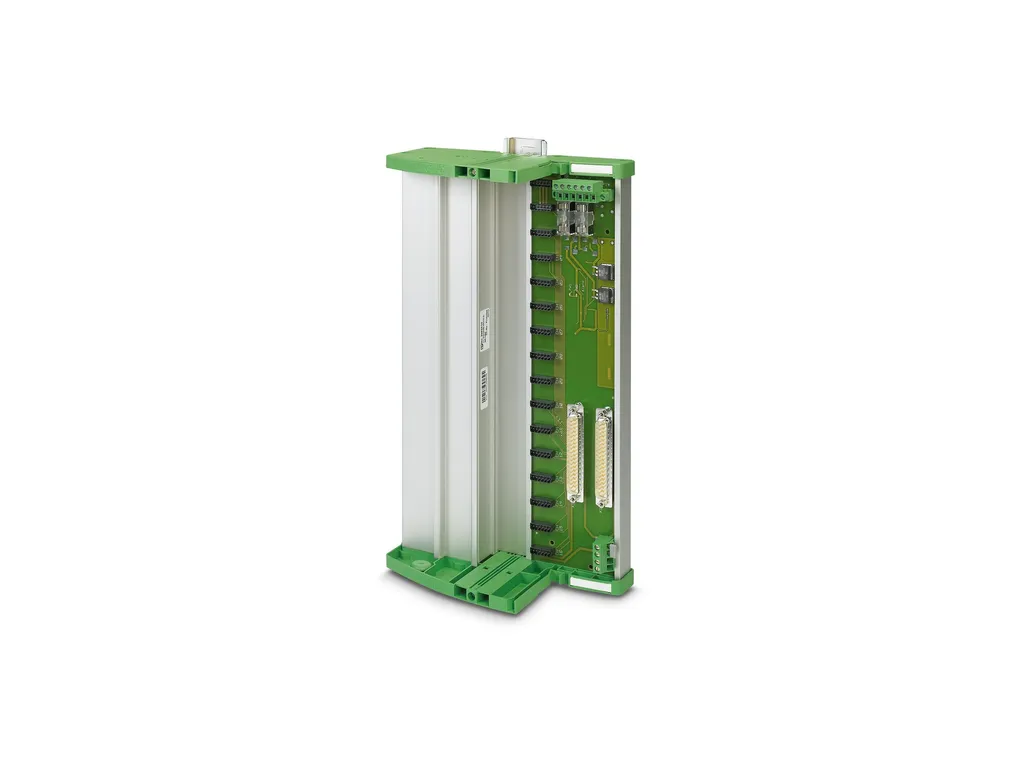

| Product properties | Product type: Module carrier Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances Insulation: Basic insulation |
| Electrical properties | Max. permissible current: 1 A (Signal/channel) Nominal voltage UN: < 50 VÃDC (Per signal/channel) Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV Supported controller universal Suitable I/O card: universal Supply Designation: Device supply Fuse: 2x 2.5 A on PCB, slow-blow (replaceable) Input voltage: 24 VÃDC Input voltage range: 21.1 VÃDC ... 26.4 VÃDC Input current: ââ°¤ 2 A Redundant supply: yes, decoupled from diodes Polarization and surge protection: Yes Output name: Switching output Contact switching type: 1 N/C contact (alarm = open) |
| Connection data | Power supply Connection method: Screw connection Stripping length: 7 mm Number of connections: 1 Number of positions: 6 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Controller level Connection method: D-SUB pin strip Number of connections: 2 Number of positions: 37 |
| Signaling | Status display: 2 x red LED (error) 2x green LEDs (PWR1 and PWR2) |
| Dimensions | Width: 304 mm Height: 170 mm Depth: 159.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m Permissible humidity (operation): 5 % ... 95 % (non-condensing) Shock: 15g, according to IECý60068-2-27 Vibration (operation): 2g, according to IEC 60068-2-6 |
| Approvals | UL, USA/Canada Identification: UL 61010 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: No end clamp Mounting position: vertical, horizontal |
