| Notes | General: 2318457ÃVIP-CAB-FLK14-0,14/...Ã:Ã<Ã3Ãm For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |

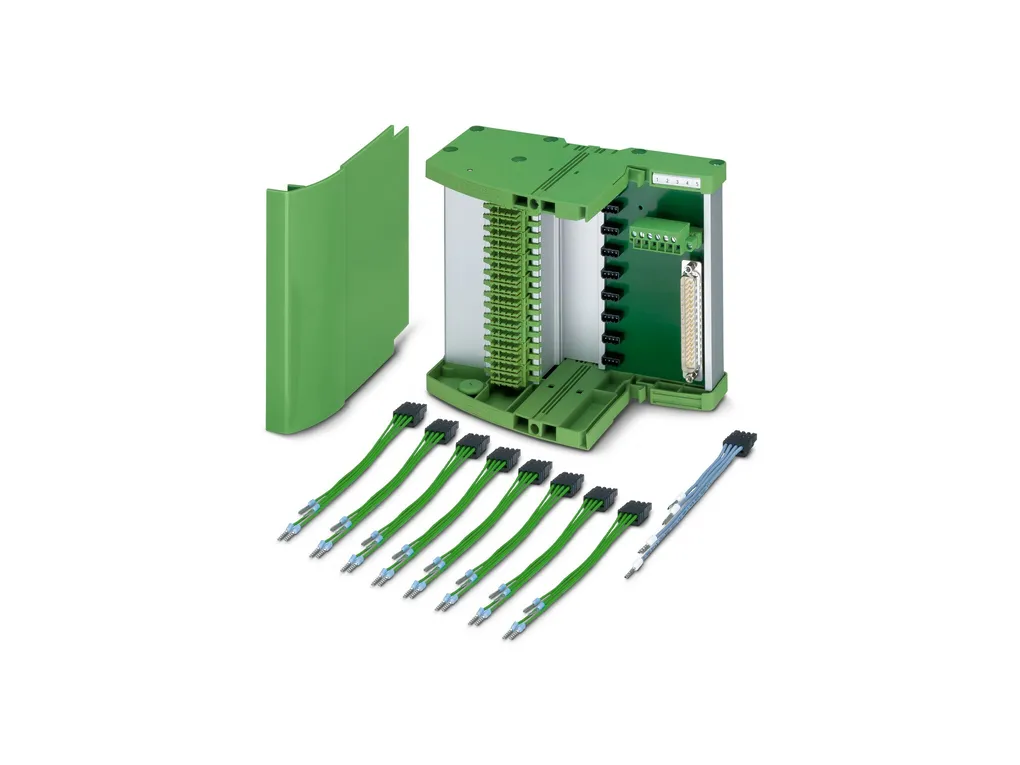

| Product properties | Product type: Module carrier Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances Insulation: Basic insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Max. permissible current: 23 mA (Signal/channel) Nominal voltage UN: < 30 VÃDC (Per signal/channel) Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV Supported controller universal Suitable I/O card: universal Supply Designation: Power module Note: Power supply via 2902958 MINI MCR-SL-PTB-FM power terminal and 2902961 MINI MCR-SL-FM-RC-NC error signaling module. Fuse: 2x 2.5 A on PCB, slow-blow (replaceable) Input voltage: 24 VÃDC Input voltage range: 19.2 VÃDC ... 30 VÃDC Input current: ââ°¤ 2 A Redundant supply: yes, decoupled from diodes Polarization and surge protection: Yes Output name: Switching output Contact switching type: 1 N/C contact (alarm = open) Maximum switching voltage: 30 VÃDC (50 mA) |
| Connection data | Power supply Connection method: Screw connection Stripping length: 7 mm Number of connections: 1 Number of positions: 6 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Controller level Connection method: D-SUB pin strip Number of connections: 1 Number of positions: 37 X11 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 14 Note: For connecting 16 HART devices to HART multiplexers X12 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 14 Note: For connecting a second TC-D37SUB-AIO16-M-PS-UNI (additional 16 HART channels) |
| Signaling | Status display: 2 x red LED (error) 2x green LEDs (PWR1 and PWR2) |
| Dimensions | Width: 136 mm Height: 170 mm Depth: 159.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Ambient temperature (operation): -20°C ... 60°C (Please observe module specifications) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m Permissible humidity (operation): 5 % ... 95 % (non-condensing) Shock: 15g, according to IECý60068-2-27 Vibration (operation): 2g, according to IEC 60068-2-6 |
| Approvals | ATEX Identification: ïà II 3 G Ex nA IIC T4 Gc X UKCAÃExÃ(UKEX) Identification: ïà II 3 G Ex nA IIC T4 Gc Certificate: PxCIF21UKEX2902933X UL, USA/Canada Identification: UL 61010 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃ60664-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: No end clamp Mounting position: vertical, horizontal |
