2902967 PHOENIX CONTACT -

PLC-OSC- 5DC/ 24DC/100KHZ-G - Solid-state relay module

Input solid-state relay, with DC voltage output push-pull, transmission frequency: 100 kHz, with light indicator and protective circuit in input and output circuits, input: 5 V DC, output: 14 - 30 V DC/50 mA

Product Code: 2902967 copia - copy

Partner cod.: 2902967 copia - copy

PHOENIX CONTACT

Product properties	Product type: Solid-state relay module Product family: PLC-INTERFACE Application: 100 kHz input optocoupler Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.04 W Test voltage (Input/output): 2.5 kV_rms (50ÃHz, 1Ãmin., input/output) Air clearances and creepage distances between the power circuits Rated insulation voltage: 50 VÃDC Rated surge voltage: 0.5 kV
Input data	Nominal input voltage U_N: 5 VÃDC Input voltage range in reference to U_N: 0.5 ... 1.2 Input voltage range: 2.5 VÃDC ... 6 VÃDC Switching threshold "0" signal in reference to U_N: < 0.3 Switching threshold "1" signal in reference to U_N: > 0.5 Typical input current at U_N: 8 mA Typical response time: 1 Ãµs Typical turn-off time: 2 Ãµs Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection Surge protection Surge voltage protection: > 14 V Transmission frequency: 100 kHz

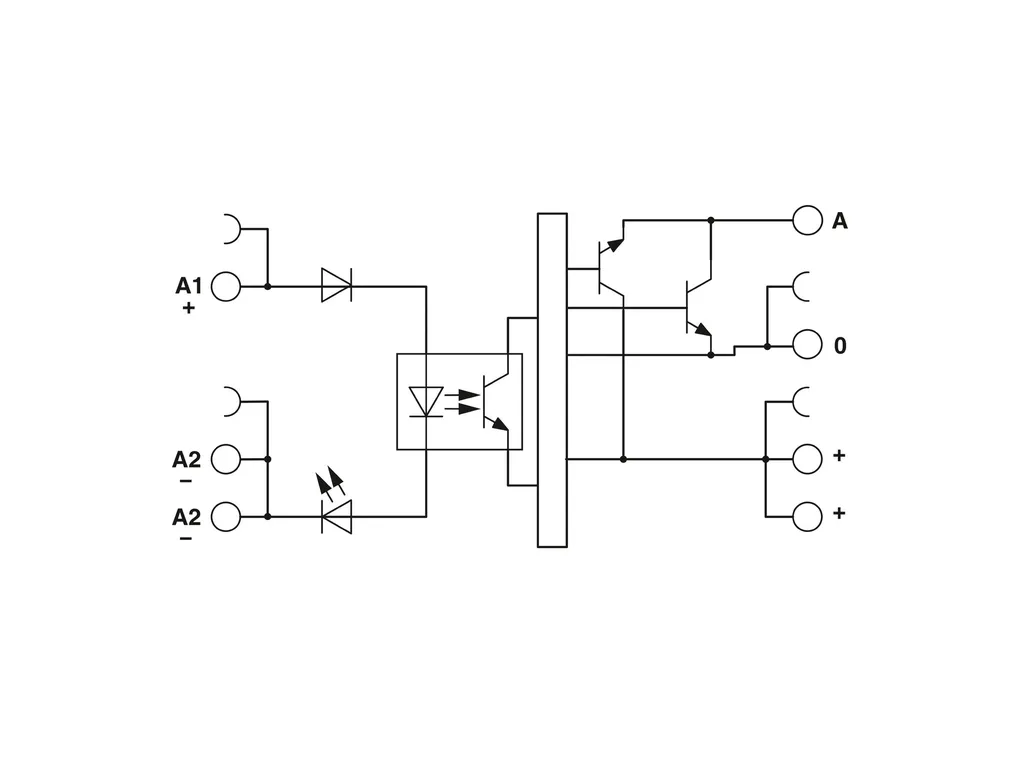

Output data	Designation: Output data Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 14 VÃDC ... 30 VÃDC Limiting continuous current: 50 mA Quiescent current: 15 mA Surge voltage protection: > 35 V Voltage drop at max. limiting continuous current: < 2.2 V Output circuit: 3-conductor push-pull, ground referenced Protective circuit: Reverse polarity protection Surge protection
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 86 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -25°C ... 75°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
