| Product properties | Product type: Single solid-state relay |
| Electrical properties | Test voltage (Input/output): 2.5 kV AC (Input/output) |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal in reference to UN: ââ°¤ 0.4 Switching threshold "1" signal in reference to UN: ââ°¥ 0.8 Typical input current at UN: 7 mA Typical response time: switch-on time: Max. one half cycle - zero-voltage crossing Typical turn-off time: switch-off time Max. one half cycle - zero-current crossing Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Transmission frequency: 25 Hz |

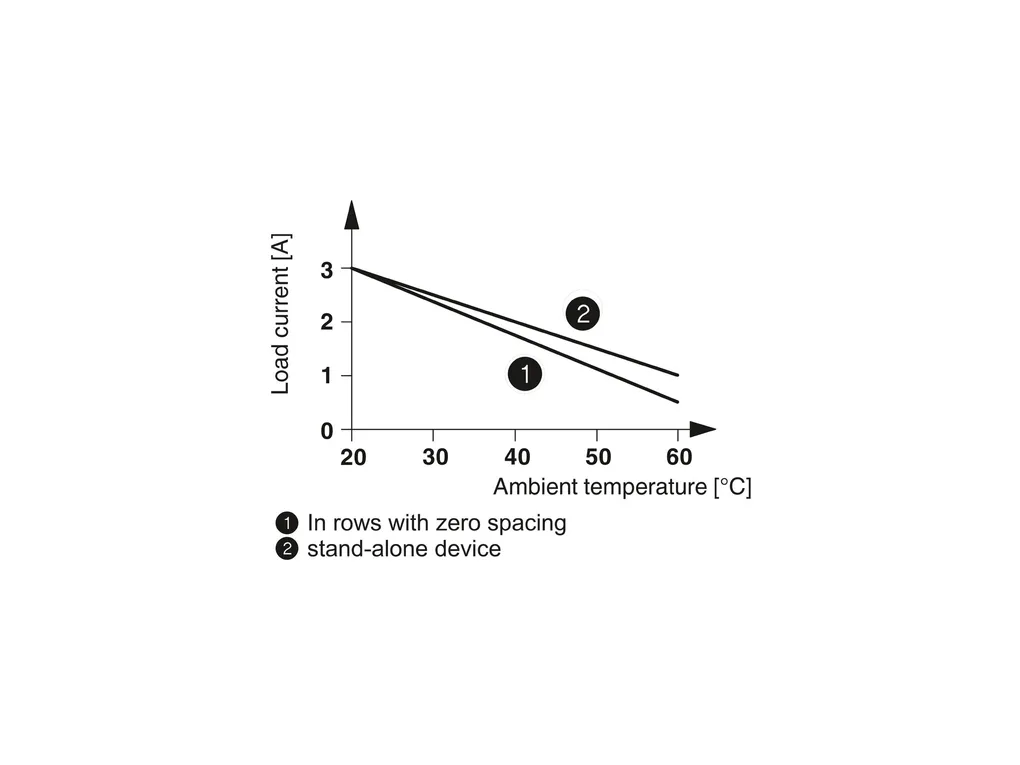

| Output data | Design of digital output: electronic Output voltage range: 24 VÃAC ... 280 VÃAC Limiting continuous current: 3 A (see derating curve) Min. load current: 50 mA Leakage current: 5 mA (in off state - components with low minimum load and leakage currents on request.) Surge current: 35 A (tÃ=Ã10Ãms) Phase angle cos phi min: 0.5 Max. load value: 6 A2s (I2 x t at t = 8.3 ms) Peak offstate voltage: 600 V Voltage drop at max. limiting continuous current: 1.5 V Output circuit: 2-conductor, floating Protective circuit: RC element |
| Dimensions | Width: 20.8 mm Height: 33 mm Depth: 66.5 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: DINÃVDEÃ0110 |
| Mounting | Mounting position: any |
