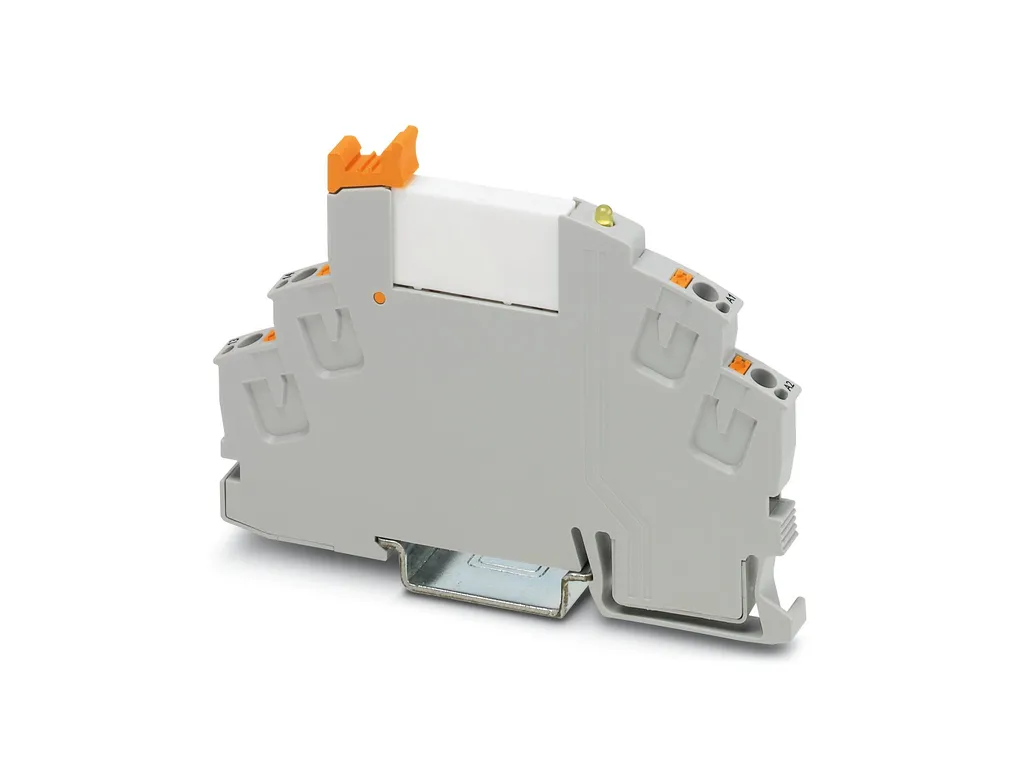

| Product properties | Product type: Relay Module Product family: RIFLINEÃcomplete Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 1.5 W Test voltage (Winding/contact): 2.5 kVrms (50ÃHz, 1Ãmin., winding/contact) Test voltage (Contact/contact): 2 kVrms (50ÃHz, 1Ãmin., contact/contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 2.5 kV |

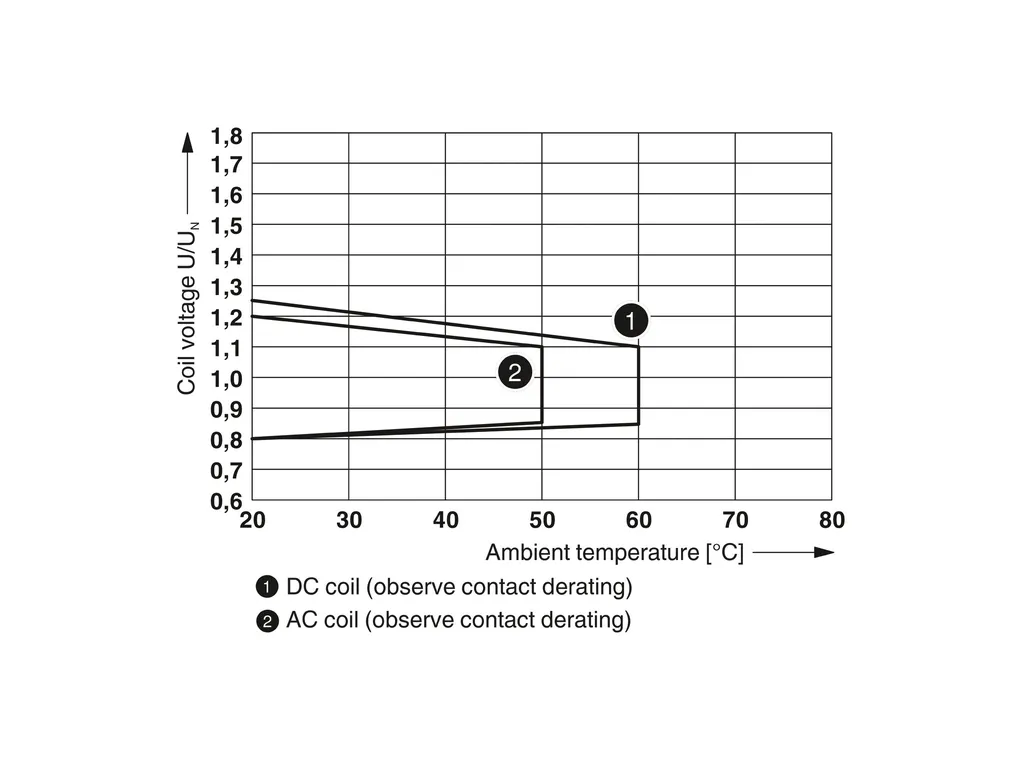

| Input data | Coil side Nominal input voltage UN: 230 VÃAC Input voltage range: 184 VÃAC ... 276 VÃAC (20ðC) Input voltage range in reference to UN: see diagram Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 6.5 mA Typical response time: 5 ms ... 15 ms Typical release time range: 5 ms ... 20 ms Coil voltage: 230 VÃAC Protective circuit: Varistor Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 4 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (24ÃmA) Limiting continuous current: 5 A (see diagram) Maximum inrush current: 16 A (20 ms, N/O contacts) Min. switching current: 5 mA (24ÃV) Interrupting rating (ohmic load) max.: 120 W (24ÃVÃDC) 124 W (48ÃVÃDC) 108 W (60ÃVÃDC) 52 W (110ÃVÃDC) 48 W (220ÃVÃDC) 1250 VA (250ÃVÃAC) Utilization category CB Scheme (IEC 60947-5-1): AC15, 1 A/240 V (N/O contact) DC13, 2 A/24 V (N/O contact) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Conductor cross section rigid: 0.5 mm² ... 4 mm² Conductor cross-section rigid (2 conductors with same cross section): 0.5 mm² ... 2.5 mm² Conductor cross section flexible: 0.5 mm² ... 4 mm² 0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) Conductor cross section flexible (2 conductors with same cross section): 0.5 mm² ... 2.5 mm² 0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) Conductor cross section AWG: 20 ... 10 (solid) 20 ... 12 (flexible) Tightening torque: 0.5 Nm ... 0.6 Nm |
| Dimensions | Width: 27 mm Height: 89 mm Depth: 75 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT I (Relay) Ambient temperature (operation): -40°C ... 50°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
