| Notes | General: FBS 2-6... plug-in bridge for the input side (A2) and FBS-2-8... plug-in bridge for the output side (11/21) |
| Product properties | Product type: Relay Module Product family: RIFLINEÃcomplete Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 107 cycles Insulation characteristics Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Insulation characteristicsââ¬Ã¢¹ Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Overvoltage category: III Pollution degree: 2 |

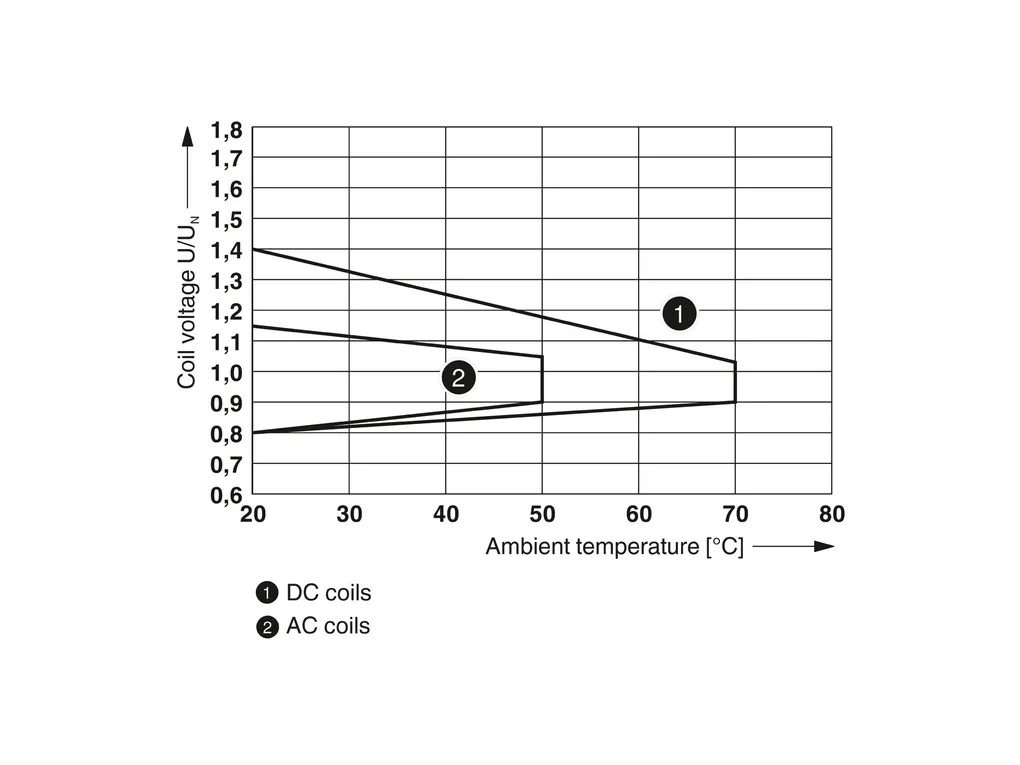

| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.96 W Test voltage (Winding/contact): 4 kVrms (50ÃHz, 1Ãmin., winding/contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV (Input/output) 4 kV (between the changeover contacts) |
| Input data | Coil side Nominal input voltage UN: 120 VÃAC Input voltage range: 96 VÃAC ... 138 VÃAC (20ðC) Input voltage range in reference to UN: see diagram Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 8 mA Typical response time: 3 ms ... 12 ms Typical release time range: 3 ms ... 20 ms Coil voltage: 120 VÃAC Protective circuit: Varistor Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (10ÃmA) Limiting continuous current: 10 A (see diagram) Maximum inrush current: 25 A (20 ms, N/O contacts) Min. switching current: 10 mA (12ÃV) Interrupting rating (ohmic load) max.: 240 W (24ÃVÃDC) 58 W (48ÃVÃDC) 48 W (60ÃVÃDC) 50 W (110ÃVÃDC) 80 W (220ÃVÃDC) 2500 VA (250ÃVÃAC) Utilization category CB Scheme (IEC 60947-5-1): AC15, 1.5 A/240 V (N/O contact) AC15, 3 A/250 V (N/C contact) DC13, 2 A/24 V (N/C contact) DC13, 0.2 A/250 V (N/O contact) |
| Connection data | Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) Conductor cross section AWG: 26 ... 16 (solid) 26 ... 16 (flexible) |
| Dimensions | Drill hole Diameter: 3.2 mm Width: 16 mm Height: 96 mm Depth: 75 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT III (Relay) Ambient temperature (operation): -40°C ... 50°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
