| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m |
| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path, 50°C): ââ°¤ 1 A (Uncoiled, see derating) Current (Per path, 70°C): ââ°¤ 0.6 A (Uncoiled, see derating) Supported controller MITSUBISHI MELSEC Q Suitable I/O card: QX41 QX41-S1 QX42 QX42-S1 QY41P QY42P QH42P QY82P Supported controller MITSUBISHI MELSEC L Suitable I/O card: LX41C4 LX42C4 LY41NT1P LY42NT1P LY41PT1P LY42PT1P Supported controller HONEYWELL MasterLogic 200 Suitable I/O card: 2MLQ-TR4A 2MLQ-TR8A 2MLQ-TR4B 2MLQ-TR8B |

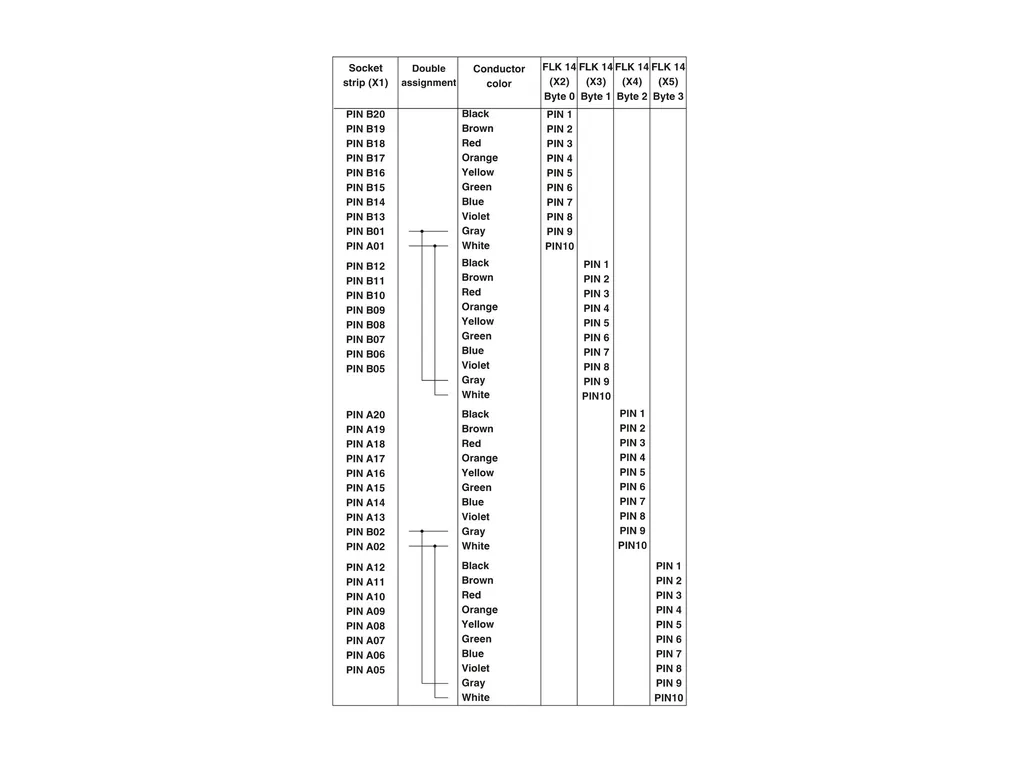

| Cable/line | Cable length: 2 m 10X0.14Ã[PVC] UL AWM Style: 2464/1061 Number of positions: 10 Shielded: no Cable type: 10X0.14Ã[PVC] Conductor type: Round cable set Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 10x 0.14 mm² Wire diameter incl. insulation: 1 mm ñ0.03Ãmm External cable diameter: 6.1 mm ñ0.4Ãmm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Tin-plated Cu litz wires Cable resistance: ââ°¤ 145 é/km (20ðC) Insulation resistance: ââ°¥ 20 Mé*km (20ðC) Smallest bending radius, fixed installation: 52 mm Smallest bending radius, movable installation: 98 mm Max. bending cycles: 5000 Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code Fujitsu40 (B20): IDC/FLK14-1 (1) = black Fujitsu40 (B19): IDC/FLK14-1 (2) = brown Fujitsu40 (B18): IDC/FLK14-1 (3) = red Fujitsu40 (B17): IDC/FLK14-1 (4) = orange Fujitsu40 (B16): IDC/FLK14-1 (5) = yellow Fujitsu40 (B15): IDC/FLK14-1 (6) = green Fujitsu40 (B14): IDC/FLK14-1 (7) = blue Fujitsu40 (B13): IDC/FLK14-1 (8) = violet Fujitsu40 (B1): IDC/FLK14-1 (9) = gray IDC/FLK14-2 (9) = gray Fujitsu40 (A1): IDC/FLK14-1 (10) = white IDC/FLK14-2 (10) = white Fujitsu40 (B12): IDC/FLK14-2 (1) = black Fujitsu40 (B11): IDC/FLK14-2 (2) = brown Fujitsu40 (B10): IDC/FLK14-2 (3) = red Fujitsu40 (B9): IDC/FLK14-2 (4) = orange Fujitsu40 (B8): IDC/FLK14-2 (5) = yellow Fujitsu40 (B7): IDC/FLK14-2 (6) = green Fujitsu40 (B6): IDC/FLK14-2 (7) = blue Fujitsu40 (B5): IDC/FLK14-2 (8) = violet Fujitsu40 (A20): IDC/FLK14-3 (1) = black Fujitsu40 (A19): IDC/FLK14-3 (2) = brown Fujitsu40 (A18): IDC/FLK14-3 (3) = red Fujitsu40 (A17): IDC/FLK14-3 (4) = orange Fujitsu40 (A16): IDC/FLK14-3 (5) = yellow Fujitsu40 (A15): IDC/FLK14-3 (6) = green Fujitsu40 (A14): IDC/FLK14-3 (7) = blue Fujitsu40 (A13): IDC/FLK14-3 (8) = violet Fujitsu40 (B2): IDC/FLK14-3 (9) = gray IDC/FLK14-4 (9) = gray Fujitsu40 (A2): IDC/FLK14-3 (10) = white IDC/FLK14-4 (10) = white Fujitsu40 (A12): IDC/FLK14-4 (1) = black Fujitsu40 (A11): IDC/FLK14-4 (2) = brown Fujitsu40 (A10): IDC/FLK14-4 (3) = red Fujitsu40 (A9): IDC/FLK14-4 (4) = orange Fujitsu40 (A8): IDC/FLK14-4 (5) = yellow Fujitsu40 (A7): IDC/FLK14-4 (6) = green Fujitsu40 (A6): IDC/FLK14-4 (7) = blue Fujitsu40 (A5): IDC/FLK14-4 (8) = violet |
| Connection data | Connection 1 Connection method: Fujitsu connector Type: FCN 367 Number of connections: 1 Number of positions: 40 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm Connection 2 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 4 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
