2903660 PHOENIX CONTACT -

REL-IR2/LDP- 24DC/2X21 - Single relay

Plug-in industrial relay with power contacts, 2 changeover contacts, test button, status LED, freewheeling diode, mechanical switching position indicator, polarity: A1+, A2-, input voltage: 24 V DC

Product Code: 2903660 copia - copy

Partner cod.: 2903660 copia - copy

PHOENIX CONTACT

Product properties	Product type: Single relay Operating mode: 100% operating factor Mechanical service life: approx. 2x 10⁷ cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 3 (Rated voltage of 230ÃV) 2 (Rated voltage of 400ÃV)
Electrical properties	Service life electrical: see diagram Maximum power dissipation for nominal condition: 1.01 W Test voltage (Winding/contact): 2.5 kV_rms (50ÃHz, 1Ãmin., winding/contact) Test voltage (Contact/contact): 2.5 kV_rms (50ÃHz, 1Ãmin., contact/contact) Test voltage (Changeover contact/changeover contact): 2.5 kV_rms (50ÃHz, 1Ãmin., changeover contact/changeover contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 4 kV

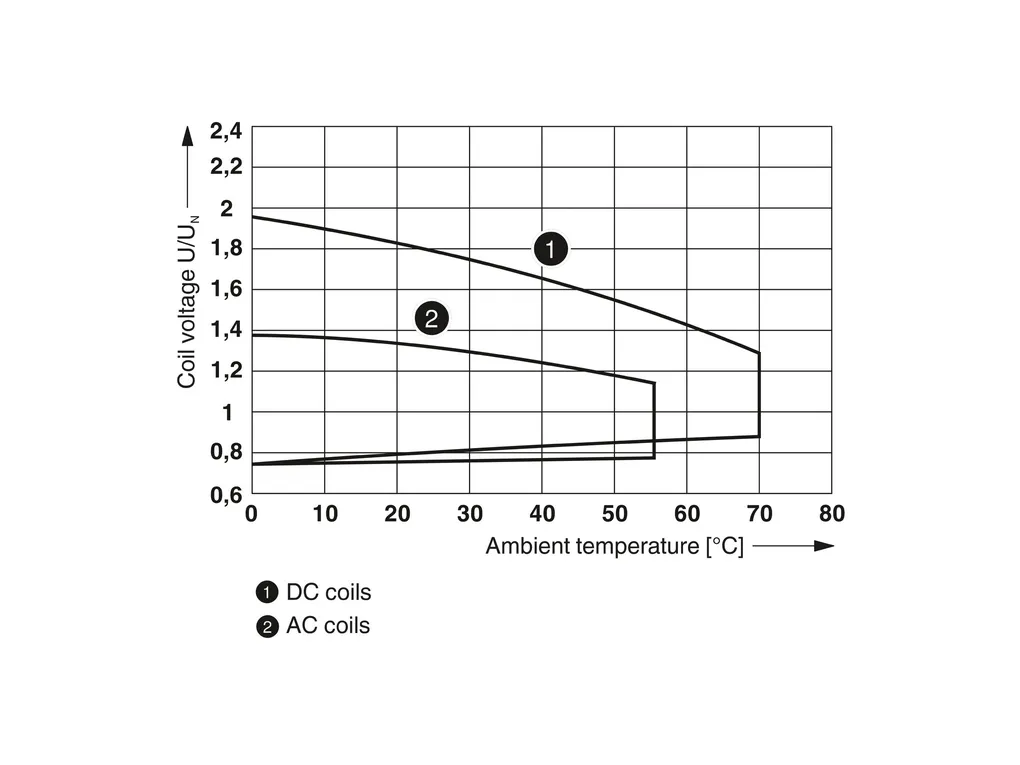

Input data	Coil side Nominal input voltage U_N: 24 VÃDC Input voltage range: 18.7 VÃDC ... 46.8 VÃDC Input voltage range in reference to U_N: see diagram Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 42 mA Typical response time: 13 ms Typical release time: 14 ms Protective circuit: Freewheeling diode Status display: Yellow LED
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (At 24 mA) Limiting continuous current: 12 A Maximum inrush current: 30 A (20 ms, N/O contacts) Min. switching current: 5 mA (at 24ÃV) Interrupting rating (ohmic load) max.: 288 W (at 24 V DC) 124 W (at 48 V DC) 108 W (at 60 V DC) 52 W (at 110 V DC) 48 W (at 220 V DC) 3000 VA (for 250 V AC) Switching capacity min.: 0.12 W Motor load according to UL 508: 1/2ÃHP, 240ÃVÃAC
Connection data	Connection method: Plug-in connection
Dimensions	Width: 21.2 mm Height: 27.5 mm Depth: 35.6 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: RT I Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations: IEC 60664 IEC 61810
Mounting	Mounting position: any
