2904270 PHOENIX CONTACT -

VIP-3/PT/HD44SUB/M - Interface module

VARIOFACE module, with push-in connections and high density D-SUB miniature male connector, for mounting on NS 35 rails, no. of pos.: 44

Product Code: 2904270 copia - copy

Partner cod.: 2904270 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module Product family: VARIOFACE Professional Number of positions: 44 Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	Nominal voltage U_N: 25 VÃAC 60 VÃDC Max. current carrying capacity per branch: 1 A Rated surge voltage: 1.2 kV
Connection data	Field level Connection method: Push-in connection Stripping length: 8 mm Number of positions: 44 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 Controller level Connection method: High density D-SUB pin strip Number of connections: 1 Number of positions: 44
Signaling	Status display: No Status display present: No

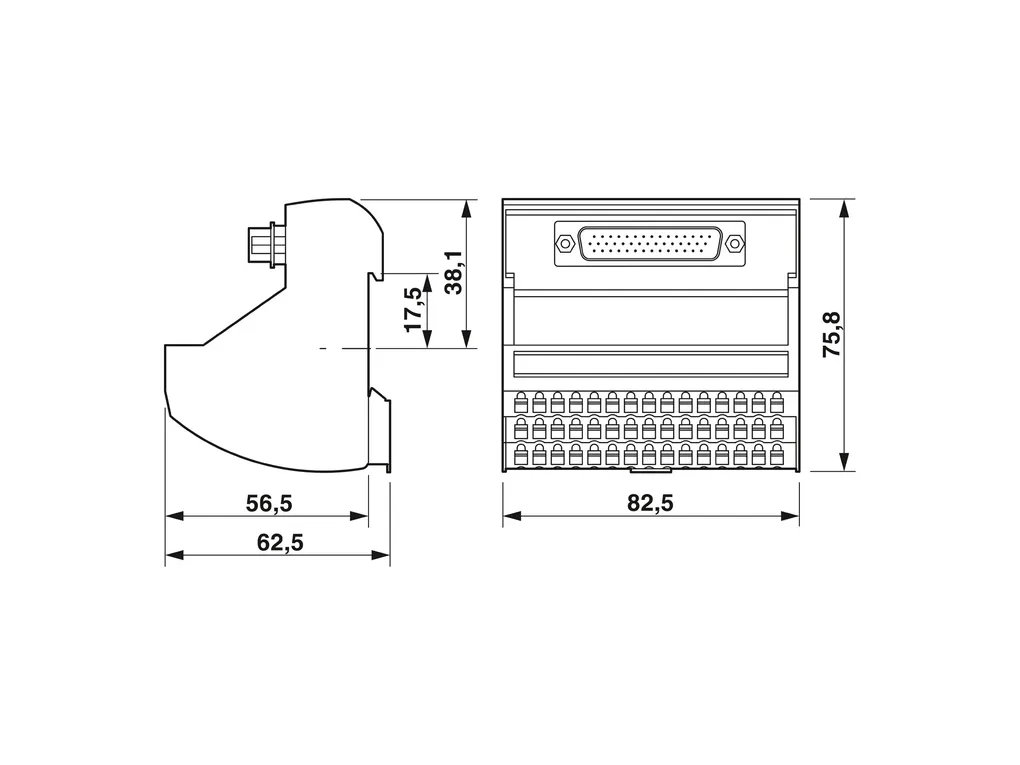

Dimensions	Item dimensions Width: 82.5 mm Height: 75.8 mm Depth: 63 mm
Material specifications	Flammability rating according to UL 94: V0 Housing insulation material: Polyamide 6.6 green
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: ENÃ50178
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
