2904276 PHOENIX CONTACT -

Product properties	Product type: Interface module Product family: VARIOFACE Professional Number of positions: 37 No. of channels: 16 Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 16 Nominal voltage U_N: 25 VÃAC 60 VÃDC Max. current carrying capacity per branch: 2 A Rated surge voltage: 1.2 kV Supported controller HONEYWELL Experion PKS C300/C-Series Suitable I/O card: TAOX01 (non-redundant) TAOX11 (redundant) TUIO31 (non-redundant) TUIO41 (redundant)

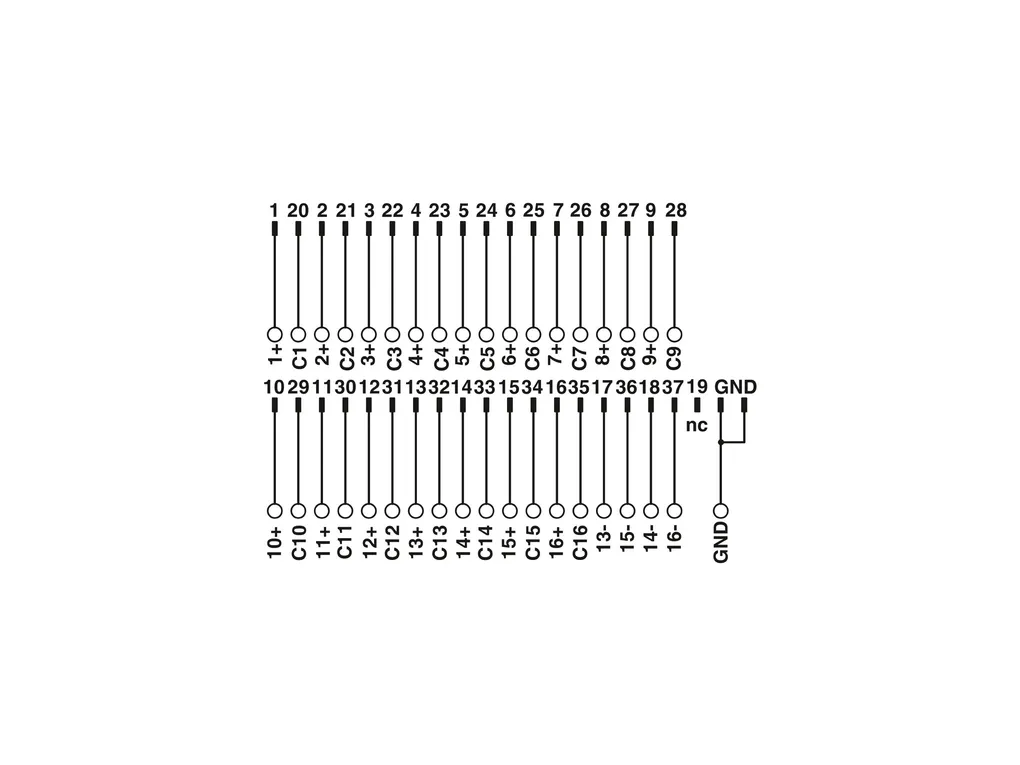

Connection data	Field level Connection in acc. with standard: IEC / EN Connection method: Push-in connection Stripping length: 8 mm Number of positions: 37 Conductor cross section rigid: 0.14 mm² ... 4 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 Controller level Connection method: D-SUB pin strip Number of connections: 1 Number of positions: 37
Signaling	Status display: No Status display present: No
Dimensions	Item dimensions Width: 87.6 mm Height: 75.8 mm Depth: 63 mm
Material specifications	Flammability rating according to UL 94: V0 Housing insulation material: Polyamide 6.6 green
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: ENÃ50178
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
