| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Power module Insulation characteristics Overvoltage category: II Pollution degree: 2 |
| Input data | Signal Voltage input signal: 19.2 VÃDC ... 30 VÃDC Polarization and surge protection: Yes |
| Output data | Switching: Relay Contact switching type: 1Ãchangeover contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 30 V AC/DC (2ÃA) Signal Max. current output signal: 2 A (Redundancy range) Output voltage: Input voltage - 0.7 V |
| Connection data | Connection method: Screw connection Stripping length: 7 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm ... 0.6 Nm |
| Signaling | Status display: 1 x red LED (error) 2 x green LEDs (PWR1 and PWR2) |

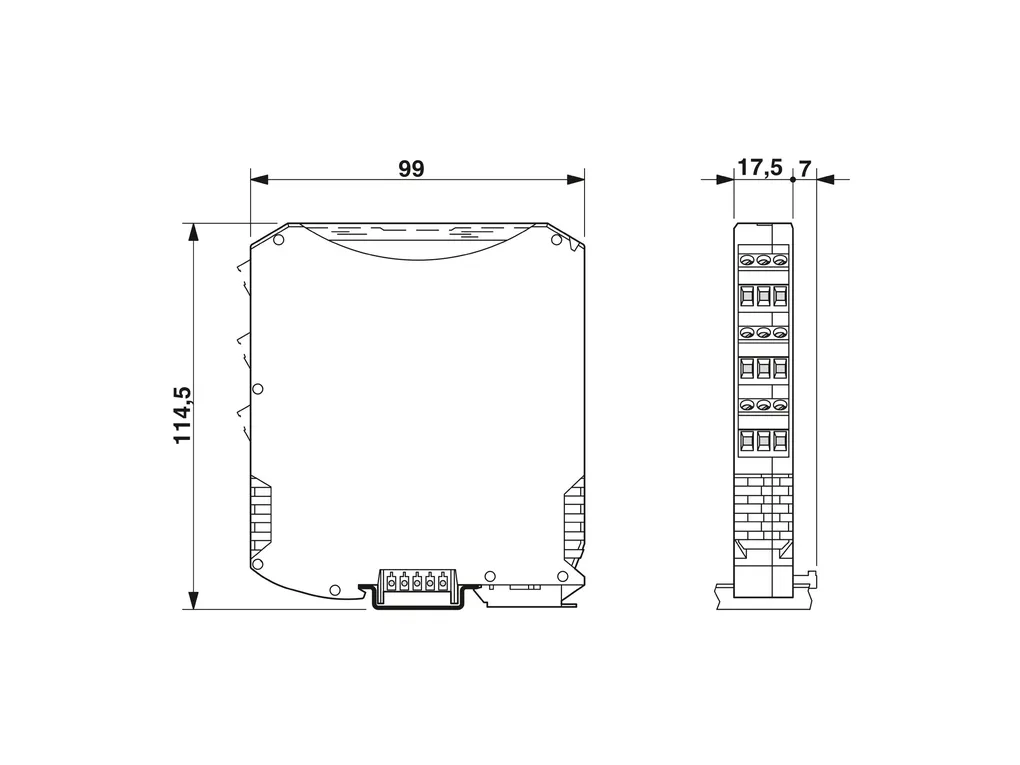

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/78531564ee072e4f810cc9c413cb142c/-S204x204-FJPG Width: 17.5 mm Height: 103.6 mm Depth: 113.7 mm Depth NSÃ35/7,5: 114.5 mm (Snapped onto DIN rail NSÃ35/7,5 in accordance with ENÃ60715) |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) Housing material: Polyamide (PA 6.6) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C (only on Termination Carrier) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m Permissible humidity (operation): 5 % ... 95 % (non-condensing) |
| Approvals | CE Certificate: CE-compliant ATEX Identification: ïà II 3 G Ex ec nC IIC T4 Gc X UKCAÃExÃ(UKEX) Identification: ïà II 3G Ex ec nC IIC T4 Gc Certificate: PxCIF21UKEX2904673X UL, USA/Canada Identification: UL 61010 Listed Class I, Div. 2, Groups A, B, C, D T5 Class I, Zone 2, Group IIC |
| EMC data | Noise immunity: EN 61000-6-2 Note: When being exposed to interference, there may be minimal deviations. Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4 Conducted interference Designation: Conducted interferences Standards/regulations: ENÃ61000-4-6 Evaluation criterion: A |
| Mounting | Mounting type: DIN rail mounting |
