2905035 PHOENIX CONTACT -

ST-OV2- 24DC/ 60DC/1 - Solid-state relay

Plug-in power solid-state relay, with LED and protective circuit in input and output circuits, input: 24 V DC, output: 12 - 60 V DC/max. 1 A, can be plugged into basic terminal blocks

Product Code: 2905035 copia - copy

Partner cod.: 2905035 copia - copy

PHOENIX CONTACT

Product properties	Product type: Single solid-state relay
Electrical properties	Test voltage (Input/output): 2.5 kV AC (Input/output)
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal in reference to U_N: Ã¢Ã¢°¤ 0.4 Switching threshold "1" signal in reference to U_N: Ã¢Ã¢°¥ 0.8 Typical input current at U_N: 7 mA Typical response time: 20 Ãµs Typical turn-off time: 200 Ãµs Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Transmission frequency: 500 Hz

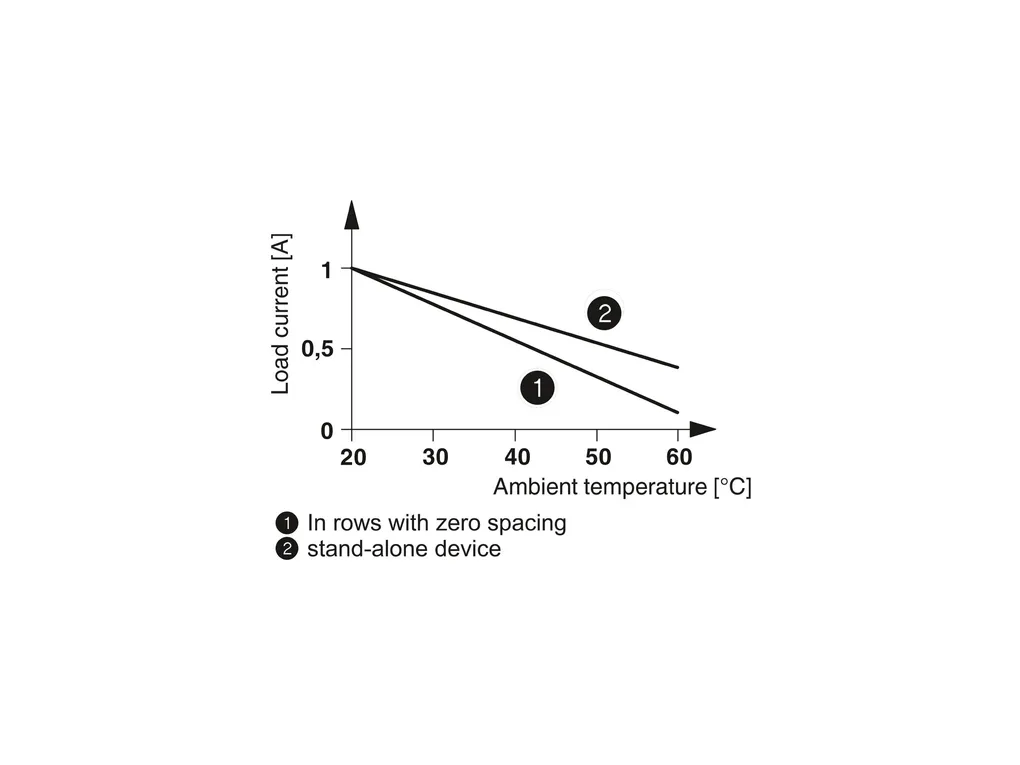

Output data	Design of digital output: electronic Output voltage range: 12 VÃDC ... 60 VÃDC Limiting continuous current: 1 A (see derating curve) Surge current: 5 A (tÃ=Ã1Ãs) Peak offstate voltage: 60 VÃDC (Collector-emitter reverse voltage) Voltage drop at max. limiting continuous current: 1.2 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection
Dimensions	Width: 14.6 mm Height: 33 mm Depth: 66.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: DINÃVDEÃ0110b, Gr. C for 250 V DC DINÃVDEÃ0160 (in relevant parts)
Mounting	Mounting position: any
