| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Extension module Product family: PLC logic Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Air clearances and creepage distances between the power circuits Rated insulation voltage: 50 V Rated surge voltage: 0.8 kV Supply Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 26.4 VÃDC Maximum input current at UN: 65 mA Protective circuit: Reverse polarity protection Surge protection |
| Input data | Digital inputs Number of inputs: 8 (2 configurable as analog) Description of the input: EN 61131-2, type 3 Input voltage: 24 VÃDC Signal level "0" signal: < 5 V Signal level "1" signal: > 11 V Input current "0" signal: < 1 mA Input current "1" signal: typ. 2.5 mA Status display: Yellow LED Analog inputs Number of inputs: 2 (IN6 and IN7 are configurable as analog) Input voltage range: 0 V ... 10 V Input resistance: > 3.5 ké Contact to PLC-INTERFACE Number of inputs: ââ°¤ 8 Description of the input: technical data depends on the PLC-INTERFACE terminal block used Input voltage: 19 VÃDC Typical current consumption: 4 mA Input resistance: < 100 mé |
| Output data | Number of outputs: ââ°¤ 8 Nominal output voltage: 24 VÃDC Nominal current: 9 mA |
| Connection data | COMBICON connection Connection method: Push-in connection Stripping length: 9 mm Number of connections: 1 Number of positions: 10 Note: Device supply and 8 x inputs Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve) 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) Conductor cross section AWG: 26 ... 16 PLC logic - bus Connection method: Insulation displacement connection Number of connections: 1 Number of positions: 4 |
| Signaling | Status display: Green LED |

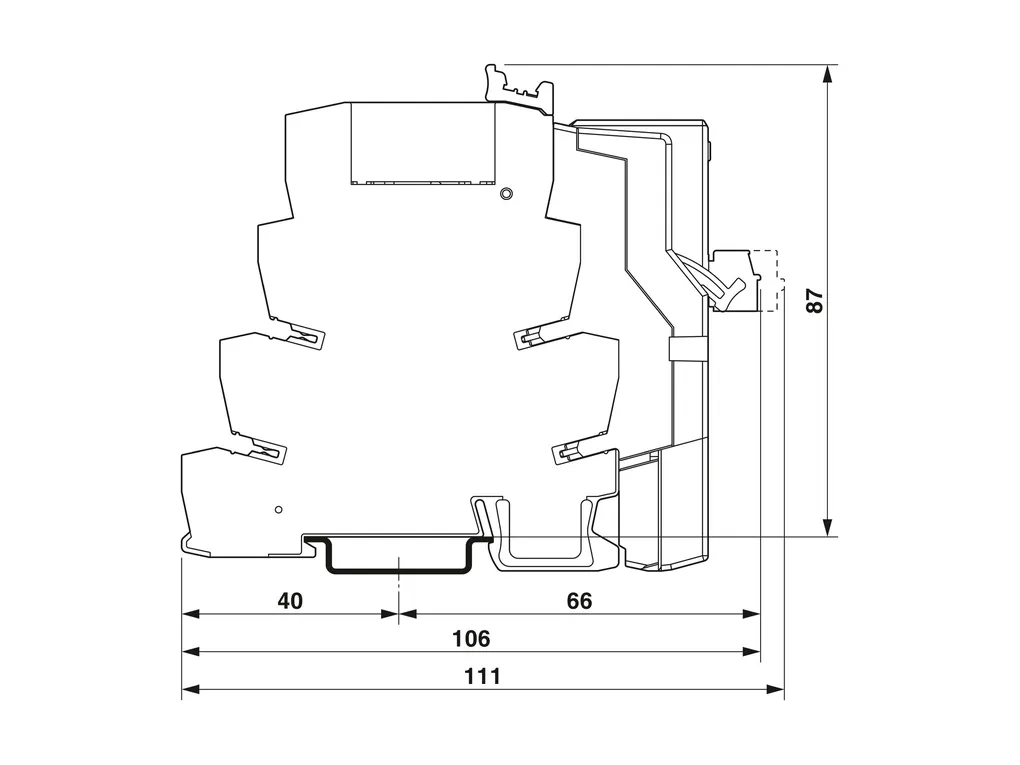

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e6c5f9bfcfe39b41957112138e950624/-S204x204-FJPG Width: 50 mm Height: 48.5 mm 111 mm (with relay) Depth: 82.5 mm 87 mm (with relay) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 45°C Ambient temperature (storage/transport): -20°C ... 70°C Max. permissible relative humidity (operation): 95 % |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: Class I, Div. 2, Groups A, B, C, D T4 UL, Canada Identification: Class I, Zone 2, Ex nA IIC Gc T4 X UL, USA Identification: Class I, Zone 2, AEx nA IIC T4 |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: DINÃENÃ50178 |
| Mounting | Mounting type: Plug-in mounting Assembly instructions: can be plugged onto 8 x PLC-INTERFACE terminal blocks Mounting position: any |
