2905187 PHOENIX CONTACT -

ST-OV3- 12DC/ 24DC/2 - Solid-state relay

Plug-in power solid-state relay, with LED and protective circuit in input and output circuits, input: 12 V DC, output: short-circuit-proof, 10 - 30 V DC/max. 2 A, can be plugged into basic terminal blocks

Product Code: 2905187 copia - copy

Partner cod.: 2905187 copia - copy

PHOENIX CONTACT

Product properties	Product type: Single solid-state relay
Electrical properties	Test voltage (Input/output): 2.5 kV AC (Input/output)
Input data	Nominal input voltage U_N: 12 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 9.6 VÃDC ... 14.4 VÃDC Switching threshold "0" signal, voltage: Ã¢Ã¢°¤ 4.2 V Switching threshold "1" signal voltage: Ã¢Ã¢°¥ 4.8 V Typical input current at U_N: 5 mA Typical response time: 17 Ãµs Typical turn-off time: 104 Ãµs Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Transmission frequency: 1000 Hz

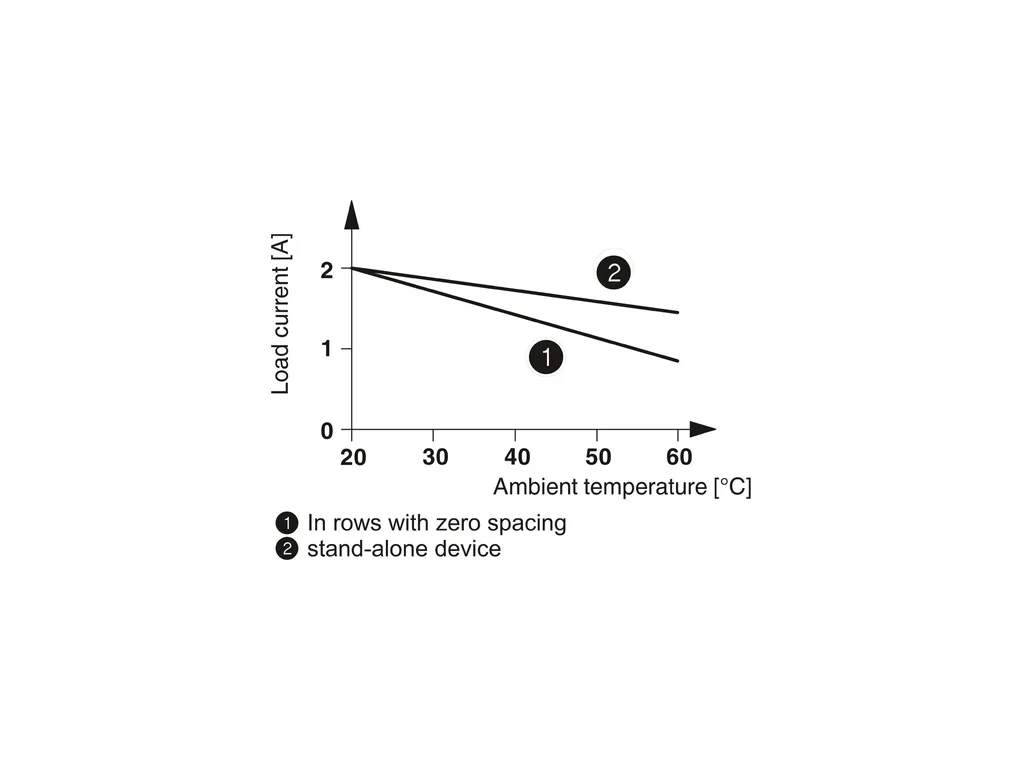

Output data	Design of digital output: electronic Output voltage range: 10 VÃDC ... 30 VÃDC Limiting continuous current: 2 A (see derating curve) Peak offstate voltage: 35 VÃDC (Collector-emitter reverse voltage) Voltage drop at max. limiting continuous current: 1.5 V Output circuit: 3-conductor, ground-referenced Status display: LED red Protective circuit: Reverse polarity protection; Polarity protection diode Free running; Freewheeling diode
Dimensions	Width: 20.8 mm Height: 33 mm Depth: 66.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: DINÃVDEÃ0110
Mounting	Mounting position: any
