2905195 PHOENIX CONTACT -

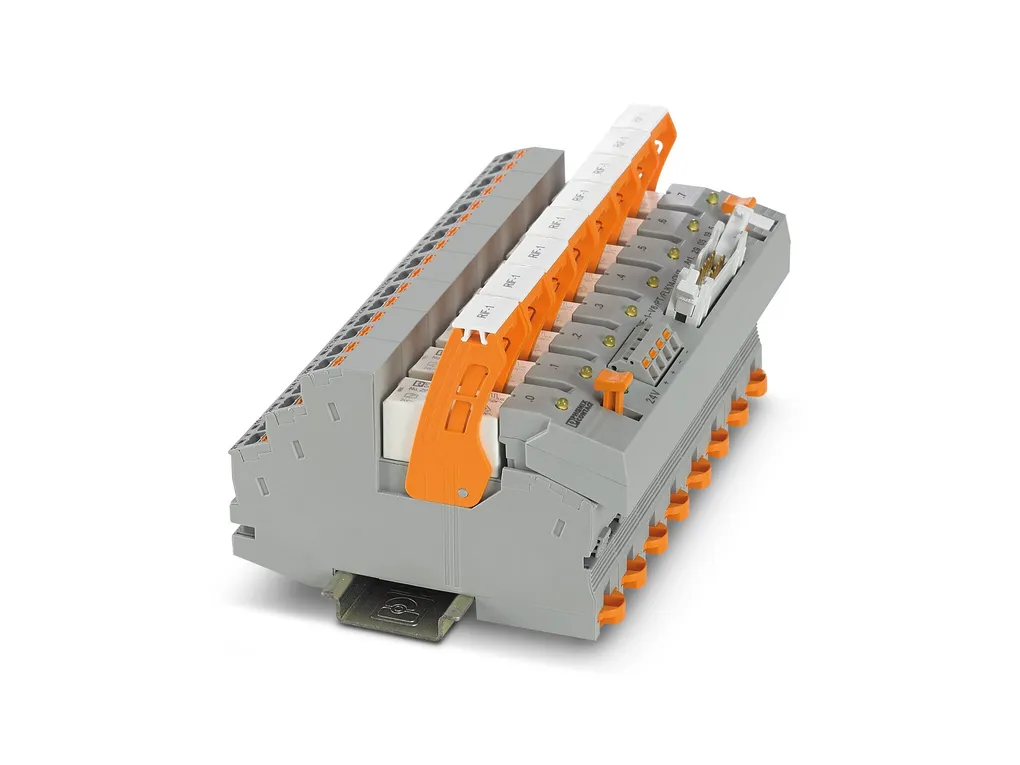

RIF-1-V8/PT/FLK14/OUT - System connection

V8 adapter for 8 x RIF-1 relay base, controller: PLC system cabling of output cards, connection 1: Push-in connection 4x, connection 2: IDC/FLK pin strip 1x 14-position, connection 3: Plug-in connection, number of channels: 8, control logic: plusschaltend

Product Code: 2905195 copia - copy

Partner cod.: 2905195 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module Product family: RIFLINEÃcomplete Number of positions: 14 No. of channels: 8 Operating mode: 100% operating factor Insulation characteristics: Air clearances and creepage distances Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 8 Nominal voltage U_N: 30 VÃDC Protective circuit: Power supply; Polarity protection diode Signal level; Freewheeling diode per channel Max. current carrying capacity per branch: 1 A (per signal path) Max. total current of voltage supply: 3 A Air clearances and creepage distances Rated insulation voltage: 63 VÃDC Rated surge voltage: 0.6 kV (Functional insulation) Supported controller SIEMENS S7-1500 Suitable I/O card: 6ES7522-1BH00-0AB0 6ES7522-1BH01-0AB0 6ES7522-1BL00-0AB0 6ES7522-1BL01-0AB0 6ES7522-1BP00-0AA0 Supported controller SIEMENS S7-400 Suitable I/O card: 6ES7422-1BL00-0AA0 Supported controller ALLEN-BRADLEY ControlLogix Suitable I/O card: 1756-OB32 1756-OB16E Supported controller ALLEN-BRADLEY PLC 5 Suitable I/O card: 1771 OBN Supported controller ALLEN-BRADLEY SLC 500 Suitable I/O card: 1746 OB16 1746 OB 32 Supported controller HONEYWELL Experion PKS C200 Suitable I/O card: TC-ODD 321 Supported controller MITSUBISHI MELSEC Q Suitable I/O card: QY81P QY82P Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: CPU 313C-2DP CPU 314C-2DP CPU 314C-2PtP 6ES7322-1BH01-0AA0 6ES7322-1BL00-0AA0 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0 CPU 313C CPU 313C-2PtP Supported controller ABB S800 I/O Suitable I/O card: DO810 DO840 Supported controller EMERSON DeltaV Suitable I/O card: VE4002S1T1B3 VE4002S1T2B3 VE4002S1T2B3 Series 2 VE4002S1T2B6 Supported controller GE-FANUC RX3i Suitable I/O card: IC694MDL754 Supported controller MITSUBISHI MELSEC L Suitable I/O card: LY41PT1P LY42PT1P
Connection data	Supply Connection method: Push-in connection Stripping length: 10 mm Number of connections: 4 Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Controller level Connection method: IDC/FLK pin strip Plug-in connection Number of connections: 1 Number of positions: 14 Pitch: 2.54 mm
Signaling	Status display: Yellow LED/per channel Status display present: Yes Operating voltage display: Green LED
Dimensions	Item dimensions Width: 130.4 mm Height: 31.9 mm Depth: 38.13 mm
Material specifications	Housing insulation material: PA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 60°C Ambient temperature (storage/transport): -40°C ... 70°C
Approvals	UL, USA Identification: ULÃ508 Recognized CSA Identification: CSA-C22.2 No. 14-13 CSA-C22.2 No. 158-10
Standards and regulations	Air clearances and creepage distances Standards/regulations: IEC 60664 DINÃENÃ50178
Mounting	Assembly instructions: Can be plugged into 8 x RIFLINE complete RIF-1 relay bases Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
