2905215 PHOENIX CONTACT -

PLC-HPT-24DC/230AC/10 - Solid-state relay

PLC-INTERFACE, hybrid solid-state relay incl. bypass relay with push-in connection, for mounting on NS 35/7,5 DIN rail, input: 24 V DC, output: 24 V AC - 253 V AC/10 A

Product Code: 2905215 copia - copy

Partner cod.: 2905215 copia - copy

PHOENIX CONTACT

Product properties	Product type: Solid-state relay module Product family: PLC-INTERFACE Application: Output function Operating mode: 100% operating factor Insulation characteristics Insulation: safe isolation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: safe isolation Overvoltage category: III Pollution degree: 2
Electrical properties	Test voltage: 4 kV_rms (50ÃHz, 1Ãmin., winding/contact) Air clearances and creepage distances between the power circuits Rated insulation voltage: 260 VÃAC Rated surge voltage: 6 kV
Input data	Rated control circuit supply voltage U_S: 24 VÃDC Voltage range with reference to U_S: 0.8 ... 1.2 Rated control supply current I_S: Ã¢Ã¢°¤ 19 mA Rated actuating voltage U_C: 24 VÃDC Voltage range with reference to U_C: 0.8 ... 1.2 Rated actuating current I_C: 6.8 mA "0" signal switching threshold in reference to U_C: < 0.4 "1" signal switching threshold in reference to U_C: > 0.8 Typical response time: 30 ms Typical turn-off time: 20 ms Status display: Yellow LED Protective circuit: Reverse polarity protection Surge protection Surge voltage protection: > 33 VÃDC Transmission frequency: 1 Hz

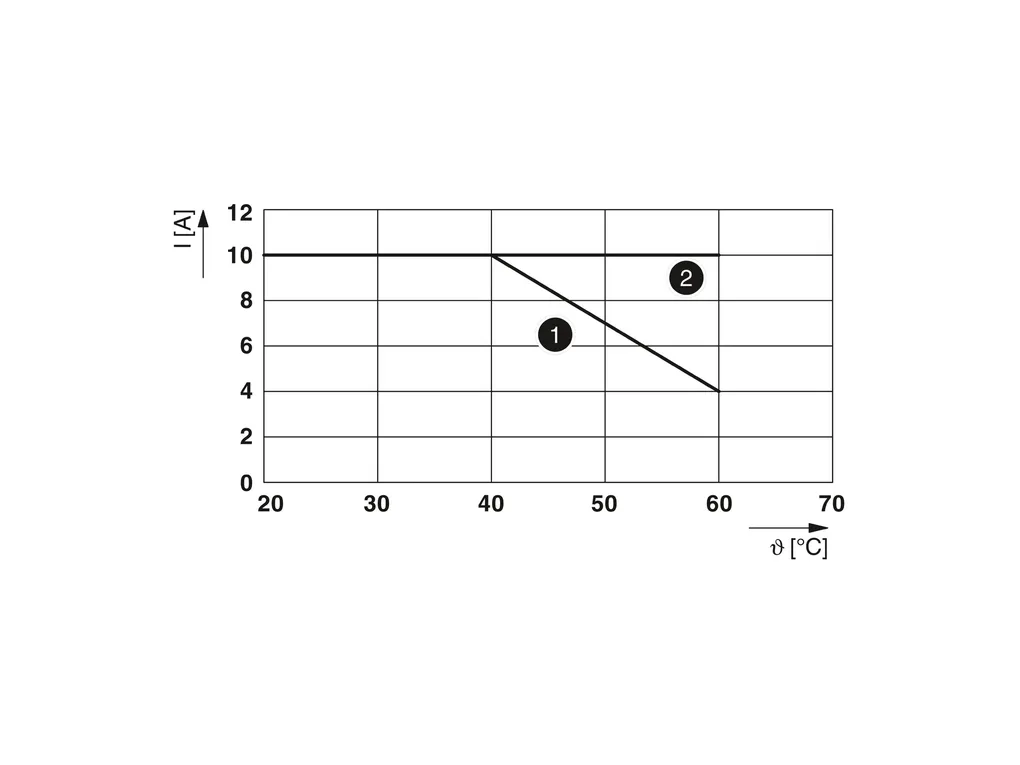

Output data	Designation: AC hybrid output Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 24 VÃAC ... 253 VÃAC (50/60ÃHz) Limiting continuous current: 10 A (see derating curve) Min. load current: 100 mA Leakage current: < 1 mA Surge current: 250 A (tp = 20Ãms, at 25Ã°C) Max. load value: 350 A²s (tp = 10Ãms, at 25Ã°C) Surge voltage protection: > 275 V Output circuit: 2-conductor, floating Protective circuit: Varistor
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 14 mm Height: 80 mm Depth: 94 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT II (Relay) Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: See derating curve Mounting position: any
