| Product properties | Product type: Single solid-state relay |
| Electrical properties | Test voltage (Input/output): 2.5 kV AC (Input/output) |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal in reference to UN: ââ°¤ 0.4 Switching threshold "1" signal in reference to UN: ââ°¥ 0.8 Typical input current at UN: 7 mA Typical response time: 50 õs Typical turn-off time: 200 õs Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Transmission frequency: 300 Hz |

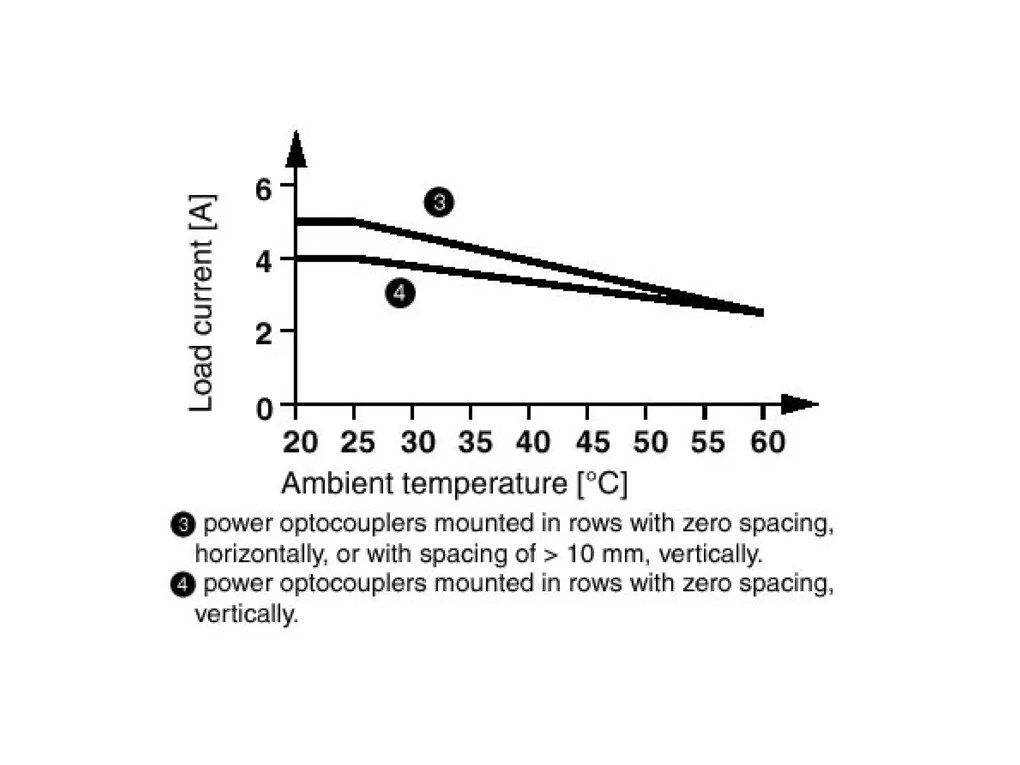

| Output data | Design of digital output: electronic Output voltage range: 3 VÃDC ... 30 VÃDC Limiting continuous current: 5 A (see derating curve) Peak offstate voltage: 30 VÃDC (Collector-emitter reverse voltage) Voltage drop at max. limiting continuous current: 0.3 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection |
| Dimensions | Width: 14.6 mm Height: 33 mm Depth: 66.5 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 IEC 60664A DINÃVDEÃ0110 |
| Mounting | Mounting position: any |
