| Product properties | Product type: Solid-state relay module Product family: PLC-INTERFACE Application: Output function Operating mode: 100% operating factor Data management status Date of last data management: 08.07.2024 Article revision: 02 Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: safe isolation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Test voltage: 4 kVrms (50 Hz, 1 min., winding/contact) Air clearances and creepage distances between the power circuits Rated insulation voltage: 260 V AC Rated surge voltage: 6 kV |
| Input data | Rated control circuit supply voltage US: 24 V DC Voltage range with reference to US: 0.8 ... 1.2 Rated control supply current IS: ââ°¤ 19 mA Rated actuating voltage UC: 24 V DC Voltage range with reference to UC: 0.8 ... 1.2 Rated actuating current IC: 6.8 mA Nominal voltage (plugged-in solid-state relay): 24 V DC "0" signal switching threshold in reference to UC: < 0.4 "1" signal switching threshold in reference to UC: > 0.8 Typical response time: 20 ms Typical turn-off time: 40 ms Status display: LED (yellow) Protective circuit: Reverse polarity protection Surge protection Surge voltage protection: > 33 V DC Transmission frequency: 1 Hz |
| Output data | Designation: DC hybrid output Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 12 V DC ... 250 V DC Limiting continuous current: 10 A (see derating curve) Maximum inrush current: 60 A (5 ms; Tamb = 60 °C) Min. load current: 100 mA Surge voltage protection: > 275 V Output circuit: 2-conductor / N/O contact in parallel operation (no electrical disconnection) Protective circuit: Inverse diode (No continuous protection against polarity reversal) Varistor |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Dimensions | Width: 14 mm Height: 80 mm Depth: 94 mm |
| Material specifications | Color: gray (RAL 7042) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT II (Relay) Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -25 °C ... 60 °C Ambient temperature (storage/transport): -40 °C ... 85 °C Altitude: ââ°¤ 2000 m |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1 |

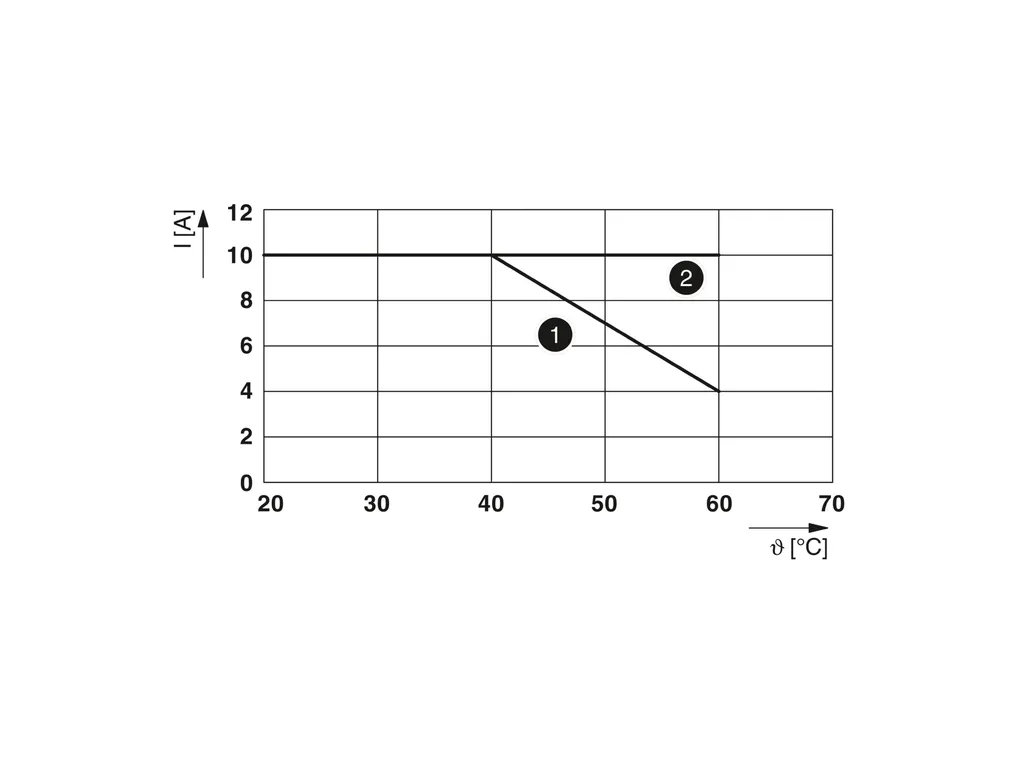

| Mounting | Mounting type: DIN rail mounting Assembly note: See derating curve Mounting position: any |
