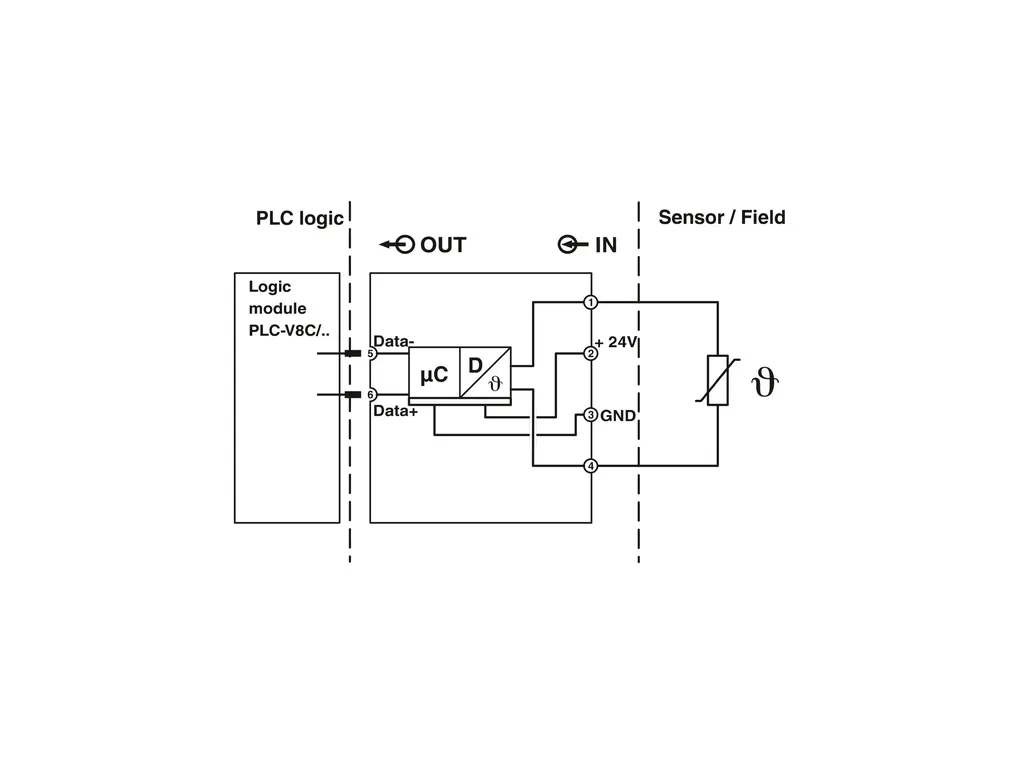

| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Product properties | Product type: Extension module Product family: PLC logic Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV Supply Rated control circuit supply voltage US: 24 VÃDC Rated control supply voltage range with reference to US: 0.8 ... 1.1 Rated control supply current IS: 14 mA Protective circuit: Reverse polarity protection Surge protection |
| Input data | Analog input resistance Sensor types (RTD) that can be used: Pt 100 (IEC 60751, ñ = 0,00385) Number of inputs: 1 Connection technology: 2-conductor Sensor input current: 900 õA Temperature measuring range: -50°C ... 200°C Maximum temperature coefficient: 0.01 %/K Maximum transmission error: 1 % Surge voltage protection: > 33 V Resolution: 10 bit (scaled to 0 to 1000) Analog input resistanceââ¬Ã¢¹ Sensor types (RTD) that can be used: Pt 1000 (IEC 60751, ñ = 0.00385) Number of inputs: 1 Connection technology: 2-conductor Sensor input current: 900 õA Temperature measuring range: -50°C ... 200°C Maximum temperature coefficient: 0.01 %/K Maximum transmission error: 1 % Surge voltage protection: > 33 V Resolution: 10 bit (scaled to 0 to 1000) |
| Output data | Digital Output name: Digital output Switching voltage range: 5 VÃDC ... 30 VÃDC Switching current: ââ°¤ 3 mA |
| Connection data | Connection method: Push-in connection Stripping length: 10 mm Number of connections: 4 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 |
| Signaling | Operating voltage display: Green LED Error indication: Red LED |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 86 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: ULÃ508 Listed |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
