| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Product properties | Product type: Extension module Product family: PLC logic Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV Supply Rated control circuit supply voltage US: 24 VÃDC Rated control supply voltage range with reference to US: 0.8 ... 1.1 Rated control supply current IS: ââ°¤ 28 mA Protective circuit: Reverse polarity protection Surge protection |
| Input data | Digital input Rated actuating voltage UC: 24 VÃDC Rated actuating current IC: ââ°¤ 1 mA |

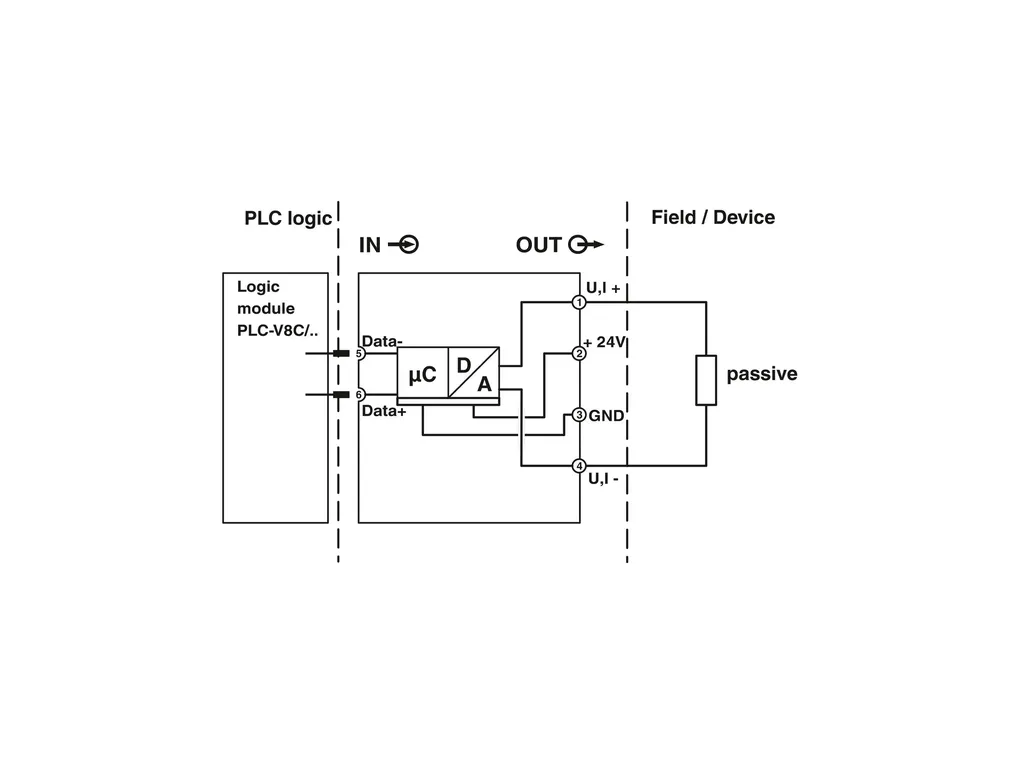

| Output data | Analog Output name: Analog voltage output Number of outputs: 1 Voltage output signal: 0 V ... 10 V 2 V ... 10 V Maximum output voltage: 12.3 V Ripple: < 20 mVPP Load/output load voltage output: 10 ké Surge voltage protection: > 33 V Maximum transmission error: 1 % Resolution: 10 bit (scaled to 0 to 1000) Protective circuit: Surge protection Analogââ¬Ã¢¹ Output name: Analog output for current Number of outputs: 1 Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA Maximum output current: 24.6 mA Load/output load current output: 500 é (20ÃmA) Surge voltage protection: > 33 V Maximum transmission error: 1 % Resolution: 10 bit Protective circuit: Surge protection |
| Connection data | Connection method: Push-in connection Stripping length: 10 mm Number of connections: 4 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 |
| Signaling | Operating voltage display: Green LED Error indication: Red LED |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 86 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: ULÃ508 Listed |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
