2907446 PHOENIX CONTACT -

PLC-V8C/PT-24DC/BM2 - Controller

PLClogic basic module, Generation2, with 16I/Os, for plug-in connection to eight digital or analog PLC-INTERFACE terminal blocks, can be extended to 48I/Os, real-time clock, micro USB female connector, accommodates memory module and Bluetooth adapter, Push-in connection

Product Code: 2907446 copia - copy

Partner cod.: 2907446 copia - copy

PHOENIX CONTACT

Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Product properties	Product type: Base unit Product family: PLC logic Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Air clearances and creepage distances between the power circuits Rated insulation voltage: 50 V Rated surge voltage: 0.8 kV Real-time clock Realtime clock: Yes Buffer period: 96 h (Capacitor) Accuracy realtime clock: Ã±2 s/d Supply Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 26.4 VÃDC Typical input current at U_N: 40 mA Maximum input current at U_N: 160 mA Protective circuit: Reverse polarity protection Surge protection
Input data	Digital inputs Number of inputs: Ã¢Ã¢°¤ 8 (2 configurable as analog) Description of the input: EN 61131-2, type 3 Input voltage: 24 VÃDC Signal level "0" signal: < 5 V Signal level "1" signal: > 11 V Input current "0" signal: < 1 mA Input current "1" signal: 2.5 mA Status display: Yellow LED Analog inputs Number of inputs: Ã¢Ã¢°¤ 2 (IN6 and IN7 are configurable as analog) Input voltage range: 0 V ... 10 V Input resistance: > 3.5 kÃ© Contact to PLC-INTERFACE Number of inputs: Ã¢Ã¢°¤ 8 Description of the input: technical data depends on the PLC-INTERFACE terminal block used Input voltage: 19 VÃDC Typical current consumption: 4 mA Input resistance: < 100 mÃ©
Output data	Number of outputs: Ã¢Ã¢°¤ 8 Nominal output voltage: 24 VÃDC Nominal current: 9 mA
Connection data	COMBICON connection Connection method: Push-in connection Stripping length: 9 mm Number of connections: 1 Number of positions: 10 Note: Device supply and 8 x inputs Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve) 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) Conductor cross section AWG: 26 ... 16 Programming connection Connection method: Micro USB type B Number of connections: 1 INTERFACE system Connection method: Spring-cage connection Stripping length: 6 mm Number of connections: 1 Number of positions: 3 Conductor cross section rigid: 0.14 mm² ... 0.5 mm² Conductor cross section flexible: 0.2 mm² ... 0.5 mm² Conductor cross section AWG: 26 ... 20 PLC logic - bus Connection method: Insulation displacement connection Number of connections: 1 Number of positions: 4 Memory Connection method: S-PORT (socket) Number of connections: 1 Number of positions: 12 Note: For connecting the memory module
Signaling	Status display: Green LED

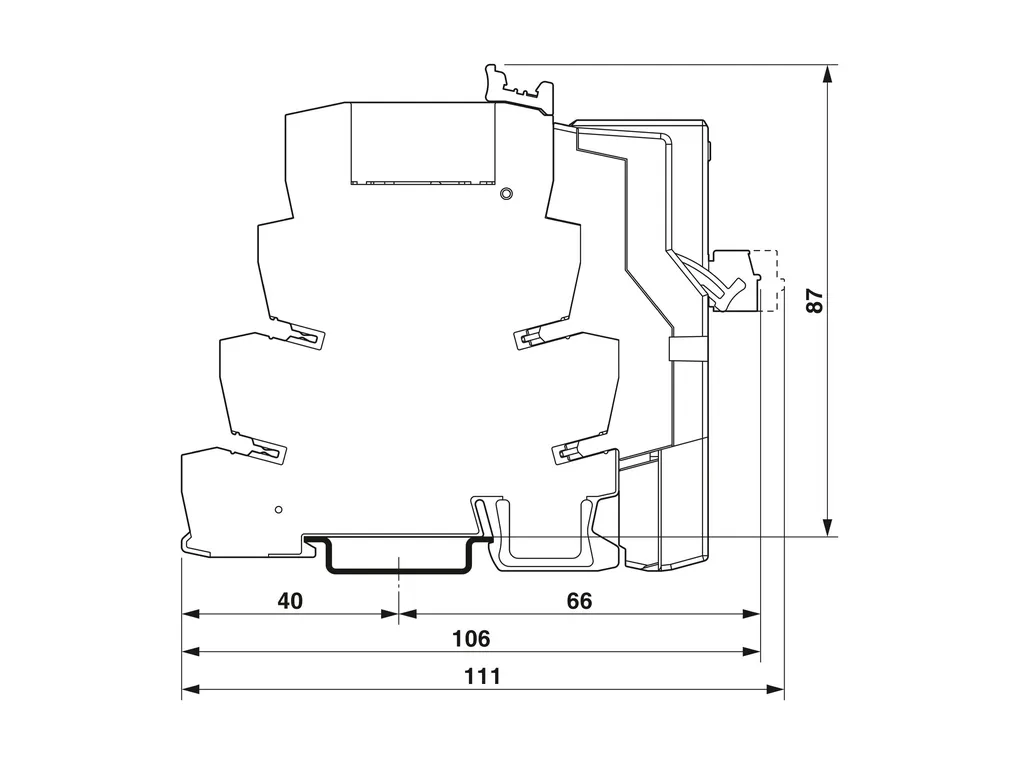

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e6c5f9bfcfe39b41957112138e950624/-S204x204-FJPG Width: 50 mm Height: 48.5 mm 111 mm (with relay) Depth: 82.5 mm 87 mm (with relay)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Max. permissible relative humidity (operation): 95 %
Approvals	CE Certificate: CE-compliant UL, USA/Canada Identification: Class I, Div. 2, Groups A, B, C, D T4 UL, Canada Identification: Class I, Zone 2, Ex nA IIC Gc T4 X UL, USA Identification: Class I, Zone 2, AEx nA IIC T4
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: DINÃENÃ50178
Mounting	Mounting type: Plug-in mounting Assembly instructions: can be plugged onto 8 x PLC-INTERFACE terminal blocks Mounting position: any
