REL-PR1-110DC/1/MB - Single relay

Plug-in high-power relay with power contacts, specifically for switching high DC loads, 1 N/O contact, blowout magnet, coil voltage: 110 V DC

Product Code: 2908044 copia - copy

Partner cod.: 2908044 copia - copy

PHOENIX CONTACT

Product properties	Product type: Single relay Operating mode: 100% operating factor Mechanical service life: approx. 2x 10⁷ cycles Insulation characteristics Overvoltage category: III Pollution degree: 3
Electrical properties	Service life electrical: see diagram Maximum power dissipation for nominal condition: 1.65 W Test voltage (Winding/contact): 2.5 kV (50ÃHz, 1Ãmin., winding/contact) Rated surge voltage: 4 kV
Input data	Coil side Nominal input voltage U_N: 110 VÃDC Input voltage range: 93.5 VÃDC ... 121 VÃDC Input voltage range in reference to U_N: see diagram Drive and function: monostable Drive (polarity): non-polarized Typical input current at U_N: 15 mA Typical response time: 20 ms Typical release time: 15 ms

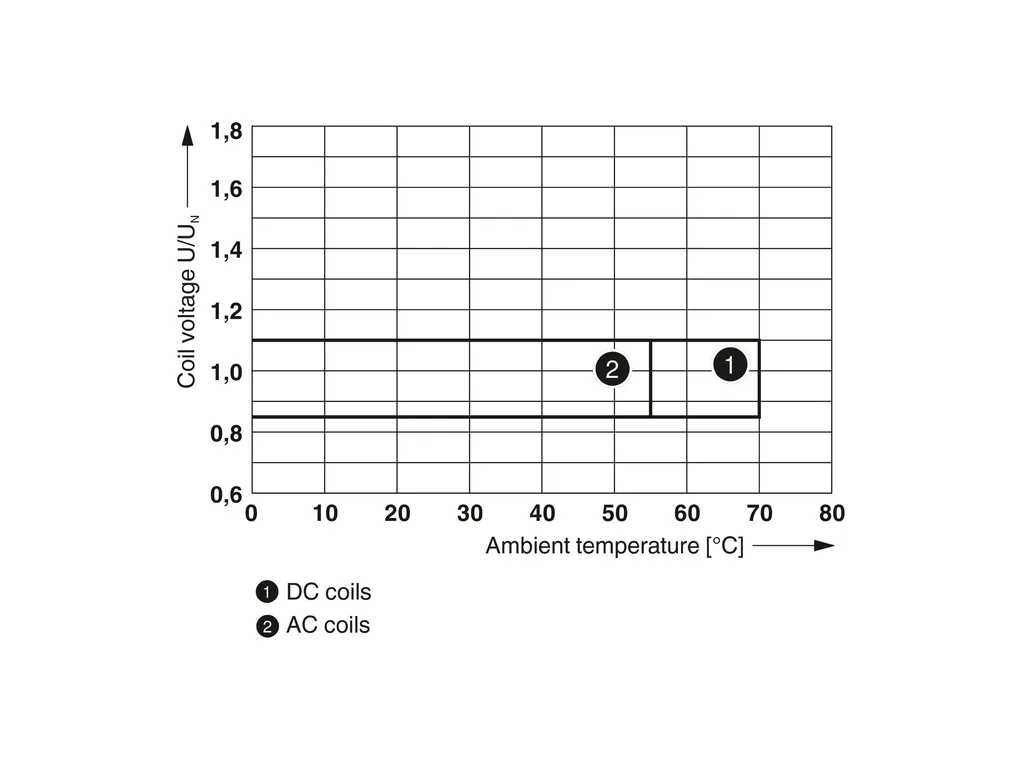

Output data	Switching Contact switching type: 1 N/O contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 440 VÃAC 250 VÃDC Minimum switching voltage: 5 V (At 24 mA) Limiting continuous current: 16 A Maximum inrush current: 50 A (20Ãms) 30 A (4 s) Min. switching current: 5 mA (at 24ÃV) Interrupting rating (ohmic load) max.: 384 W (at 24 V DC) 744 W (at 48 V DC) 900 W (at 60 V DC) 1540 W (at 110 V DC) 2640 W (at 220 V DC) 4000 VA (for 250 V AC) Switching capacity min.: 120 mW Switching capacity: 1 A (220ÃV, DC13) 1.5 A (240ÃV, AC15) 16 A (24ÃVÃDC, L/R = 40Ãms) 12 A (48ÃVÃDC, L/R = 40Ãms) 9.5 A (60ÃVÃDC, L/R = 40Ãms) 5.4 A (110ÃVÃDC, L/R = 40Ãms) 3 A (220ÃVÃDC, L/R = 40Ãms) 2.7 A (250ÃVÃDC, L/R = 40Ãms)
Connection data	Connection method: Plug-in connection
Dimensions	Width: 38.6 mm Height: 36.1 mm Depth: 45.5 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: RT I Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations: IEC 60664 IEC 61810
Mounting	Mounting position: any
