| Product properties | Product type: Single relay Operating mode: 100% operating factor Mechanical service life: 5x 106 cycles Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.41 W Test voltage (Winding/contact): 5 kV AC (50ÃHz, 1Ãmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kV AC (50ÃHz, 1Ãmin., changeover contact/changeover contact) Rated insulation voltage: 250 VÃAC |

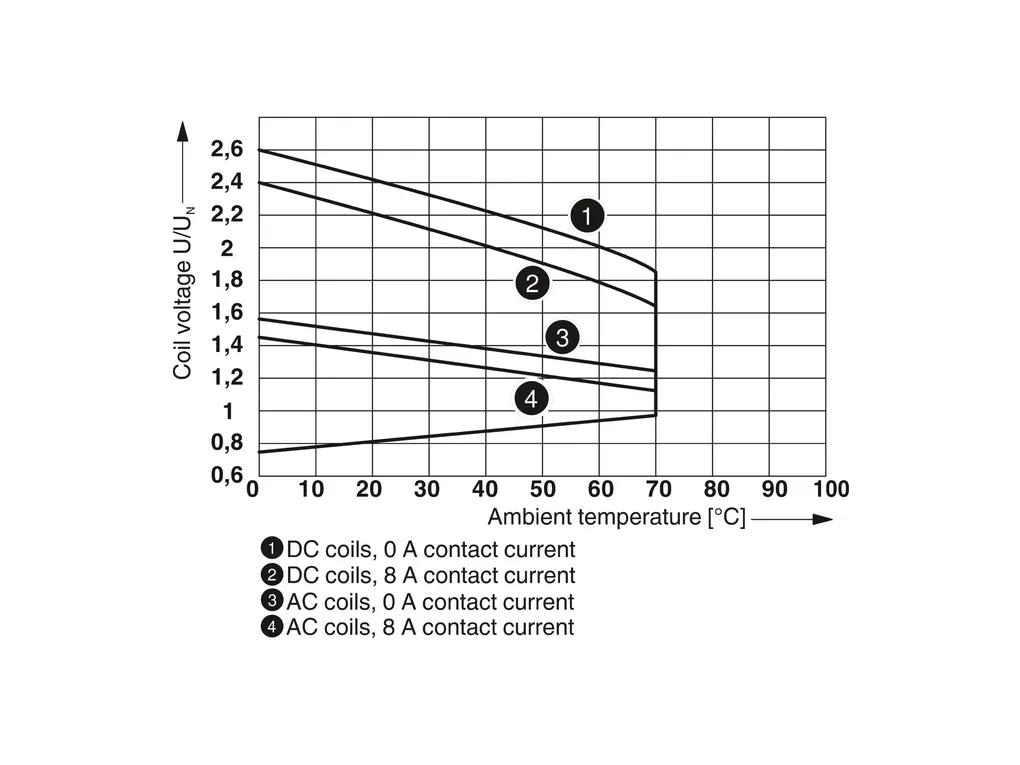

| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 19.2 VÃDC ... 52.8 VÃDC Input voltage range in reference to UN: 0.8 ... 2.2 (see diagram) Drive and function: monostable Drive (polarity): non-polarized Typical input current at UN: 17 mA Typical response time: 9 ms Typical release time: 6 ms |
| Output data | Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (at 10 mA) Limiting continuous current: 8 A Maximum inrush current: 16 A (20Ãms) Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 192 W (at 24 V DC) 62 W (at 48 V DC) 42 W (at 60 V DC) 55 W (at 110 V DC) 66 W (at 220 V DC) |
| Connection data | Connection method: Plug / solder connection |
| Dimensions | Width: 13 mm Height: 29 mm Depth: 25.5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: RT II Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Standards and regulations | Standards/regulations: IEC 61810 IEC 60664 |
| Mounting | Mounting position: any |
