| Product properties | Product type: Interface module Product family: VARIOFACE Professional Number of positions: 14 No. of channels: 4 |
| Electrical properties | No. of channels: 4 Max. permissible operating voltage: 25 VÃAC 60 VÃDC Max. current carrying capacity per branch: 1 A Max. total current of voltage supply: 7 A Supported controller SIEMENS S7-1500 Suitable I/O card: 6ES7531-7KF00-0AB0 6ES7531-7LH00-0AB0 6ES7531-7MH00-0AB0 6ES7531-7NF00-0AB0 6ES7531-7NF10-0AB0 6ES7531-7PF00-0AB0 6ES7532-5HF00-0AB0 6ES7532-5HD00-0AB0 6ES7532-5ND00-0AB0 6ES7531-7QF00-0AB0 6ES7550-1AA01-0AB0 6ES7551-1AB01-0AB0 6ES7552-1AA00-0AB0 6ES7553-1AA00-0AB0 |
| Connection data | Field level Connection method: Screw connection Stripping length: 8 mm Screw thread: M 3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Controller level Connection method: IDC/FLK pin strip Number of connections: 2 Number of positions: 14 Pitch: 2.54 mm |
| Signaling | Status display: No Status display present: No |

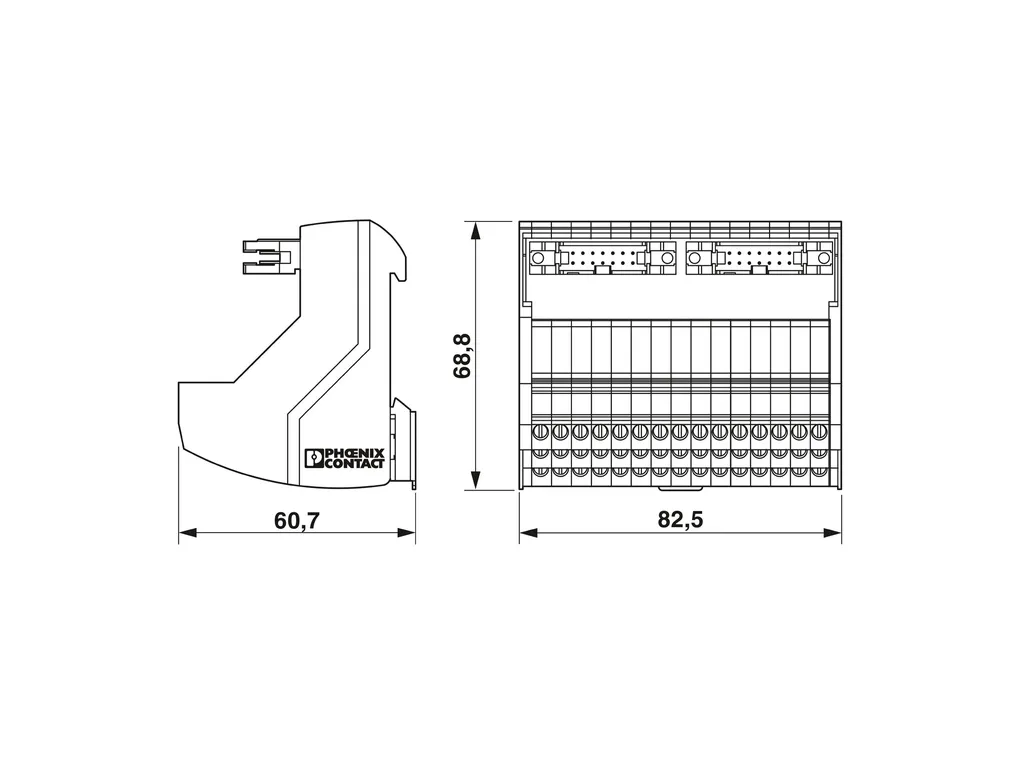

| Dimensions | Item dimensions Width: 82.5 mm Height: 68.8 mm Depth: 60.7 mm |
| Material specifications | Housing insulation material: Polyamide PA non-reinforced |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
