2909641 PHOENIX CONTACT -

Product properties	Product type: Single relay Operating mode: 100% operating factor Mechanical service life: 1x 10⁷cycles Insulation characteristics Overvoltage category: III Pollution degree: 3
Electrical properties	Maximum power dissipation for nominal condition: 0.17 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact)

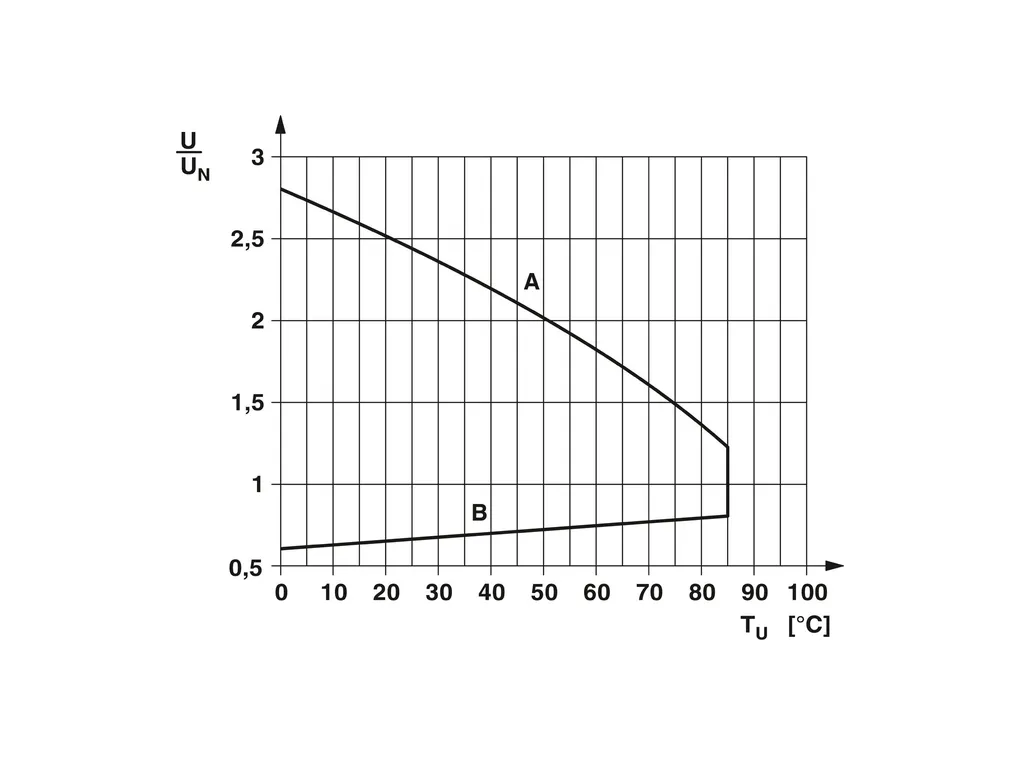

Input data	Coil side Nominal input voltage U_N: 12 VÃDC Input voltage range: 7.2 VÃDC ... 33 VÃDC Input voltage range in reference to U_N: see diagram Drive and function: monostable Drive (polarity): non-polarized Typical input current at U_N: 14 mA Typical response time: 5 ms Typical release time: 2.5 ms Coil resistance: 848 Ã© Ã±10Ã% (at 20Ã°C)
Output data	Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgSnO Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (at 100 mA) Limiting continuous current: 6 A Maximum inrush current: 10 A (4 s) Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15) Motor load according to UL 508: 1/4ÃHP, 240 - 277ÃVÃAC (N/O contact) 1/6ÃHP, 240 - 277ÃVÃAC (N/C contact)
Connection data	Connection method: Plug / solder connection
Dimensions	Width: 5 mm Height: 28 mm Depth: 16 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: RT II Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations: IEC 60664 ENÃ50178 ENÃ61810-1
Mounting	Assembly instructions: in rows with zero spacing Mounting position: any
