PHOENIX CONTACT 2909848
PHOENIX CONTACT 2909848
PHOENIX CONTACTNot available

RIF-1-RSC-LDP-24DC/2X21/FG - Relay Module

Preassembled relay module with screw connection, consisting of: relay base, safety relay with force-guided contacts in accordance with DINEN61810-3, plug-in display/interference suppression module, and retaining bracket, contact switching type: 2 changeover contacts, input voltage: 24VDC
Product Code: 2909848 copia - copy
Partner cod.: 2909848 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Relay Module
Product family: RIFLINEÂcomplete
Application: Forcibly guided contacts
Operating mode: 100% operating factor
Mechanical service life: approx. 107 cycles
B10d: 600000 Cycles (AC1; 250ÂVÂ/Â6ÂA; 1 NO)
900000 Cycles (AC1; 250ÂVÂ/Â3ÂA; 1ÂNO)
1800000 Cycles (AC1; 250ÂVÂ/Â1,5ÂA; 1ÂNO)
300000 Cycles (DC13; 24ÂVÂ/Â3ÂA; 1ÂNO)
1000000 Cycles (DC13; 24ÂVÂ/Â1,5ÂA; 1ÂNO)
3000000 Cycles (DC13; 24ÂVÂ/Â0,75ÂA; 1ÂNO)
Insulation characteristics: Air clearances and creepage distances between the power circuits
Insulation: Safe isolation between input and output
Basic insulation between the changeover contacts
Overvoltage category: III
Pollution degree: 2
Electrical propertiesMaximum power dissipation for nominal condition: 0.72 W
Test voltage (Winding/contact): 4 kVrms (50ÂHz, 60Âs)
Test voltage (): 1.5 kVrms (50ÂHz, 60Âs)
Test voltage (Changeover contact/changeover contact): 2.5 kVrms (50ÂHz, 60Âs)
Air clearances and creepage distances between the power circuits
Rated insulation voltage: 250 VÂAC (Input/output)
Rated surge voltage: 6 kV (Input/output)
4 kV (between the changeover contacts)
Short-circuit protection device
Current: 10 A (RT28-32)
Voltage: 500 V (SCPD)
Short-circuit current: 1 kA (conditional short-circuit current)
Input dataCoil side
Nominal operating voltage UN: 24 VÂDC
Input voltage range: 20.4 VÂDC ... 28.8 VÂDC (20°C)

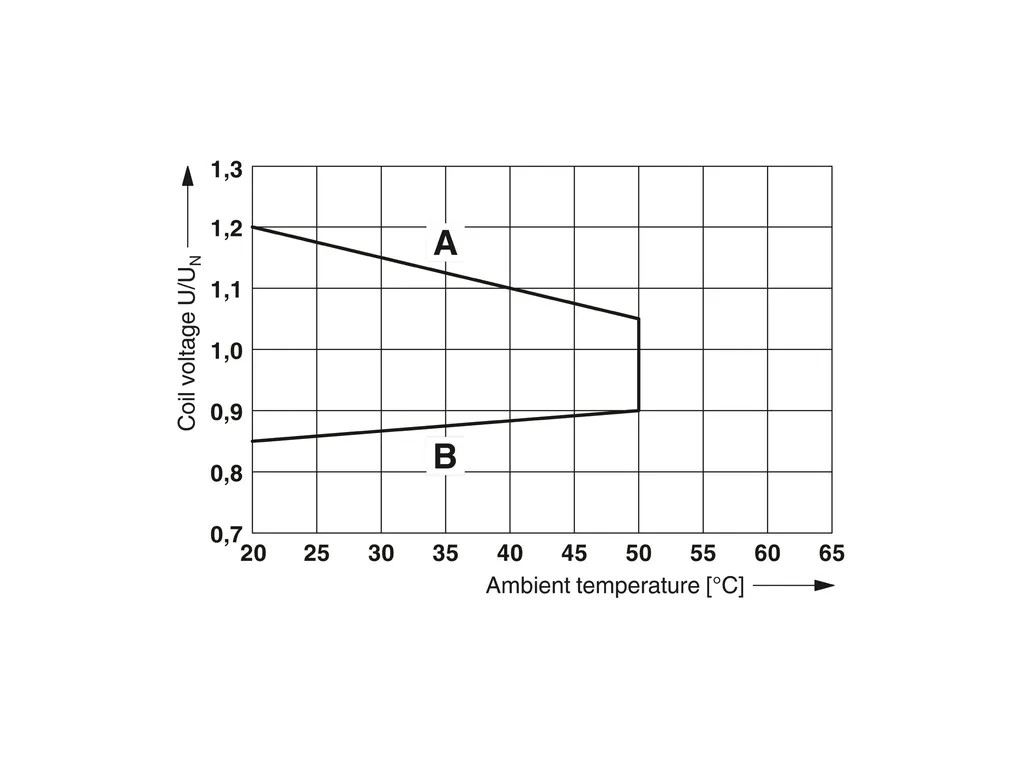

Input voltage range in reference to UN: see diagram
Drive and function: monostable
Drive (polarity): polarized
Typical input current at UN: 30 mA
Typical response time: 15 ms
Typical release time: 10 ms
Coil voltage: 24 VÂDC
Protective circuit: Freewheeling diode
Operating voltage display: Yellow LED
Output dataSwitching
Contact switching type: 2 changeover contacts, forcibly actuated
Type of switch contact: Single contact
Contact material: AgSnO
Maximum switching voltage: 250 V AC/DC
Limiting continuous current: 6 A
Interrupting rating (ohmic load) max.: 144 W (24ÂVÂDC)
58 W (48ÂVÂDC)
54 W (60ÂVÂDC)
55 W (110ÂVÂDC)
55 W (220ÂVÂDC)
1500 VA (250ÂVÂAC)
Utilization category CB Scheme (IEC 60947-5-1): AC15, 3 A/240 V (N/O contact)
Connection dataConnection method: Screw connection
Stripping length: 8 mm
Conductor cross section rigid: 0.5 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section): 0.5 mm² ... 2.5 mm²
Conductor cross section flexible: 0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section): 0.5 mm² ... 2.5 mm²
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG: 20 ... 10 (solid)
20 ... 12 (flexible)
Tightening torque: 0.5 Nm ... 0.6 Nm
DimensionsWidth: 16 mm
Height: 90 mm
Depth: 75 mm
Material specificationsFlammability rating according to UL 94: V2 (Housing)
Environmental and real-life conditionsAmbient conditions
Degree of protection (Relay base): IP20 (Relay base)
Degree of protection (Relay): RT I (Relay)
Ambient temperature (operation): -25°C ... 60°C
Ambient temperature (storage/transport): -25°C ... 85°C
Altitude: ≤ 2000 m
ApprovalsCE
Certificate: CE-compliant
UKCA
Certificate: UKCA-compliant
Corrosive gas test
Identification: ISA-S71.04. G3 Harsh Group
ENÂ60068-2-60
Standards and regulationsAll specifications in accordance with the standard
Standards/regulations: IEC 60947-5-1
IEC 61810-3
Air clearances and creepage distances between the power circuits
Standards/regulations: DINÂENÂ60947-5-1
MountingMounting type: DIN rail mounting
Assembly instructions: in rows with zero spacing
Mounting position: any
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Application_note_00006.pdf

Manufacturer_declaration_01057.pdf

Manufacturer_declaration_03120.pdf

Manufacturer_declaration_16477.pdf

Package_slip_02193.pdf

Product_information_00033.pdf

Product_information_00749.pdf

Technical_drawing_40866.pdf
