| Product properties | Product type: Relay Module Product family: PLC-INTERFACE Application: Palm switch Operating mode: 100% operating factor Mechanical service life: 5x 106 cycles Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristics: Standards/regulations Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 1.15 W Test voltage (Winding/contact): 4 kVrms (50ÂHz, 1Âmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kVrms (50ÂHz, 1Âmin., changeover contact/changeover contact) Standards/regulations Rated insulation voltage: 250 VÂAC Rated surge voltage: 6 kV |

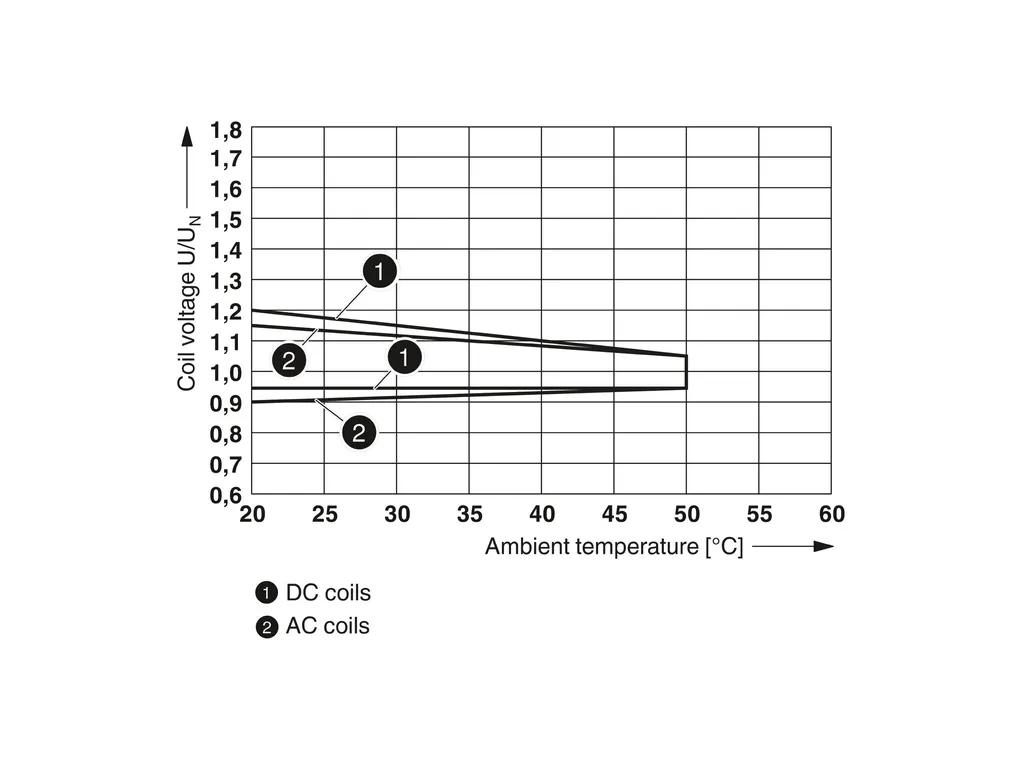

| Input data | Coil side Nominal input voltage UN: 230 VÂAC 220 VÂDC Input voltage range: 207 VÂAC ... 264.5 VÂAC (20°C) 209 VÂDC ... 264 VÂDC (20°C) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 5 mA Typical response time: 6 ms (220ÂVÂDC) 3 ms ... 15 ms (230 V AC) Typical release time: 10 ms (220ÂVÂDC) Typical release time range: 3 ms ... 15 ms (230 V AC) Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÂAC 36 VÂDC Minimum switching voltage: 12 V (1ÂmA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (12ÂV) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (10ÂmA) Limiting continuous current: 6 A Maximum inrush current: 12 A (20Âms) Min. switching current: 10 mA (12ÂV) Interrupting rating (ohmic load) max.: 192 W (24ÂVÂDC) 62 W (48ÂVÂDC) 42 W (60ÂVÂDC) 55 W (110ÂVÂDC) 66 W (220ÂVÂDC) 2000 VA (250ÂVÂAC) Switching capacity: 1 A (24ÂV, DC13) 1.5 A (230 V, AC15) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm |
| Dimensions | Width: 14 mm Height: 80 mm Depth: 104 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay): RT II (Relay) Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Installation location): ≥ IP54 (Installation location) Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 85°C Altitude: ≤ 2000 m |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA Identification: ULÂ508 ULÂ508 Recognized UL, USA/Canada Identification: ULÂ508 ULÂ508 Recognized Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÂ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Standards/regulations Standards/regulations: ENÂ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
