| Product properties | Product type: Relay Module Product family: PLC-INTERFACE Application: Forcibly guided contacts Operating mode: 100% operating factor Mechanical service life: approx. 107 cycles B10d: 600000 Cycles (AC1; 250ÂVÂ/Â6ÂA; 1 NO) 900000 Cycles (AC1; 250ÂVÂ/Â3ÂA; 1ÂNO) 1800000 Cycles (AC1; 250ÂVÂ/Â1,5ÂA; 1ÂNO) 180000 Cycles (AC15; 250ÂVÂ/Â3ÂA; 1ÂNO) 560000 Cycles (AC15; 250ÂVÂ/Â2ÂA; 1ÂNO) 4600000 Cycles (AC15; 250ÂVÂ/Â0,75ÂA; 1ÂNO) 360000 Cycles (DC13; 24ÂVÂ/Â3ÂA; 1ÂNO) 740000 Cycles (DC13; 24ÂVÂ/Â1,5ÂA; 1ÂNO) 4200000 Cycles (DC13; 24ÂVÂ/Â0,75ÂA; 1ÂNO) Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristics: Standards/regulations Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.72 W Test voltage (Winding/contact): 4 kVrms (50ÂHz, 1Âmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kVrms (50ÂHz, 1Âmin., changeover contact/changeover contact) Standards/regulations Rated insulation voltage: 250 VÂAC Rated surge voltage: 6 kV |

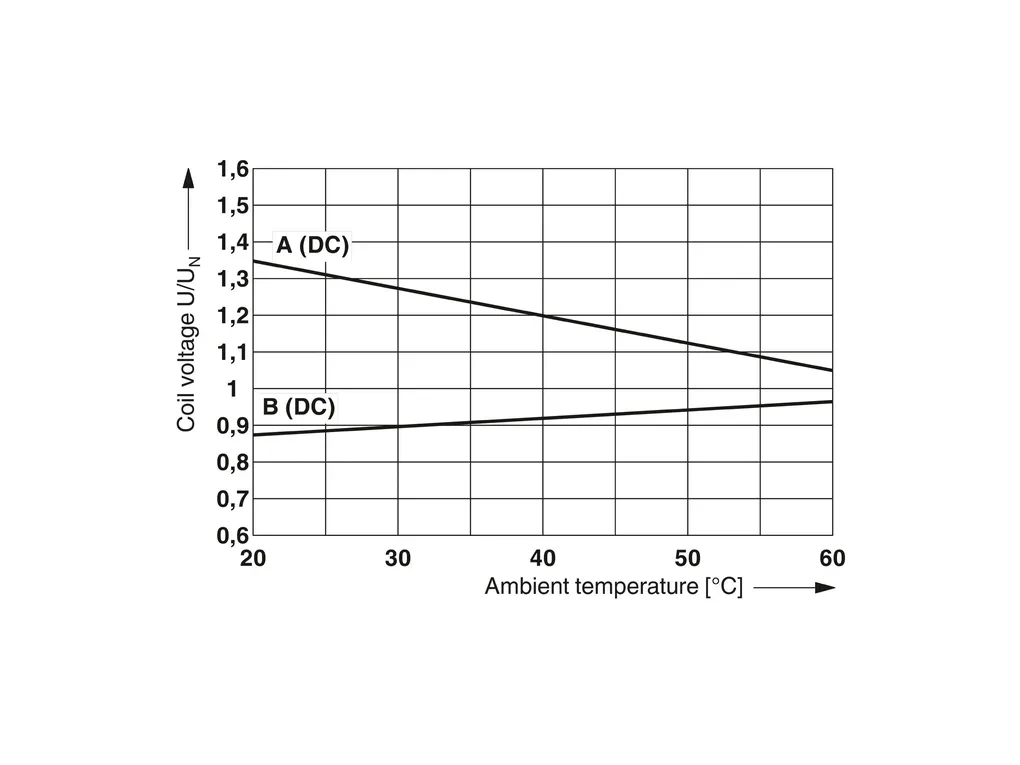

| Input data | Coil side Nominal input voltage UN: 24 V AC/DC Input voltage range: 20.9 VÂDC ... 32.4 VÂDC (20°C) Input voltage range in reference to UN: see diagram Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 30 mA Typical response time: 3 ms ... 15 ms Typical release time range: 3 ms ... 15 ms Coil voltage: 24 VÂDC Protective circuit: Bridge rectifier Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 2 changeover contacts, forcibly actuated Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (10ÂmA) Limiting continuous current: 6 A Maximum inrush current: 6 A Min. switching current: 10 mA (5 V) Interrupting rating (ohmic load) max.: 144 W (24ÂVÂDC) 288 W (48ÂVÂDC) 88 W (110ÂVÂDC) 110 W (220ÂVÂDC) 1500 VA (250ÂVÂAC) Switching capacity min.: 150 mW Switching capacity: 3 A (24ÂV, DC13) 3 A (230 V, AC15) Force-guided contacts in accordance with ENÂ61810-3: Type B |
| Connection data | Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 |
| Dimensions | Width: 14 mm Height: 80 mm Depth: 104 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay): RT II (Relay) Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Installation location): ≥ IP54 (Installation location) Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 85°C Altitude: ≤ 2000 m |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA Identification: ULÂ508 ULÂ508 Recognized UL, USA/Canada Identification: ULÂ508 ULÂ508 Recognized Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÂ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Standards/regulations Standards/regulations: IEC 60947-5-1 DINÂENÂ61810-3 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
