| Notes | General: Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place. |
| Product properties | Product type: Relay Module Product family: DEK Application: Output function Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.12 W Test voltage (Winding/contact): 2 kV AC (50ÃHz, 1Ãmin., winding/contact) |

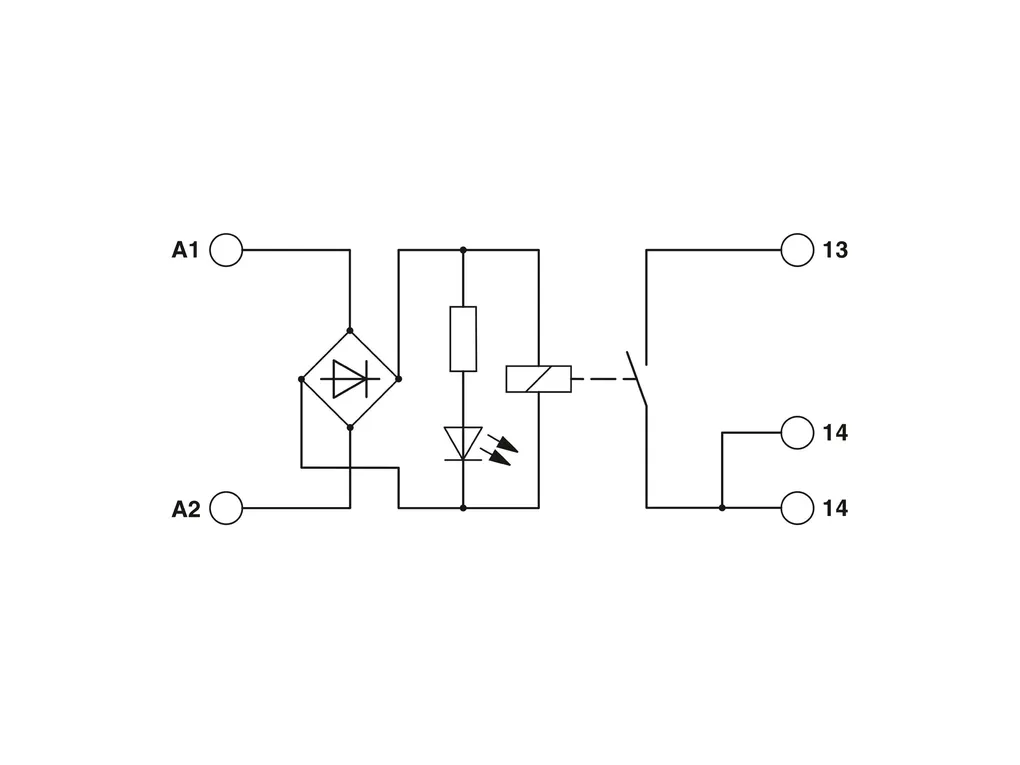

| Input data | Coil side Nominal input voltage UN: 5 V AC/DC Input voltage range: 4.5 V AC/DC ... 5.5 V AC/DC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 23 mA Typical response time: 8 ms Typical release time: 15 ms Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1 N/O contact Type of switch contact: Double contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 250 VÃAC 125 VÃDC Minimum switching voltage: 0.1 V Limiting continuous current: 3 A (5 A up to 35°C at 24 V DC) Maximum inrush current: 5 A Min. switching current: 1 mA Interrupting rating (ohmic load) max.: 72 W (at 24 V DC) 60 W (at 48 V DC) 50 W (at 60 V DC) 50 W (at 110 V DC) 750 VA (for 250 V AC) 120 W (at 24 V DC - up to 35°) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 56 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
