| Notes | General: Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place. |
| Product properties | Product type: Solid-state relay module Product family: DEK Application: Output function Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.1 W Test voltage (Input/output): 2.5 kV AC (Input/output) |
| Input data | Nominal input voltage UN: 12 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 9.6 VÃDC ... 14.4 VÃDC Switching threshold "0" signal in reference to UN: ââ°¤ 0.4 Switching threshold "1" signal in reference to UN: ââ°¥ 0.8 Typical input current at UN: 8.5 mA Typical response time: 40 õs Typical turn-off time: 200 õs Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection Transmission frequency: 300 Hz |

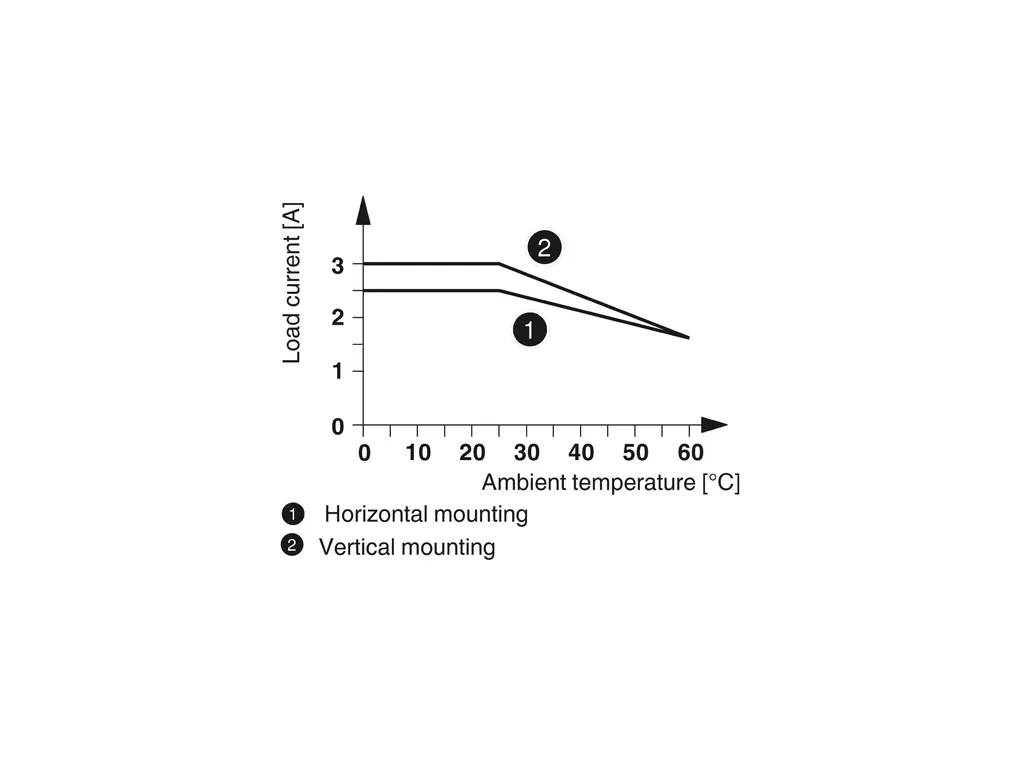

| Output data | Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 3 VÃDC ... 30 VÃDC Limiting continuous current: 3 A (see derating curve) Voltage drop at max. limiting continuous current: ââ°¤ 0.2 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 56 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
