2942111 PHOENIX CONTACT -

EMG 10-REL/KSR-G 24/ 2-LC - Relay Module

Relay module, with soldered-in miniature switching relay, contact (AgNi): Medium to large loads, 1 N/C contact, input voltage 24VDC

Product Code: 2942111 copia - copy

Partner cod.: 2942111 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Relay Module Product family: EMG Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 2x 10⁷ cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.5 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact)
Input data	Coil side Nominal input voltage U_N: 24 VÃDC Input voltage range: 19.2 VÃDC ... 26.4 VÃDC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 21 mA Typical response time: 7 ms Typical release time: 11 ms Protective circuit: Reverse polarity protection; Polarity protection diode Freewheeling diode; Freewheeling diode Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 1 N/C contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Limiting continuous current: 6 A Maximum inrush current: 8 A Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 60 W (at 48 V DC) 45 W (at 60 V DC) 35 W (at 110 V DC) 55 W (at 220 V DC) 1500 VA (for 250 V AC)

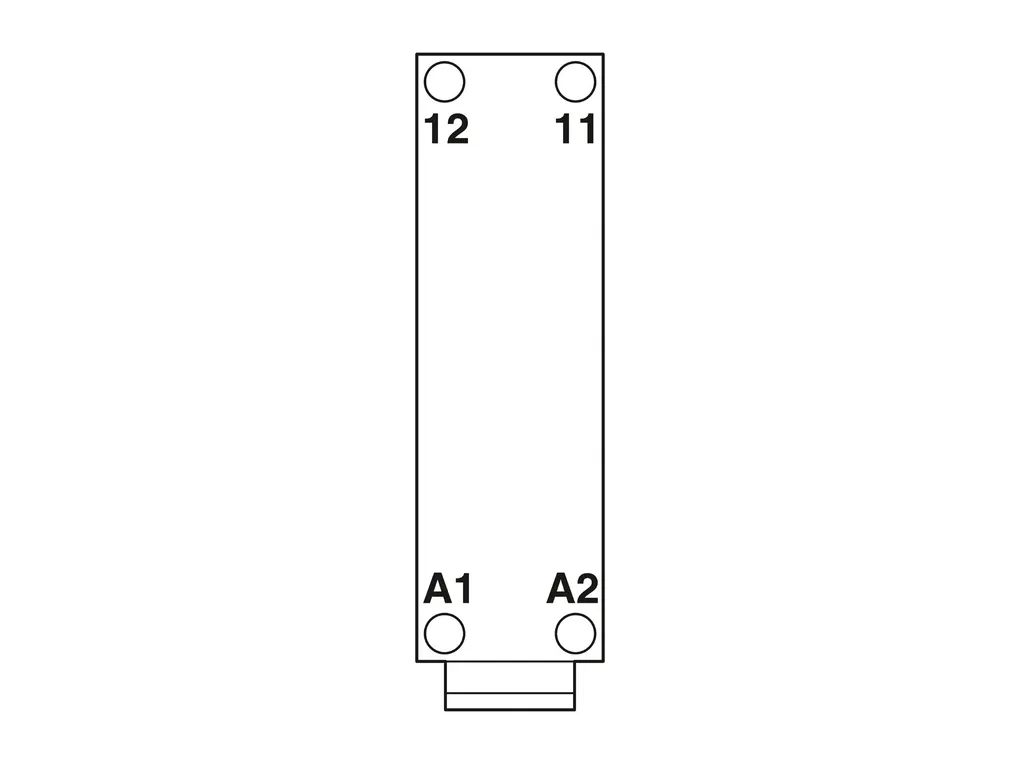

Connection data	Coil side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Contact side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Width: 10.6 mm Height: 75 mm Depth: 53.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 40°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 ENÃ50178
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
