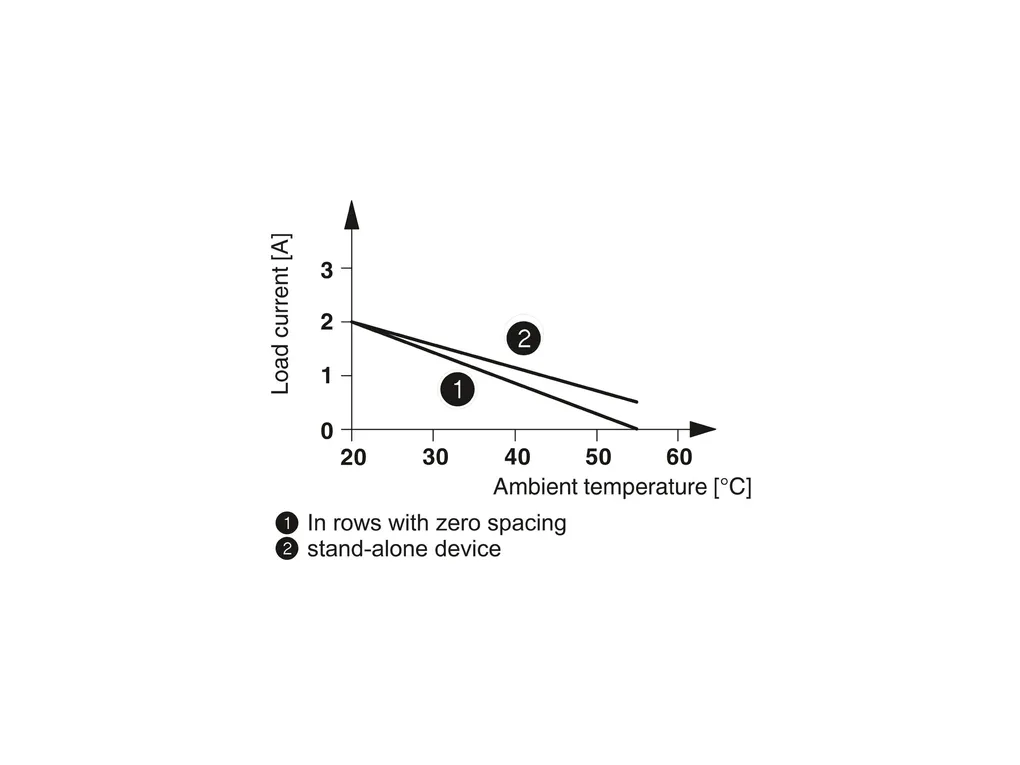

| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Solid-state relay module Application: Filter to prevent interference Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.19 W Test voltage (Input/output): 3.5 kV AC (Input/output) |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal, voltage: ââ°¤ 16 VÃDC Switching threshold "1" signal voltage: ââ°¥ 16.8 VÃDC Typical input current at UN: 8 mA Typical response time: 20 õs Typical turn-off time: 200 õs Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Transmission frequency: 300 Hz |
| Output data | Contact switching type: 1 N/O contact Design of digital output: electronic Output nominal voltage: 48 VÃDC Output voltage range: 12 VÃDC ... 48 VÃDC Limiting continuous current: 2 A (see derating curve) Maximum inrush current: 5 A (tÃ=Ã1Ãs) Peak offstate voltage: 60 VÃDC (Collector-emitter reverse voltage) Voltage drop at max. limiting continuous current: 1.1 V Output circuit: 3-conductor, ground-referenced Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection; Suppressor diode |
| Connection data | Input side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Output side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 17.5 mm Height: 75 mm Depth: 102 mm |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 55°C Ambient temperature (storage/transport): -10°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 ENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: Mounted in rows with zero spacing: Horizontal/not in rows: Any |
