| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |

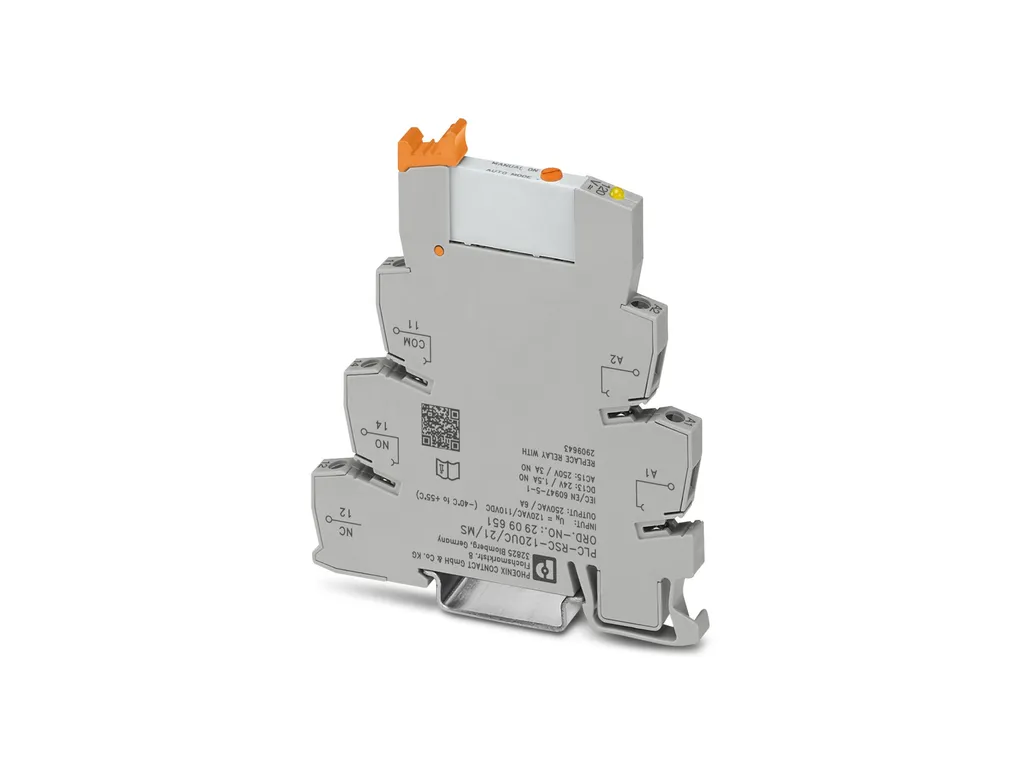

| Product properties | Product type: Relay Module Operating mode: 100% operating factor Mechanical service life: 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 1.15 W Test voltage (Winding/contact): 2.5 kV AC (50ÃHz, 1Ãmin., winding/contact) |
| Input data | Coil side Nominal input voltage UN: 230 V AC/DC Input voltage range: 184 V AC/DC ... 243.8 V AC/DC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 5 mA Typical response time: 7 ms Typical release time: 11 ms Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Double contact Contact material: AgPd60 5 õm hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Limiting continuous current: 0.5 A Maximum inrush current: 0.2 A Interrupting rating (ohmic load) max.: 5 W (at 24 V DC) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Maximum switching voltage: 125 VÃAC Minimum switching voltage: 150 VÃDC Limiting continuous current: 2 A Maximum inrush current: 2 A Interrupting rating (ohmic load) max.: 29 W (at 24 V DC) 29 W (at 48 V DC) 29 W (at 60 V DC) |
| Connection data | Coil side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Contact side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 17.5 mm Height: 75 mm Depth: 62.5 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 664 IEC 664 A DINÃVDEÃ0110 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
