| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Relay Module Product family: EMG Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 5x 107 cycles Insulation characteristics Insulation: Basic insulation Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 1.15 W Test voltage (Winding/contact): 5 kVrms (50ÃHz, 1Ãmin., winding/contact) Rated insulation voltage: 260 VÃAC Rated surge voltage: 4 kV |

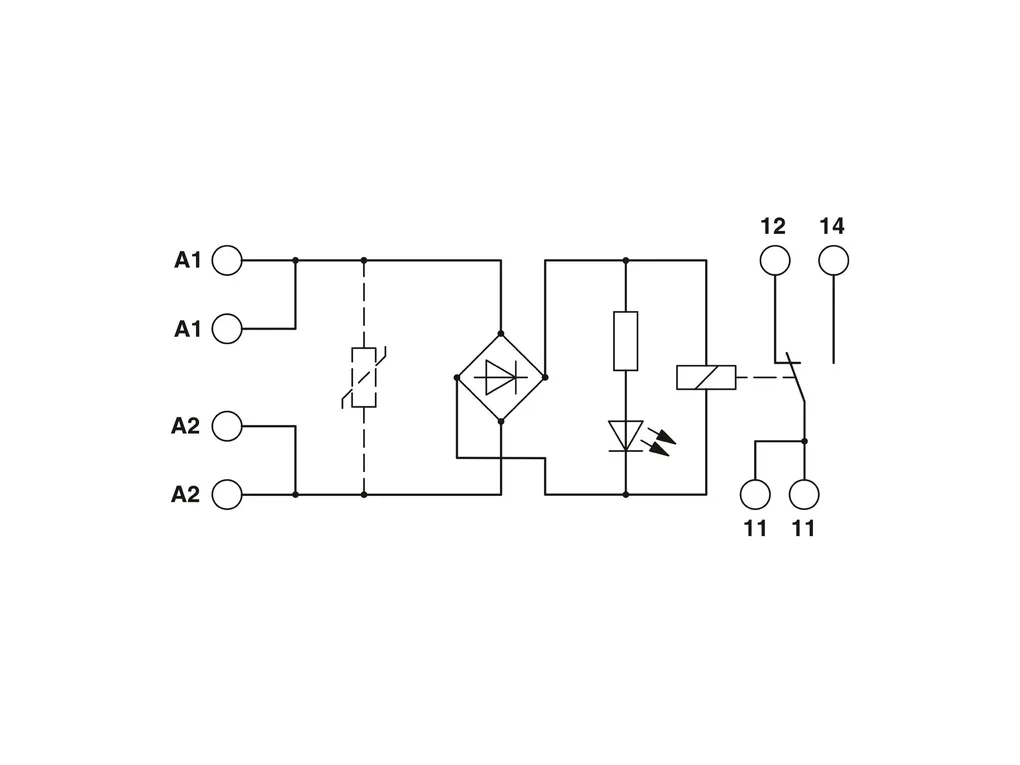

| Input data | Coil side Nominal input voltage UN: 230 V AC/DC Input voltage range: 207 V AC/DC ... 243.8 V AC/DC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 5 mA Typical response time: 8 ms Typical release time: 10 ms Protective circuit: Bridge rectifier; Bridge rectifier Varistor; Varistor Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Limiting continuous current: 50 mA Maximum inrush current: 50 mA Interrupting rating (ohmic load) max.: 1.2 W (at 24 V DC) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Maximum switching voltage: 250 V AC/DC Limiting continuous current: 6 A Maximum inrush current: 8 A Interrupting rating (ohmic load) max.: 144 W (at 24 V DC) 58 W (at 48 V DC) 48 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 1500 VA (for 250 V AC) |
| Connection data | Coil side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Contact side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 22.5 mm Height: 75 mm Depth: 62.5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
