2952185 PHOENIX CONTACT -

EMG 45-REL/IR-W230/HWR - Relay Module

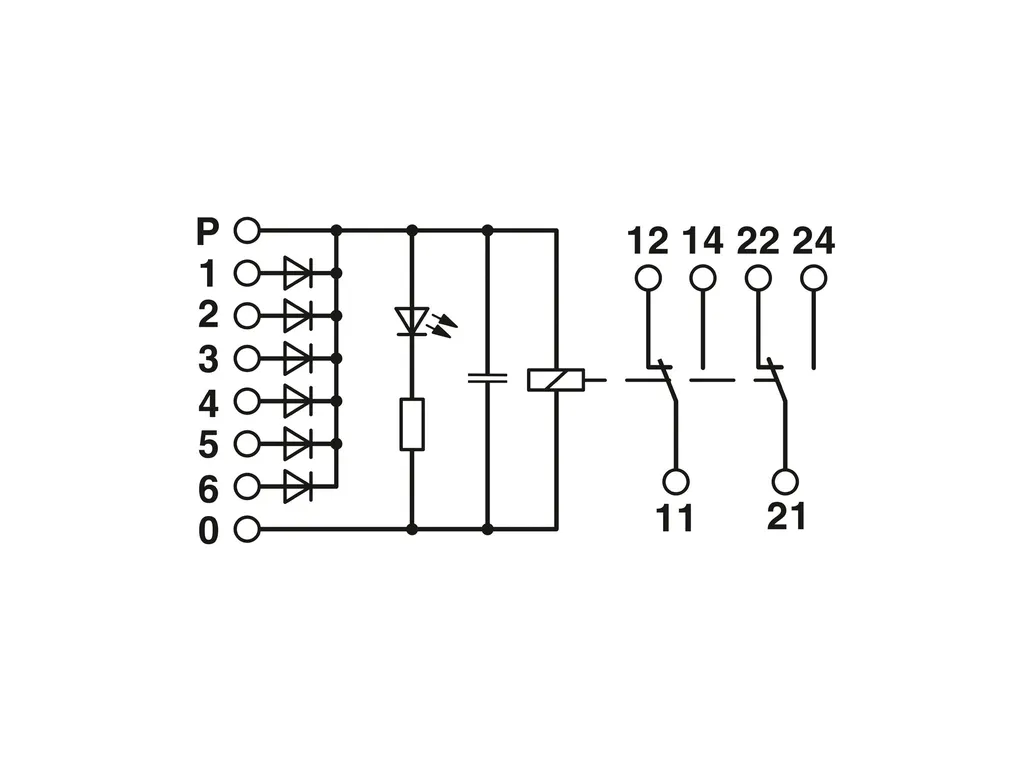

Relay module, with soldered-in industrial relay, contact: 2 changeover contacts, for multi-input fault warnings, with input diode gate in P polarity (6 diodes 1N4007) and capacitor parallel to the coil as well as a multi-input LED display, input voltage 230 V AC

Product Code: 2952185 copia - copy

Partner cod.: 2952185 copia - copy

PHOENIX CONTACT

Notes	General: During installation, the system must be connected in phase. Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Relay Module Product family: EMG Application: Fault reporting system Mechanical service life: > 10⁷ cycles Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 3.68 W Test voltage (Winding/contact): 2 kV AC (50ÃHz, 1Ãmin., winding/contact)
Input data	Diode Description of the input: 6 diodes, with P polarity Diode type: 1 N 4007 Max. operating voltage U_max: 250 VÃAC Peak reverse voltage per diode: 1300 V Reverse current per diode: 30 ÃµA Conducting state voltage per diode: approx. 0.8 V Conducting state current per diode: 0.7 A (with single load) 0.2 A (with simultaneous loads) Coil side Nominal input voltage U_N: 230 VÃAC Input voltage range: 207 VÃAC ... 253 VÃAC (20Ã°C) Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: approx. 16 mA Typical response time: 5 ms ... 15 ms Typical release time range: 15 ms ... 25 ms Protective circuit: Decoupling diodes; Decoupling diodes Capacitor; Capacitor Operating voltage display: LED red Coil resistance: 19.5 kÃ© Nominal power consumption: approx. 1 VA
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 VÃAC 110 VÃDC Limiting continuous current: 3 A Maximum inrush current: 5 A Interrupting rating (ohmic load) max.: 750 VA
Connection data	Coil side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Contact side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Width: 45 mm Height: 75 mm Depth: 82.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: DINÃVDEÃ0110b, Gr. C for 250 V DC DINÃENÃ50178/VDEÃ0160 (in relevant parts)
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
