| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |

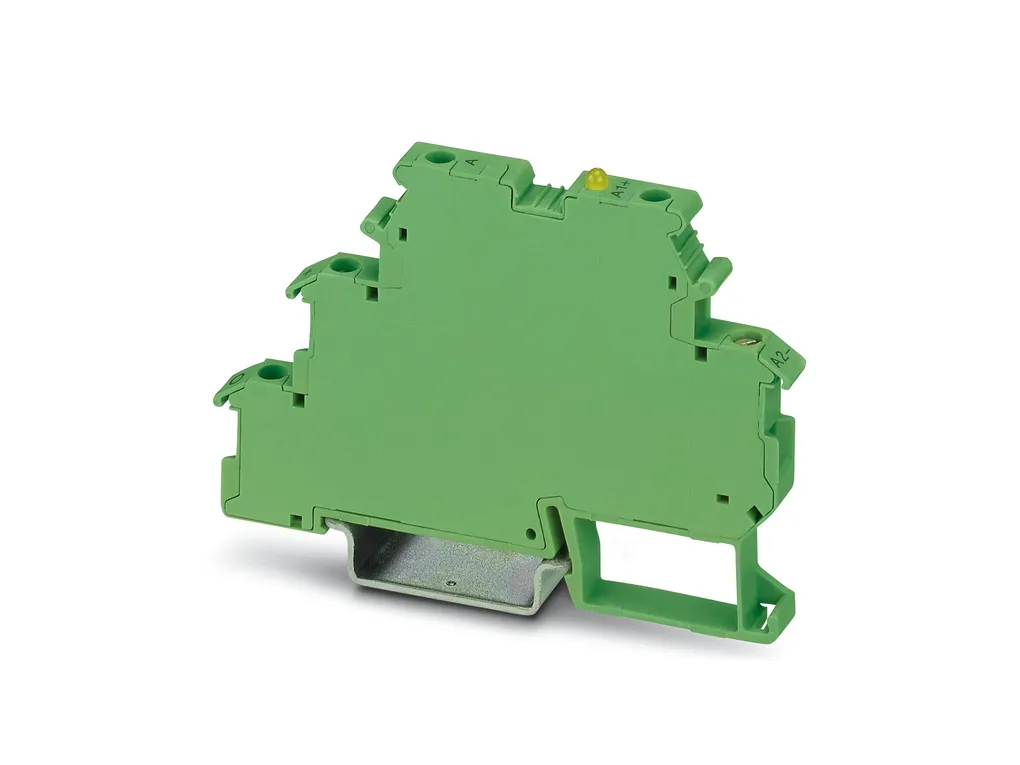

| Product properties | Product type: Relay Module Product family: EMG Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 5x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.5 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact) |
| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 21.6 VÃDC ... 26.4 VÃDC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 21 mA Typical response time: 9 ms Typical release time: 10 ms Protective circuit: Reverse polarity protection; Polarity protection diode Freewheeling diode; Freewheeling diode Operating voltage display: Yellow LED Nominal control voltage: 24 VÃDC Minimum control voltage: 15 VÃDC Maximum control voltage: 35 VÃDC Minimum control current: 0.5 mA Maximum control current: 1 mA Control Nominal control voltage: 24 VÃDC Minimum control voltage: 15 VÃDC Maximum control voltage: 35 VÃDC Minimum control current: 0.5 mA Maximum control current: 1 mA |

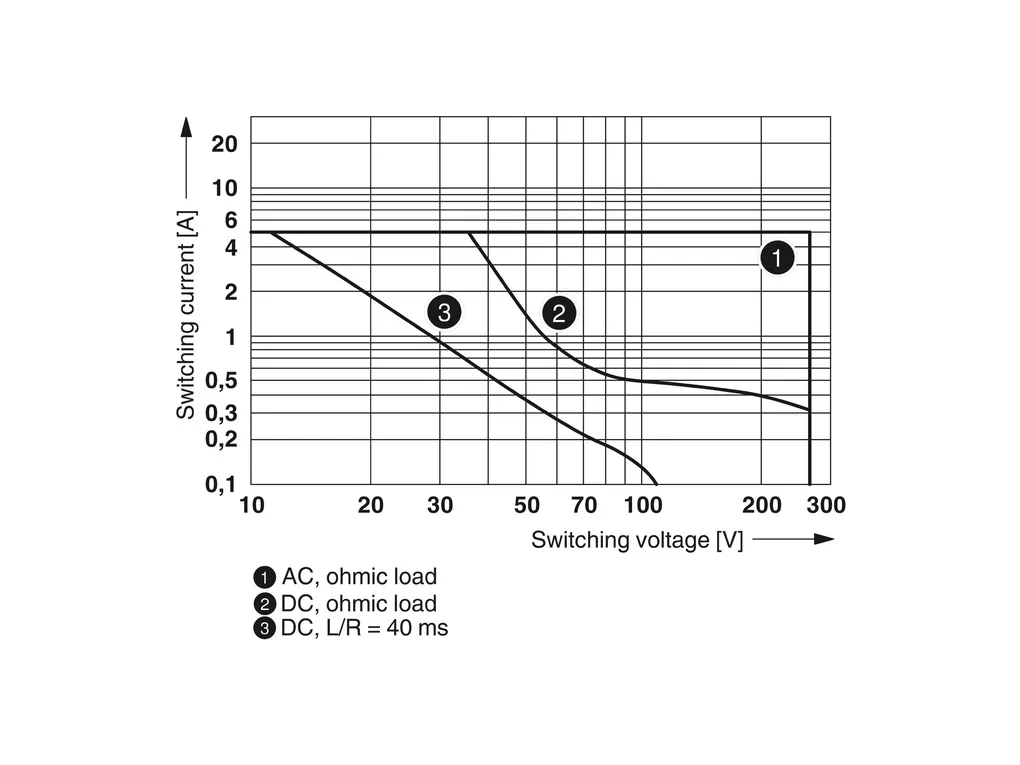

| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 VÃAC 110 VÃDC Limiting continuous current: 5 A Maximum inrush current: 8 A Interrupting rating (ohmic load) max.: 120 W (at 24 V DC) 60 W (at 48 V DC) 50 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 1250 VA (for 250 V AC) |
| Connection data | Coil side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Contact side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 22.5 mm Height: 75 mm Depth: 62.5 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 IEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
