UM 25-D15SUB/B/FRONT/Q - Interface module

VARIOFACE SLIM LINE, with screw connection and D-subminiature socket strip, for assembly at a right angle on NS 35/7.5, 15 positions
Product Code: 2959586 copia - copy
Partner cod.: 2959586 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Interface module
Number of positions: 15
Insulation characteristics
Insulation: Functional insulation
Insulation characteristics: Air clearances and creepage distances
Insulation: Functional insulation
Overvoltage category: II
Pollution degree: 2
Electrical propertiesOperating voltage (AC): ≤ 30 VÂAC
Operating voltage (DC): ≤ 60 VÂDC
Current (per branch): ≤ 2.5 A
Current (Total current): ≤ 37.5 A
Air clearances and creepage distances
Rated insulation voltage: 125 V
Rated surge voltage: 1.2 kV (1.2/50 μs)

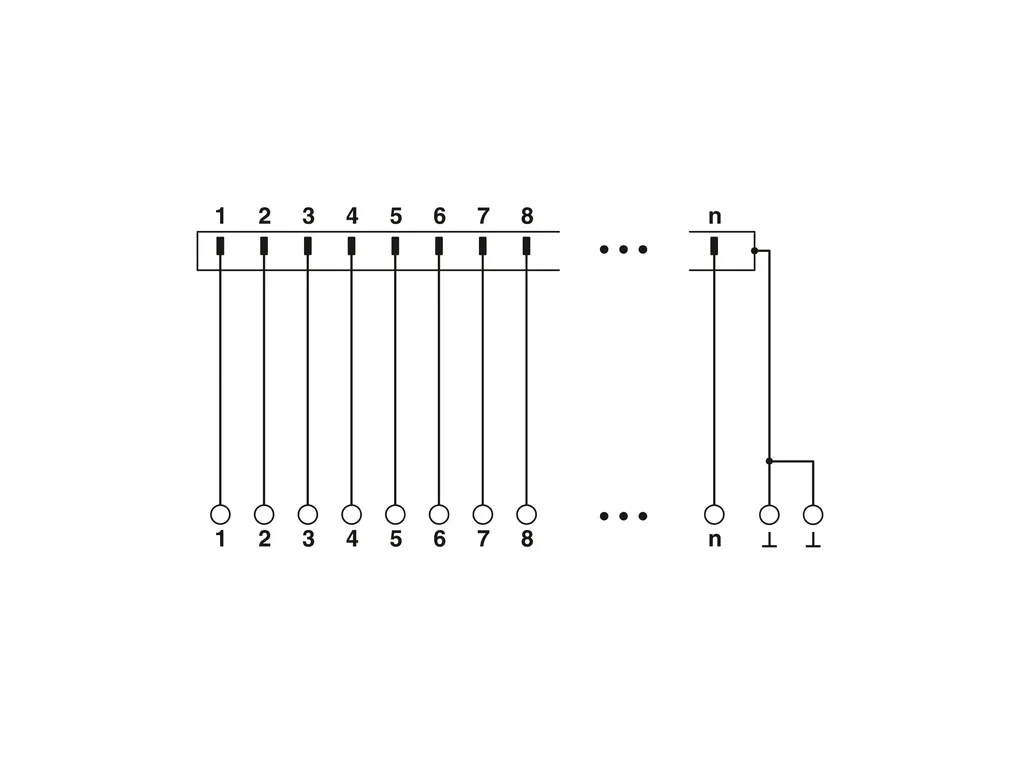

Connection dataConnectionÂ1 (control level)
Connection in acc. with standard: IEC 60807-2
Connection method: D-SUB socket strip
Screw thread: UNC 4-40
Number of connections: 1
Number of positions: 15
Insertion/withdrawal cycles: > 500
Pitch: 2.74 mm
ConnectionÂ2 (field level)
Connection method: Screw connection
Stripping length: 8 mm
Screw thread: M3
Number of positions: 16
Conductor cross section rigid: 0.2 mm² ... 2.5 mm²
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section AWG: 24 ... 14
SignalingStatus display present: No
DimensionsItem dimensions
Width: 25 mm
Height: 147 mm
Depth: 46.49 mm
Material specificationsHousing insulation material: PVC
Environmental and real-life conditionsAmbient conditions
Degree of protection (Module): IP20
Degree of protection (Installation location): ≥ IP54
Ambient temperature (operation): -20°C ... 50°C
Ambient temperature (storage/transport): -20°C ... 70°C
Altitude: ≤ 2000 m
ApprovalsUKCA
Certificate: UKCA-compliant
Standards and regulationsAir clearances and creepage distances
Standards/regulations: ENÂIEC 60664-1
MountingMounting type: DIN rail mounting
Mounting position: any
NotesGeneral: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Application_note_00005.pdf

Manufacturer_declaration_00645.pdf

Manufacturer_declaration_01578.pdf

Product_information_00033.pdf

Technical_drawing_41341.pdf
