2960261 PHOENIX CONTACT -

Product properties	Product type: Single relay Operating mode: 100% operating factor Mechanical service life: approx. 5x 10⁷ cycles Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.91 W Test voltage (Winding/contact): 2 kV AC (50ÃHz, 1Ãmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2 kV AC (50ÃHz, 1Ãmin., changeover contact/changeover contact)
Input data	Coil side Nominal input voltage U_N: 24 VÃDC Input voltage range: 18.7 VÃDC ... 36 VÃDC Input voltage range in reference to U_N: see diagram Drive and function: monostable Drive (polarity): non-polarized Typical input current at U_N: 38 mA Typical response time: 13 ms Typical release time: 8 ms Coil resistance: 630 Ã© Ã±15Ã%

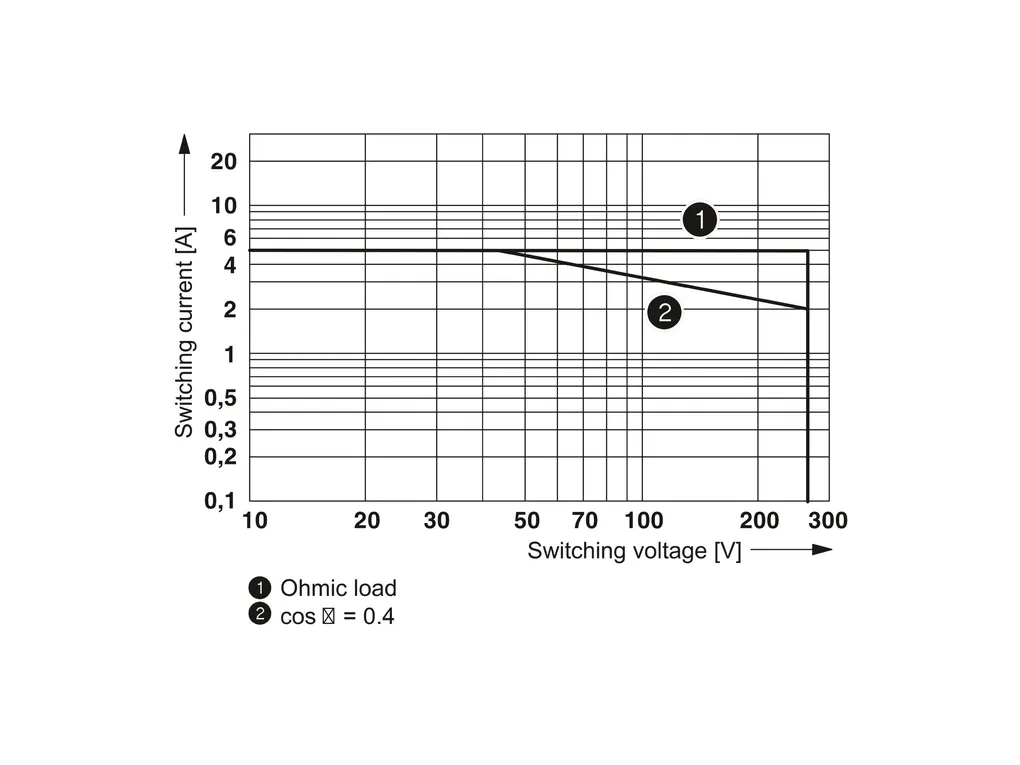

Output data	Switching Contact switching type: 4 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 250 VÃAC 125 VÃDC Minimum switching voltage: 1 V Limiting continuous current: 5 A Maximum inrush current: 12 A (15 ms) Min. switching current: 1 mA Interrupting rating (ohmic load) max.: see diagram 1250 VA (for 250 V AC)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -55°C ... 70°C Ambient temperature (storage/transport): -55°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 IEC 60664A DINÃVDEÃ0110
