| Product properties | Product type: Single relay Operating mode: 100% operating factor Mechanical service life: 3x 107 cycles Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 3 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.41 W Test voltage (Winding/contact): 5 kV AC (50ÃHz, 1Ãmin., winding/contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV |
| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 19.2 VÃDC ... 54 VÃDC Input voltage range in reference to UN: see diagram Drive and function: monostable Drive (polarity): non-polarized Typical input current at UN: 17 mA Typical response time: 8 ms Typical release time: 3 ms Coil resistance: 1440 é ñ10Ã% (20ðC) |
| Output data | Switching Contact switching type: 1 N/O contact Type of switch contact: Single contact Contact material: AgSnO Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (100 mA) Limiting continuous current: 16 A Maximum inrush current: 80 A (20Ãms) 130 A (peak, at capacitive load, 230 V AC, 24 üF) Min. switching current: 100 mA (at 12 V DC) Interrupting rating (ohmic load) max.: 384 W (at 24 V DC) 58 W (at 48 V DC) 48 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 4000 VA (for 250 V AC) Switching capacity min.: 1200 mW Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 6 A (at 24 V, AC15) 6 A (at 120 V, AC15) 6 A (at 250 V, AC15) Motor load according to UL 508: 1/2ÃHP, 120ÃVÃAC (N/O contact) 1ÃHP, 250ÃVÃAC (N/O contact) |
| Connection data | Connection method: Plug / solder connection |

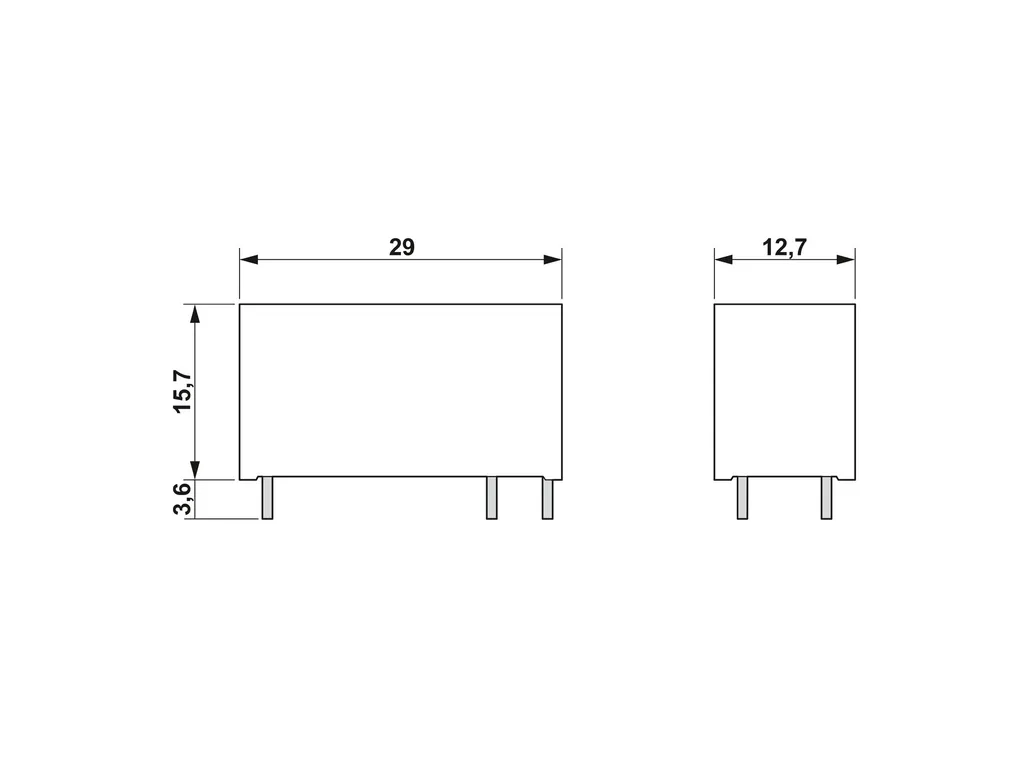

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/123c891effd42443823545fef3d6edf2/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 15.7 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: RT II Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: ENÃ50178 ENÃ61810-1 |
| Mounting | Mounting type: Plug-in mounting Assembly instructions: Can be aligned without spacing (> 70°C ââ°¥ 2.5 mm) Mounting position: any |
