2962609 PHOENIX CONTACT -

Product properties	Product type: Interface module Product family: VARIOFACE Number of positions: 40 No. of channels: 32 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 32 Operating voltage (AC): Ã¢Ã¢°¤ 30 VÃAC Operating voltage (DC): Ã¢Ã¢°¤ 60 VÃDC Current (per branch): Ã¢Ã¢°¤ 1 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 Ã¼s) Supported controller ALLEN-BRADLEY SLC 500 Suitable I/O card: 1746 OB 32 1746 OV 32 1746 IB 32 1746 IV 32

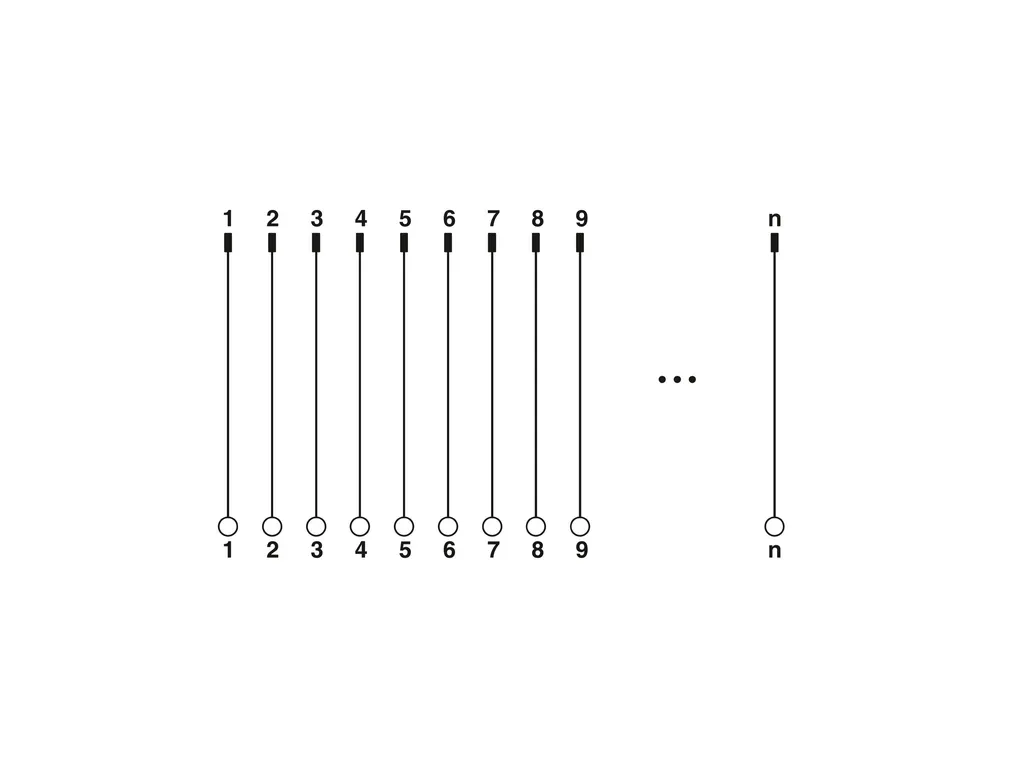

Connection data	ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 40 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 6 mm Screw thread: M3 Number of positions: 40 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 26 ... 16
Signaling	Status display present: No
Dimensions	Item dimensions Width: 125.8 mm Height: 45 mm Depth: 50.5 mm
Material specifications	Housing insulation material: PVC
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	UKCA Certificate: UKCA-compliant
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
