| Notes | General: The housing is open on one side. The appropriate cover is D-DEK 1,5 GN (2716949). Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place. |
| Product properties | Product type: Solid-state relay module Product family: DEK Application: Output function Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Test voltage (Input/output): 2.5 kV AC (50ÃHz, 1Ãmin., input/output) |
| Input data | Nominal input voltage UN: 5 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 4 VÃDC ... 6 VÃDC Switching threshold "0" signal in reference to UN: ââ°¤ 0.4 Switching threshold "1" signal in reference to UN: ââ°¥ 0.8 Typical input current at UN: 10.2 mA Typical response time: < 10 ms Typical turn-off time: < 10 ms Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Transmission frequency: 10 Hz |

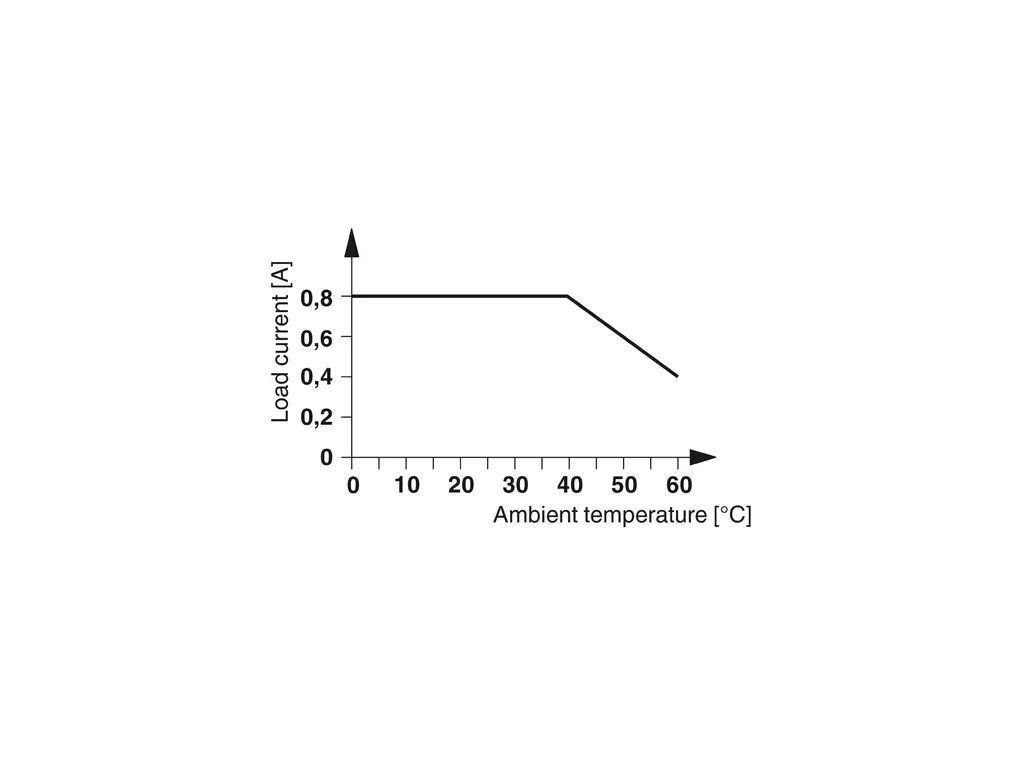

| Output data | Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 10 VÃAC ... 253 VÃAC (50/60ÃHz) Limiting continuous current: 0.8 A (see derating curve) Maximum inrush current: 30 A (tÃ=Ã10Ãms) Min. load current: 10 mA Leakage current: 1.2 mA Surge current: 30 A (tÃ=Ã10Ãms) Phase angle cos phi min: 0.5 Max. load value: 4.5 A2s Peak offstate voltage: 600 V (Periodic peak reverse voltage) Voltage drop at max. limiting continuous current: ââ°¤ 1 V Output circuit: 2-conductor floating, zero voltage switch Protective circuit: RCV circuit; RCV circuit |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 56 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
