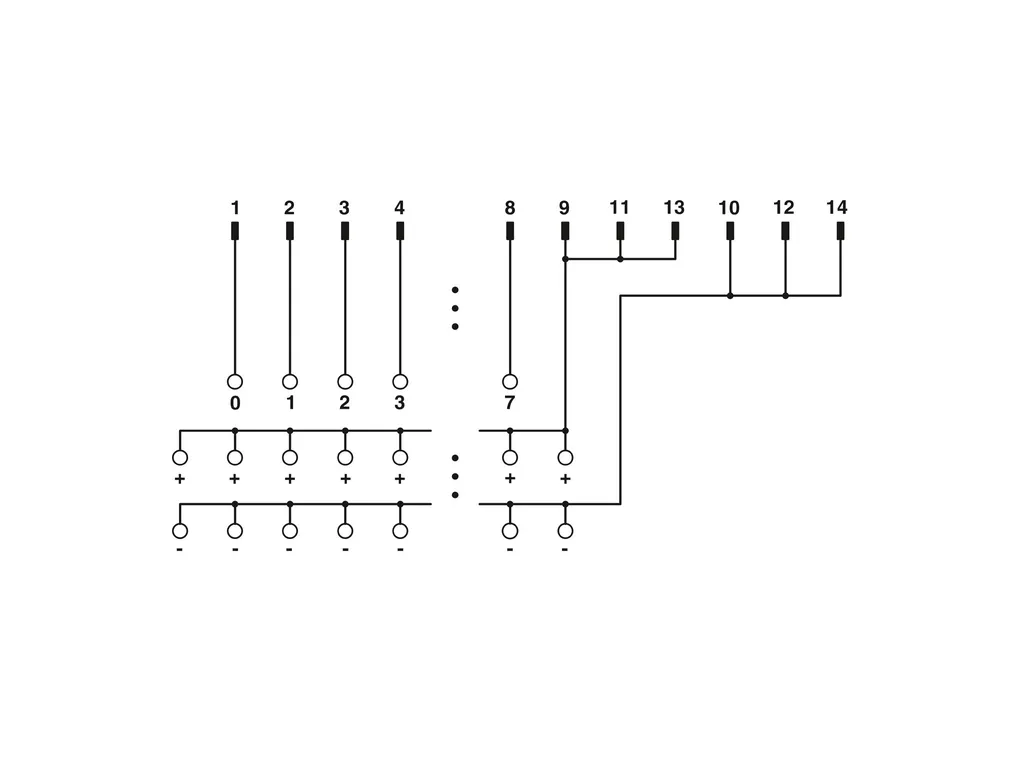

| Product properties | Product type: Interface module Product family: VARIOFACE Number of positions: 14 No. of channels: 8 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | No. of channels: 8 Operating voltage (DC): ââ°¤ 60 VÃDC Current (per branch): ââ°¤ 1 A Current (Voltage supply): ââ°¤ 3 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 üs) Supported controller ABB S800 I/O Suitable I/O card: DI810 DI811 DI814 DI818 DI830 DI831 DI840 DO810 DO814 DO818 DO840 Supported controller ALLEN-BRADLEY ControlLogix Suitable I/O card: 1756-IB32 1756-OB32 1756-IB16 1756-IC16 1756-OB16E Supported controller ALLEN-BRADLEY PLC 5 Suitable I/O card: 1771 IBN 1771 OBN Supported controller ALLEN-BRADLEY SLC 500 Suitable I/O card: 1746 OB16 1746 OV16 1746 OG16 1746 IA16 1746 ITB16 1746 IN16 1746 IV16 1746 ITV16 1746 IG16 1746 OB 32 1746 OV 32 1746 IB 32 1746 IV 32 1746 IB16 Supported controller GE-FANUC 90-30 Suitable I/O card: IC693 MDL241 IC693 MDL634 IC693 MDL645 IC693 MDL646 IC693 MDL732 IC693 MDL733 IC693 MDL740 IC693 MDL741 IC693 MDL742 Supported controller GE-FANUC RX3i Suitable I/O card: IC694MDL754 IC694MDL660 Supported controller HONEYWELL Experion PKS C200 Suitable I/O card: TC-IDD 321 TC-ODD 321 Supported controller MITSUBISHI MELSEC L Suitable I/O card: LX41C4 LX42C4 LY41NT1P LY42NT1P LY41PT1P LY42PT1P Supported controller MITSUBISHI MELSEC Q Suitable I/O card: QX81 QY81P QX41 QX41-S1 QX42 QX42-S1 QX71 QX72 QY41P QY42P QY71 QH42P QX82 QX82-S1 QY82P Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM Suitable I/O card: DDI 353 DDI 853 DAI 353 DAI 453 DDO 353 Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: CPU 313C-2DP CPU 314C-2DP CPU 314C-2PtP 6ES7321-1BH02-0AA0 6ES7321-1BL00-0AA0 6ES7322-1BH01-0AA0 6ES7322-1BL00-0AA0 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0 6ES7321-1BH10-0AA0 6ES7322-1BH10-0AA0 CPU 313C CPU 313C-2PtP Supported controller SIEMENS S7-400 Suitable I/O card: 6ES7421-1BL01-0AA0 6ES7422-1BL00-0AA0 6ES7422-7BL00-0AB0 |
| Connection data | ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Spring-cage connection Stripping length: 8 mm Number of positions: 30 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 14 |
| Signaling | Status display present: No |
| Dimensions | Item dimensions Width: 75 mm Height: 45 mm Depth: 60.7 mm |
| Material specifications | Housing insulation material: PVC |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UKCA Certificate: UKCA-compliant |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
