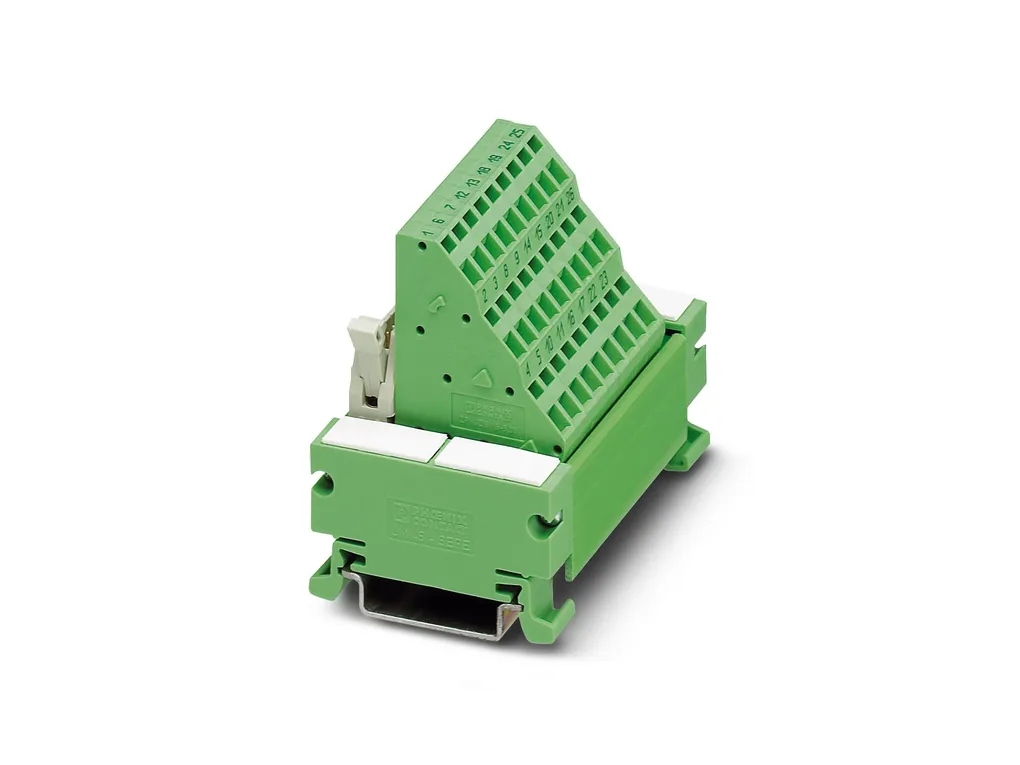

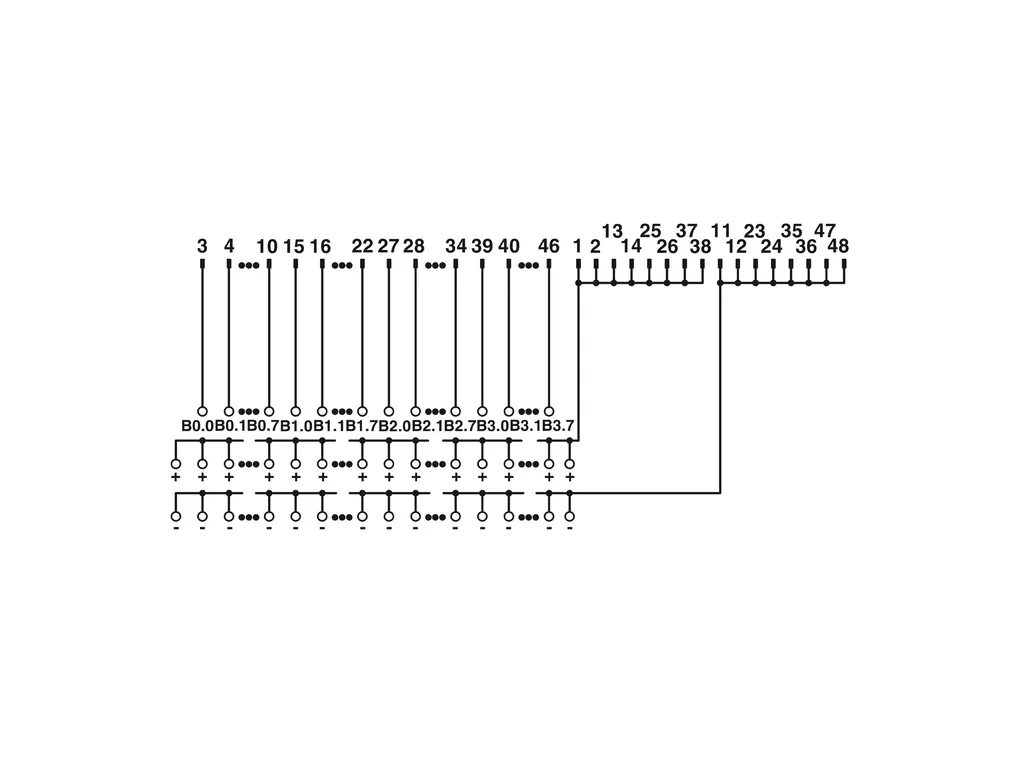

| Product properties | Product type: Interface module Product family: VARIOFACE Number of positions: 50 No. of channels: 32 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | No. of channels: 32 Operating voltage (DC): ââ°¤ 60 VÃDC Current (per branch): ââ°¤ 1 A Current (Voltage supply per byte): ââ°¤ 2 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 üs) Supported controller SIEMENS S7-400 Suitable I/O card: 6ES7421-1BL01-0AA0 6ES7422-1BL00-0AA0 6ES7422-7BL00-0AB0 Supported controller ALLEN-BRADLEY ControlLogix Suitable I/O card: 1756-IB32 1756-OB32 Supported controller ALLEN-BRADLEY PLC 5 Suitable I/O card: 1771 IBN 1771 OBN Supported controller HONEYWELL Experion PKS C200 Suitable I/O card: TC-IDD 321 TC-ODD 321 Supported controller MITSUBISHI MELSEC L Suitable I/O card: LX41C4 LX42C4 LY41NT1P LY42NT1P LY41PT1P LY42PT1P Supported controller MITSUBISHI MELSEC Q Suitable I/O card: QX81 QY81P QX41 QX41-S1 QX42 QX42-S1 QX71 QX72 QY41P QY42P QY71 QH42P QX82 QX82-S1 QY82P Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM Suitable I/O card: DDI 353 DDI 853 DAI 353 DAI 453 DDO 353 Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: CPU 313C-2DP CPU 314C-2DP CPU 314C-2PtP 6ES7321-1BL00-0AA0 6ES7322-1BL00-0AA0 6ES7323-1BL00-0AA0 CPU 313C CPU 313C-2PtP Supported controller GE-FANUC RX3i Suitable I/O card: IC694MDL754 IC694MDL660 |
| Connection data | ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 50 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Spring-cage connection Stripping length: 8 mm Number of positions: 102 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 14 |
| Signaling | Status display present: No |
| Dimensions | Item dimensions Width: 195 mm Height: 45 mm Depth: 60.6 mm |
| Material specifications | Housing insulation material: PVC |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UKCA Certificate: UKCA-compliant |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
