| Notes | General: Separating plate PLC-ATP must be installed for voltages larger than 250ÃV (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... |
| Product properties | Product type: Relay Module Product family: PLC-INTERFACE Application: Universal Operating mode: 100% operating factor Mechanical service life: 2x 107 cycles |
| Electrical properties | Maximum power dissipation for nominal condition: 0.42 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact) Insulation characteristics: Coil/contact Rated insulation voltage: 250 V Rated impulse withstand voltage: 6 kV Overvoltage category: III Degree of pollution: 3 |

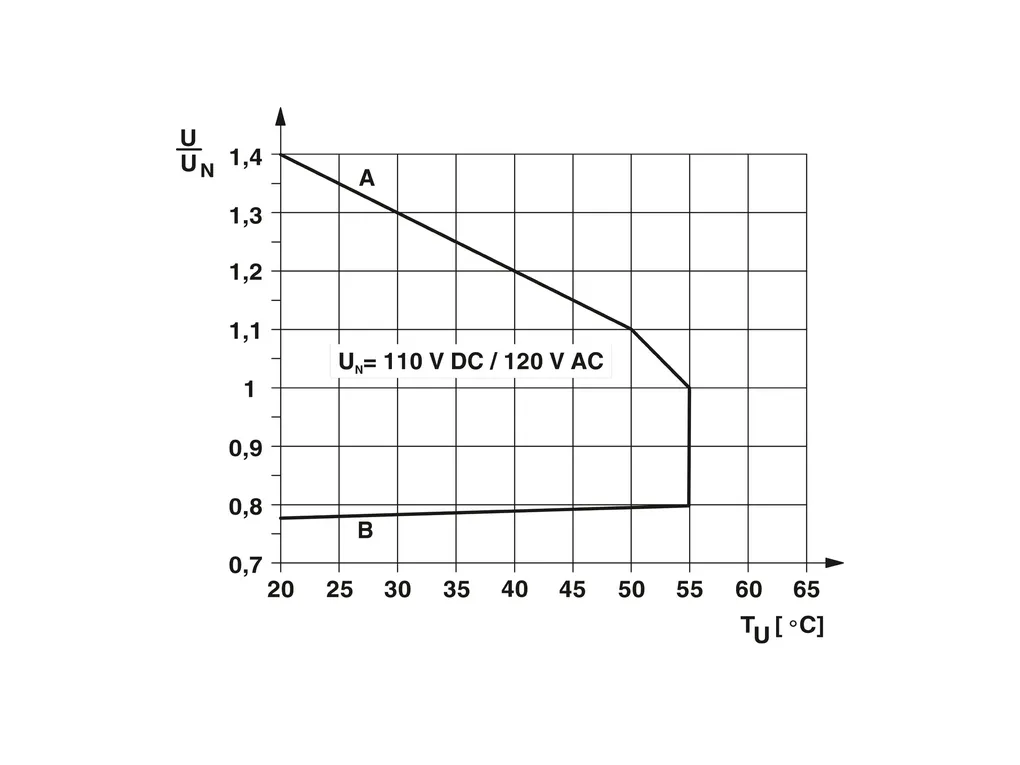

| Input data | Coil side Nominal input voltage UN: 120 VÃAC 110 VÃDC Input voltage range: 93.6 VÃAC ... 168 VÃAC (20ðC) 85.8 VÃDC ... 154 VÃDC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 3.5 mA (at UN = 120 V AC) 3 mA (at UN = 110 V DC) Typical response time: 6 ms Typical release time: 15 ms Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgSnO Maximum switching voltage: 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) Minimum switching voltage: 5 V (100 mA) Limiting continuous current: 6 A Maximum inrush current: 10 A (4 s) Min. switching current: 10 mA (12ÃV) Short-circuit current: 200 A (conditional short-circuit current) Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC) Output fuse: 4 A gL/gG NEOZED Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 94 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Ambient temperature (operation): -40°C ... 55°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
