| Product properties | Product type: Single solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.17 W Test voltage (Input/output): 2.5 kV (50ÃHz, 1Ãmin., input/output) |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal, voltage: ââ°¤ 10 V Switching threshold "1" signal voltage: ââ°¥ 16 V Typical input current at UN: 7 mA Typical response time: 20 õs (at UN) Typical turn-off time: 300 õs (at UN) Transmission frequency: 300 Hz |

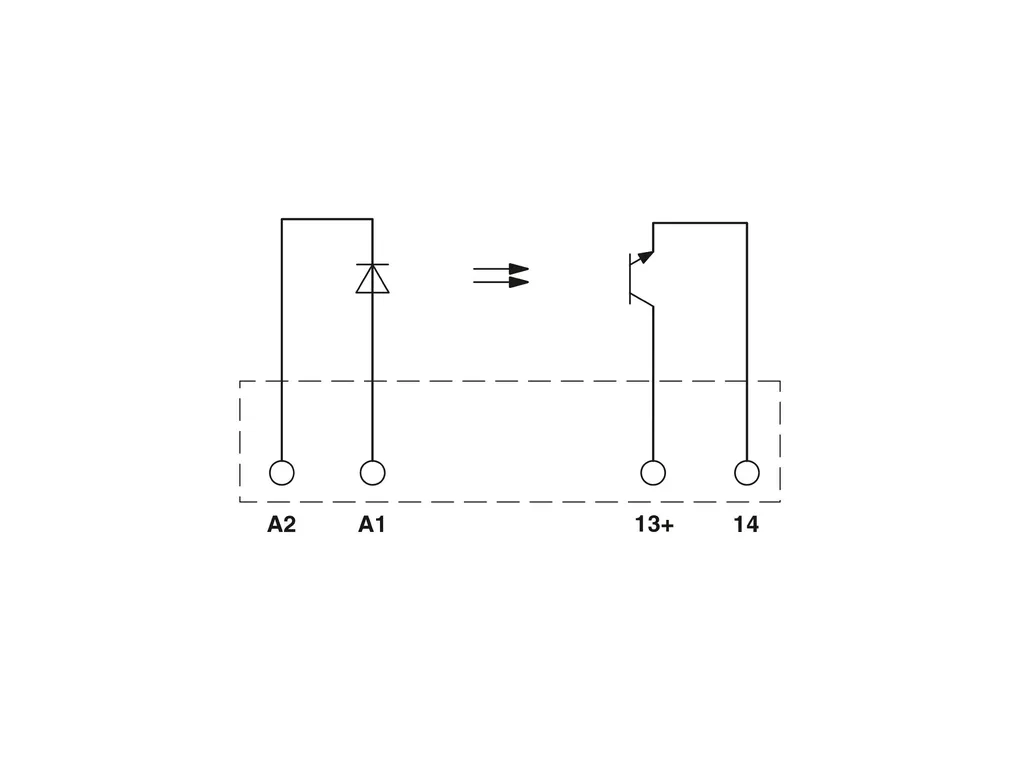

| Output data | Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 3 VÃDC ... 48 VÃDC Limiting continuous current: 100 mA Voltage drop at max. limiting continuous current: ââ°¤ 1 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection Surge protection |
| Dimensions | Width: 5 mm Height: 28 mm Depth: 15 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: RT III Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations Standards/regulations: IEC 60664 ENÃ50178 |
| Mounting | Assembly instructions: in rows with zero spacing Mounting position: any |
