| Product properties | Product type: Single solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.07 W Test voltage (Input/output): 2.5 kV (50ÃHz, 1Ãmin., input/output) |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal, voltage: ââ°¤ 5 V Switching threshold "1" signal voltage: ââ°¥ 10 V Typical input current at UN: 6 mA Typical response time: 10 ms (at UN) Typical turn-off time: 10 ms (at UN) Transmission frequency: 10 Hz |
| Output data | Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 24 VÃAC ... 253 VÃAC Limiting continuous current: 0.75 A (see derating curve) Maximum inrush current: 30 A (10 ms) Min. load current: 10 mA Leakage current: < 1 mA Phase angle cos phi min: 0.5 Max. load value: 4.5 A2s Voltage drop at max. limiting continuous current: < 1 V Output circuit: 2-conductor floating, zero voltage switch Protective circuit: RCV circuit; RCV circuit |

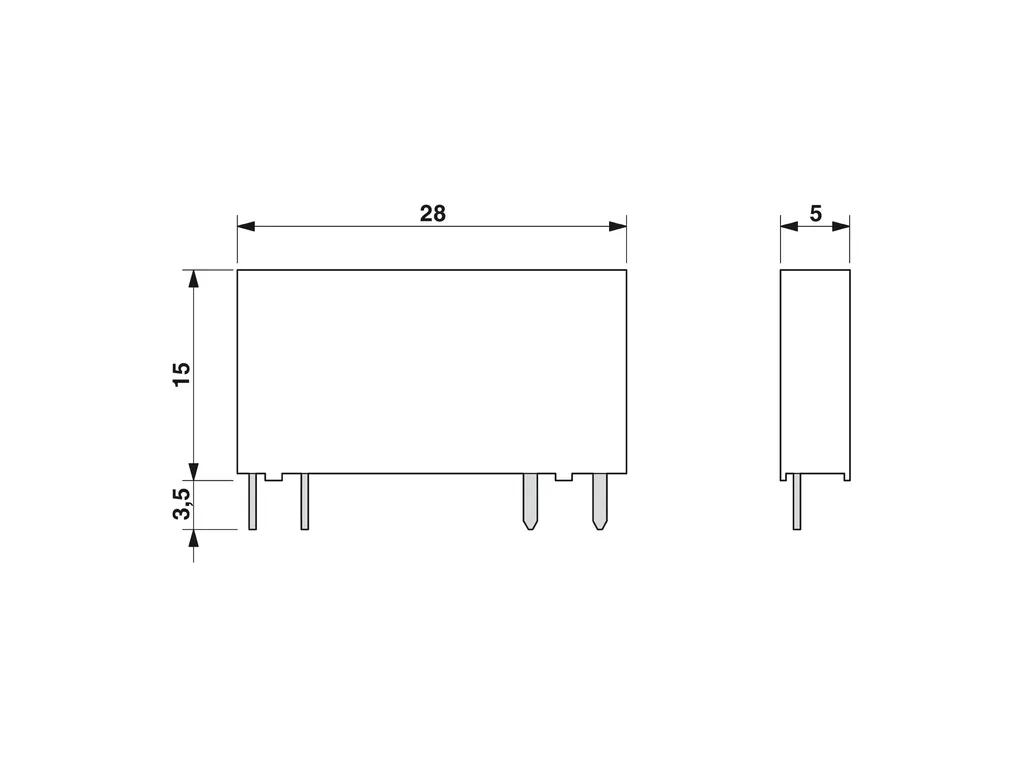

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/260a0c446066a14fa55788300101ccb8/-S204x204-FJPG Width: 5 mm Height: 28 mm Depth: 15 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: RT III Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations Standards/regulations: IEC 60664 ENÃ50178 |
| Mounting | Assembly instructions: in rows with zero spacing Mounting position: any |
