| Product properties | Product type: Interface module Product family: VARIOFACE Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Operating voltage range: 19.2 VÃDC ... 26.4 VÃDC Current (per branch): ââ°¤ 1 A Current (Voltage supply +,- IDC/FLK): ââ°¤ 3 A Current (Terminal block +,-): ââ°¤ 8 A Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV (1.2/50 üs) Supported controller SIEMENS S7-400 Suitable I/O card: 6ES7422-1BL00-0AA0 6ES7422-7BL00-0AB0 Supported controller GE-FANUC 90-30 Suitable I/O card: IC693 MDL732 IC693 MDL740 IC693 MDL742 Supported controller ALLEN-BRADLEY ControlLogix Suitable I/O card: 1756-OB32 1756-OB16E Supported controller ALLEN-BRADLEY PLC 5 Suitable I/O card: 1771 OBN Supported controller ALLEN-BRADLEY SLC 500 Suitable I/O card: 1746 OB16 1746 OB 32 Supported controller HONEYWELL Experion PKS C200 Suitable I/O card: TC-ODD 321 Supported controller MITSUBISHI MELSEC Q Suitable I/O card: QY81P Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: CPU 313C-2DP CPU 314C-2DP CPU 314C-2PtP 6ES7322-1BH01-0AA0 6ES7322-1BL00-0AA0 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0 CPU 313C CPU 313C-2PtP Supported controller ABB S800 I/O Suitable I/O card: DO810 DO840 Supported controller EMERSON DeltaV Suitable I/O card: VE4002S1T1B3 VE4002S1T2B3 VE4002S1T2B3 Series 2 VE4002S1T2B6 Supported controller GE-FANUC RX3i Suitable I/O card: IC694MDL754 |

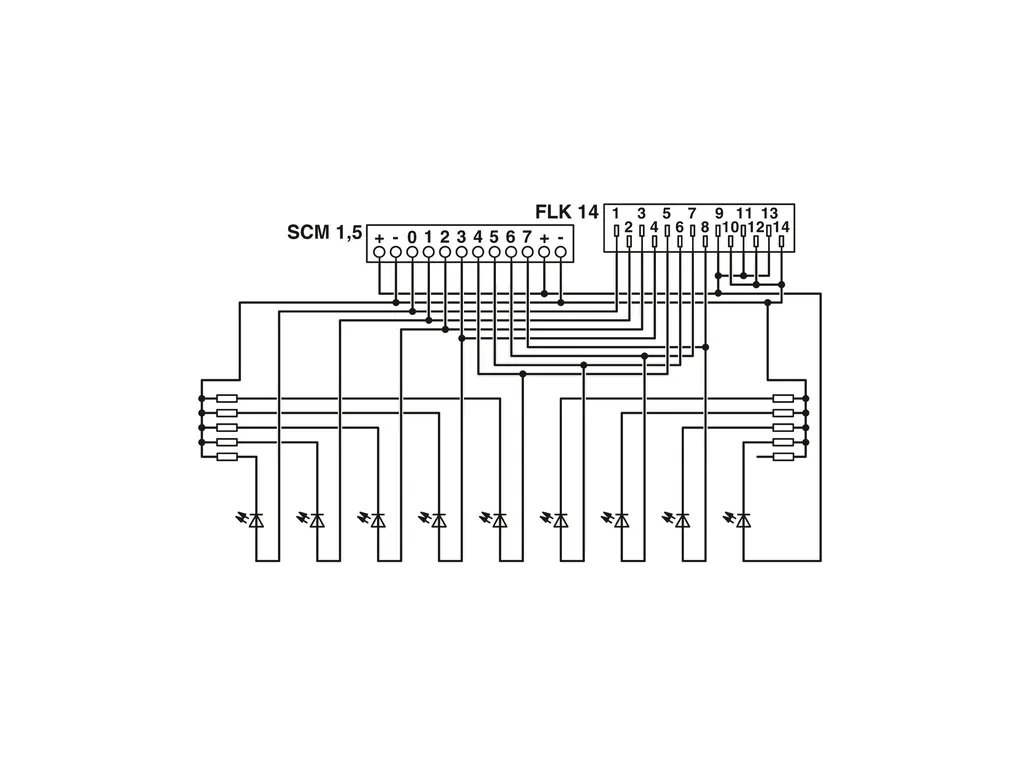

| Connection data | ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of positions: 12 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 |
| Signaling | Status display: Yellow LED Status display present: Yes Operating voltage display: Green LED |
| Dimensions | Item dimensions Width: 74.8 mm Height: 50.02 mm Depth: 50.9 mm |
| Material specifications | Housing insulation material: PVC |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UKCA Certificate: UKCA-compliant |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
