2968373 PHOENIX CONTACT -

Product properties	Product type: Interface module No. of channels: 32 Operating mode: 100% operating factor Mechanical service life: 3x 10⁷ cycles Compatible components: Miniature switching relay, REL-MR-24DC/21HC With components: yes Insulation characteristics Overvoltage category: III Pollution degree: 2

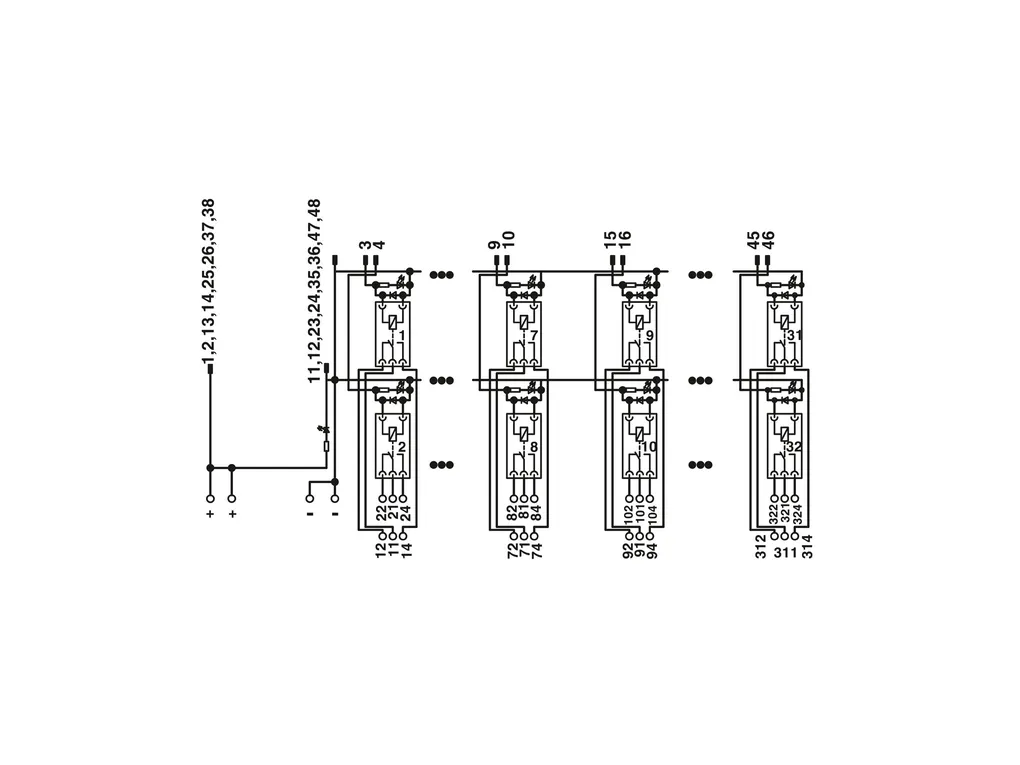

Electrical properties	No. of channels: 32 Rated insulation voltage: 300 VÃAC Rated surge voltage: 4 kV (Basic insulation between output contact current paths) 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths) Supported controller SIEMENS S7-1500 Suitable I/O card: 6ES7522-1BL00-0AB0 6ES7522-1BL01-0AB0 Supported controller SIEMENS S7-400 Suitable I/O card: 6ES7422-1BL00-0AA0 6ES7422-7BL00-0AB0 Supported controller ALLEN-BRADLEY PLC 5 Suitable I/O card: 1771 OBN Supported controller GE-FANUC RX3i Suitable I/O card: IC694MDL754 Supported controller HONEYWELL Experion PKS C200 Suitable I/O card: TC-ODD 321 Supported controller MITSUBISHI MELSEC L Suitable I/O card: LY41PT1P LY42PT1P Supported controller MITSUBISHI MELSEC Q Suitable I/O card: QY81P QY82P Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM Suitable I/O card: DDO 353 Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: 6ES7322-1BL00-0AA0
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.85 ... 1.1 Input voltage range: 20.4 VÃDC ... 26.4 VÃDC Typical input current at U_N: 18 mA Typical response time: 8 ms Typical release time: 10 ms Protective circuit: Freewheeling diode; Freewheeling diode Operating voltage display: Green LED Status display/channel: Yellow LED
Output data	Compatible components: Miniature switching relay, REL-MR-24DC/21HC Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V AC/DC Limiting continuous current: 5 A Min. switching current: 10 mA Interrupting rating (ohmic load) max.: 120 W (at 24 V DC) 58 W (at 48 V DC) 48 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 1250 VA (for 250 V AC) Error detection (line break / short-circuit): no
Connection data	Controller level Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 50 Pitch: 2.54 mm Field level Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of connections: 96 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Supply Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of connections: 2 Number of positions: 3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Signaling	Status display present: Yes
Dimensions	Width: 271.5 mm Height: 125.5 mm Depth: 62.5 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP00 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: ENÃ61010-2-201 IEC 60664
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
Notes	General: Observe the maximum switching capacity of the relays used Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. The outputs are not suitable for switching different line conductors. The sum of the switching voltages used for adjacent outputs must not exceed the rated insulation voltage value The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e.Ãg., partition plates). For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
