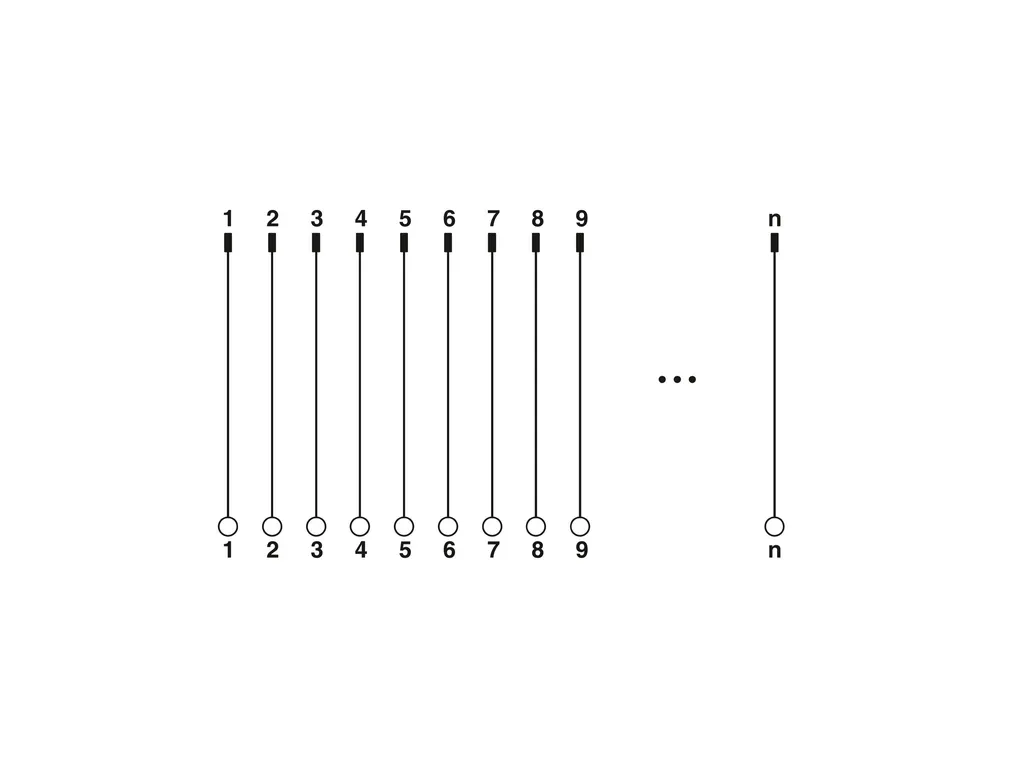

| Product properties | Product type: Interface module Product family: VARIOFACE Number of positions: 40 No. of channels: 2 4 6 8 16 32 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | No. of channels: 24 6 8 16 32 Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Current (per branch): ââ°¤ 1 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 üs) Supported controller ALLEN-BRADLEY SLC 500 Suitable I/O card: 1746 OB 32 1746 OV 32 1746 IB 32 1746 IV 32 |
| Connection data | ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 40 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Spring-cage connection Stripping length: 8 mm Number of positions: 42 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 14 |
| Signaling | Status display present: No |
| Dimensions | Item dimensions Width: 96 mm Height: 45 mm Depth: 60.66 mm |
| Material specifications | Housing insulation material: PVC |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
