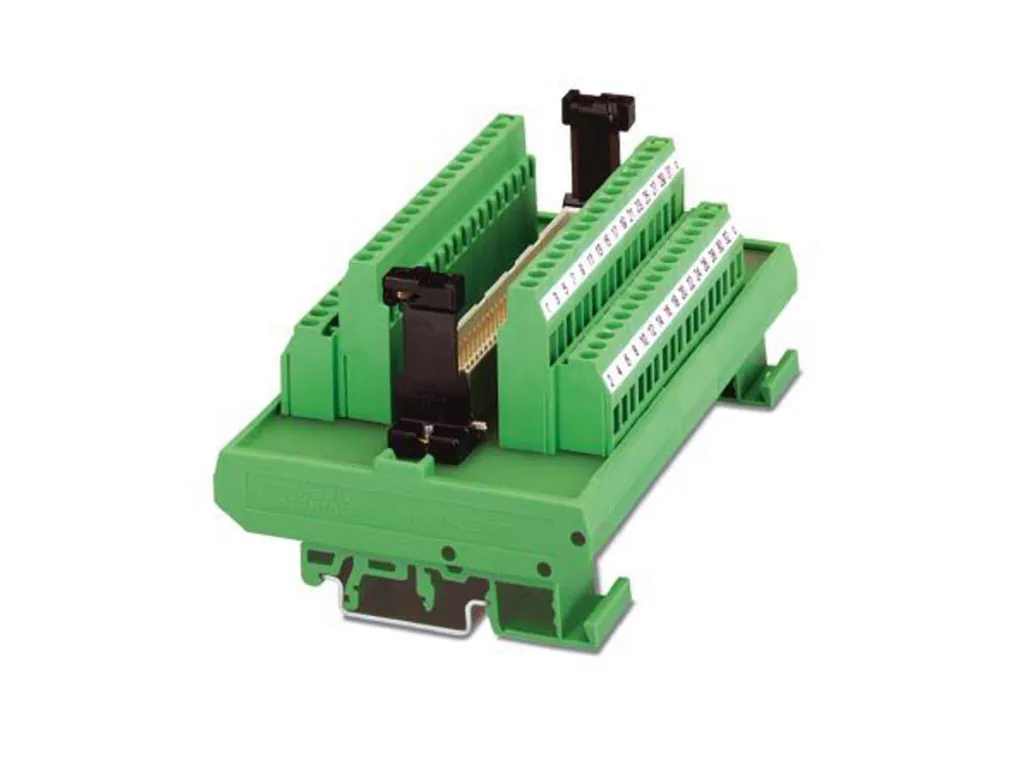

| Product properties | Product type: Interface module Product family: VARIOFACE Number of positions: 56 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Max. permissible operating voltage: 125 V AC/DC Max. permissible current: 1.5 A (per path) Max. permissible total current: 28 A (56 branches with 0.5 A each) Air clearances and creepage distances Rated insulation voltage: 125 V Rated surge voltage: 1.5 kV |
| Connection data | Field level Connection in acc. with standard: IEC / EN Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Controller level Connection method: EDACÃ/ÃELCO pin strip Coding: 1-1 Number of connections: 1 Number of positions: 56 Note: ELCO pin strip type 8016/EDAC pin strip type 516, left |
| Signaling | Status display present: No |

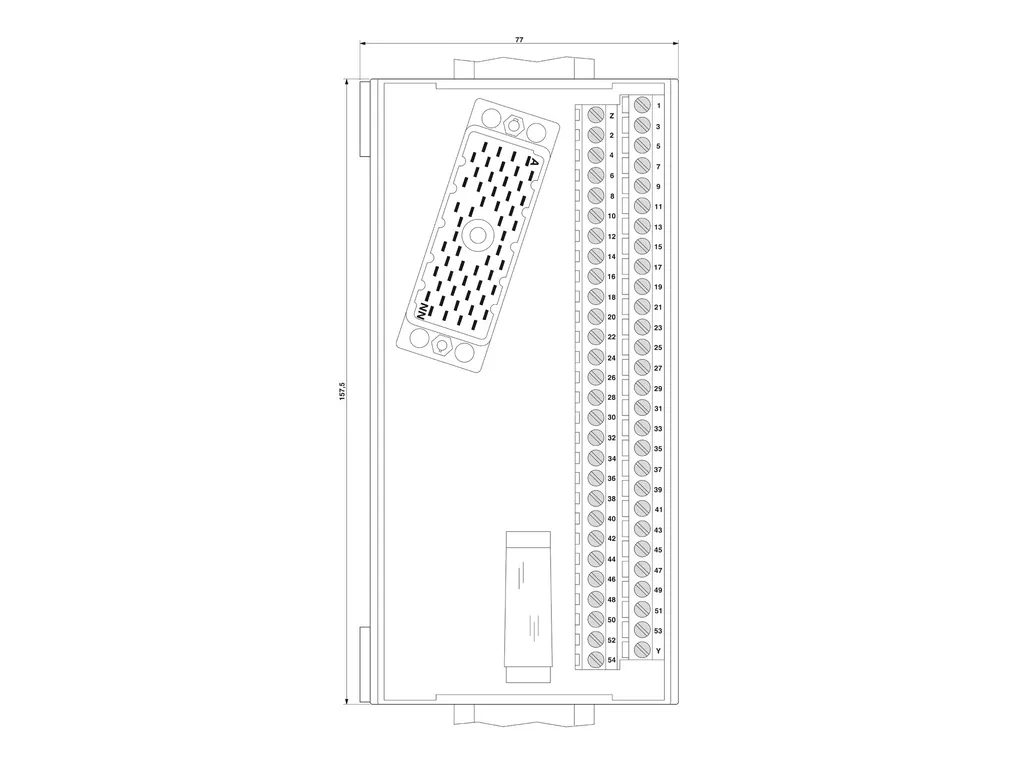

| Dimensions | Item dimensions Width: 157.25 mm Height: 77 mm Depth: 57.37 mm |
| Material specifications | Housing insulation material: Polyamide PA non-reinforced |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃ60664-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
| Notes | General: Basic insulation is maintained against adjacent modules (in the DIN rail direction). Ensure that the supply voltage of the device has a common reference potential. For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
